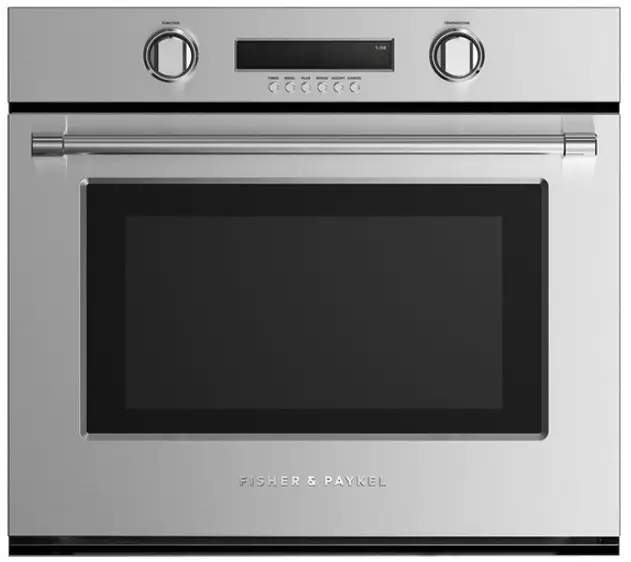

WOSV230N 30-Inch Electric Wall Oven
User Guide
A highlight of the Fisher & Paykel range, this Series 9 oven ensures that every dish you create is cooked to perfection.
- 4.1 cu ft total capacity
- 10 oven functions including Aero™ Pastry and Roast
- High-temperature self-cleaning function breaks down food residue for an easy clean
- Non-tip, full-extension shelves for safe removal of hot dishes

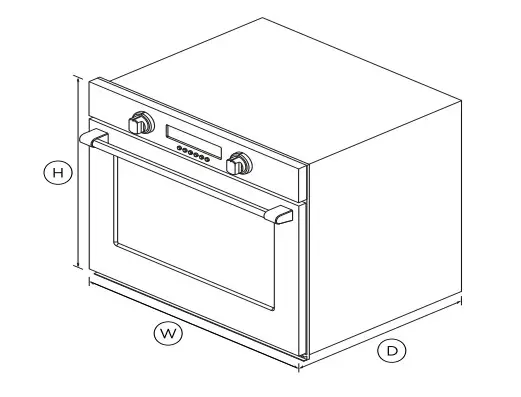

| Height | 27 1/8″ |
| Width | 29 3/4″ |
| Depth | 23 15/16″ |
FEATURES & BENEFITS
Cooking flexibility
This built-in oven has 10 functions with pre-set temperatures, including Roast, Pasty Bake, and Maxi Broil allowing you to use a variety of cooking styles.
Even cooking
A digital microprocessor monitors the temperature to ensure precise heat and a four-way convection system creates even heat distribution throughout the oven, ideal for multi-shelf cooking.
Sized to suit
Designed for multi-shelf cooking, this built-in oven provides 4.1cu.ft of total capacity allowing you to cook the family roast and a pie for dessert.
Self-cleaning
The self-clean function breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth. For best results, wipe down the inside of your oven door before you use the self-clean function.
Information at a glance
Halo-illuminated dials provide information at a glance. White –heating up; orange – the temperature is reached; red – self-cleaning mode. Three halogen lights and the large oven window create excellent visibility of what’s cooking.
Safe and sound
The CoolTouch door with triple glazing and cooling system is safe to touch from the outside, protecting your hands and the surrounding cabinetry.
SPECIFICATIONS
| Accessories | |
| Full-extension sliding shelves | 3 sets |
| Roast dish, splatter guard and | 1 |
| Temperature probe (included) | 1 |
| Capacity | |
| Shelf positions | 8 |
| Total capacity | 4.1cu ft |
| Cleaning | |
| Pyrolytic self-clean | • |
Controls
| QUICK REFERENCE GUIDE > WOSV230_N | |
| Concealed element | • |
| Electric circuit | 4 wire |
| Halogen lights | • |
| Sabbath mode | • |
| True convection oven | • |
| Turbo plus fan controlled | • |
| Functions | |
| Bake | • |
| Broil | • |
| Convection Broil | • |
| Convection bake | • |
| Convection pastry | • |
| Maxi Broil | • |
| Number of functions | 10 |
| Pastry Bake | • |
| Roast | • |
| Self-clean | • |
| True convection | • |
| Warm | • |
| Performance | |
| Broil power | 4400W |
| Convection power | 2500W |
| Power requirements | |
| Rated current | 30A |
| Supply frequency | 60Hz |
| Supply voltage | 120 – 240V |
| Product dimensions | |
| Depth | 23 15/16″ |
| Height | 27 1/8″ |
| Width | 29 3/4″ |
| Safety | |
| ADA compliant | • |
| Full extension sliding shelves | • |
| Warranty | |
| Parts and labor | 2 years |
| SKU | 81832 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
