NEFB42H-BS Element 42 Electric Appliance
Instruction Manual
ELEMENTTM 42 ELECTRIC APPLIANCE
Specifications
| Model I | BTU 1 | Width | Height I | = Depth | Viewing Area | |||
| NEFB42H-BS | 5,000 / 10,000 | Actual | Framing | Actual | Framing | Actual | Framing | 39 7/8 x 25 7/8 |
| 42 1/8 | 41 1/2 | 31 7/8 | 31 1/4 | 14 | 13 3/4 | |||

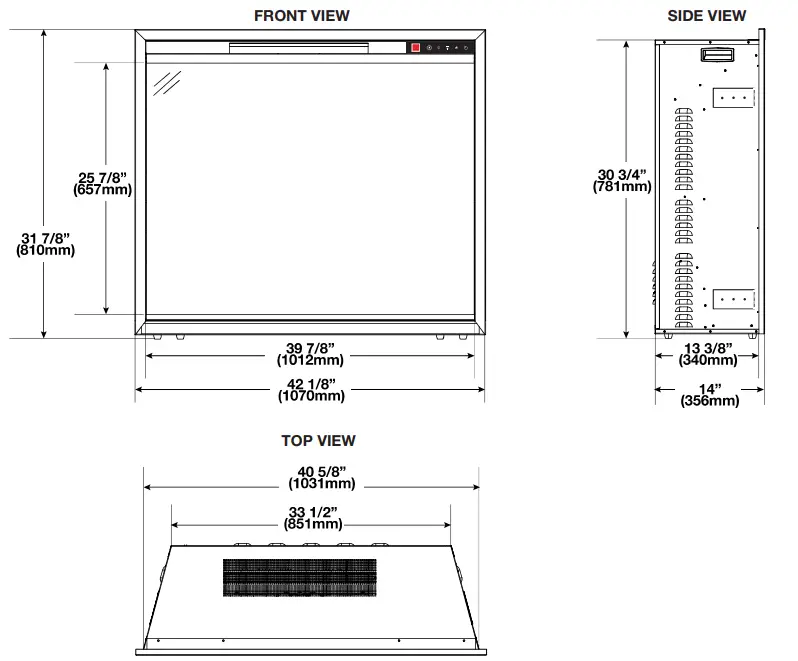

Dimensions

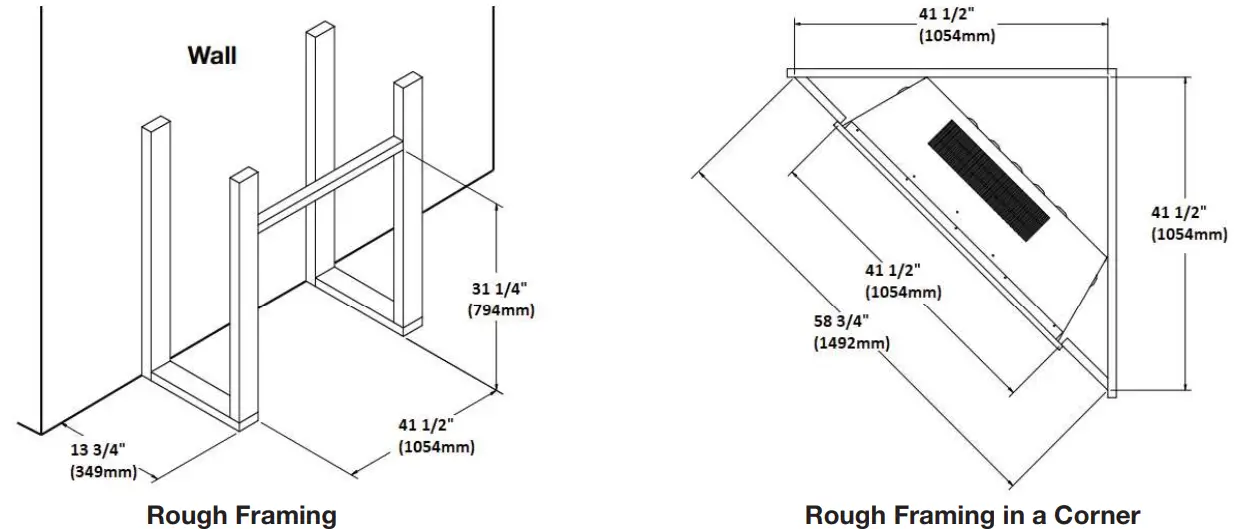

Rough Framing
Product information provided is not complete and is subject to change without notice. Please consult the installation manual for the most up to date installation information.

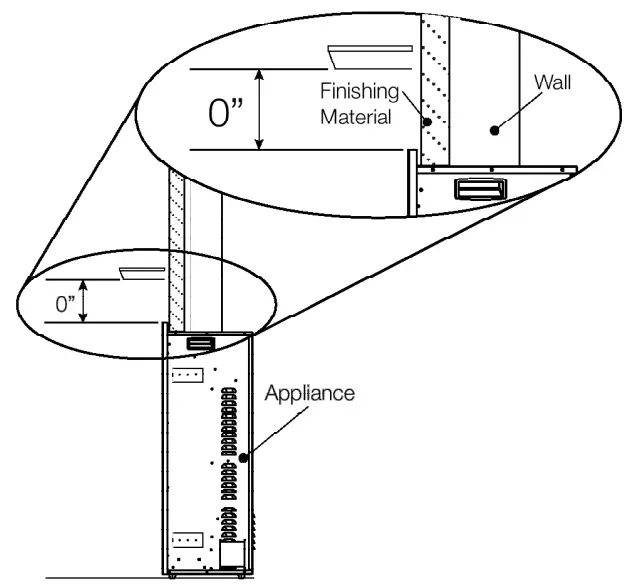

Minimum Mantel Clearances
WARNING
• When using paint or lacquer to finish the mantel, the paint or lacquer must be heat resistant to prevent discolouratior

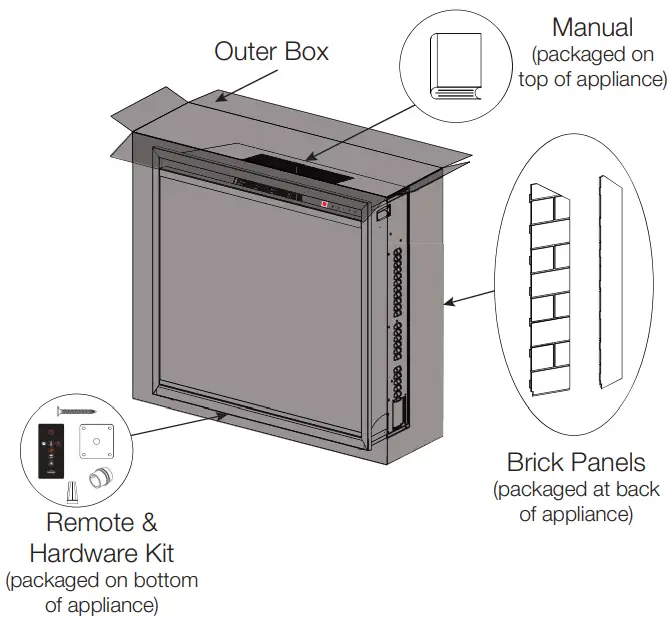

Unpacking & Testing Appliance
Carefully remove the appliance from the box. Prior to installing the appliance, remove all packaging material and test to make sure the appliance operates properly by plugging the power supply cord into a conveniently located 120V, 15 Amp minimum grounded outlet.

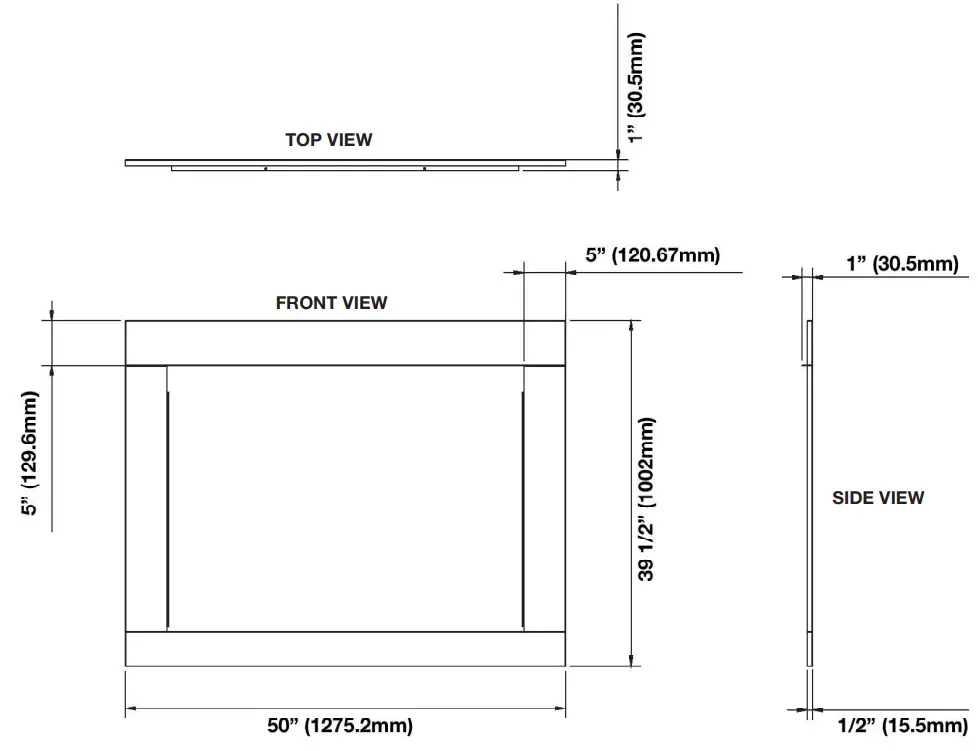

Optional Trim Kit (NEFB42H-BS-TRIM)
