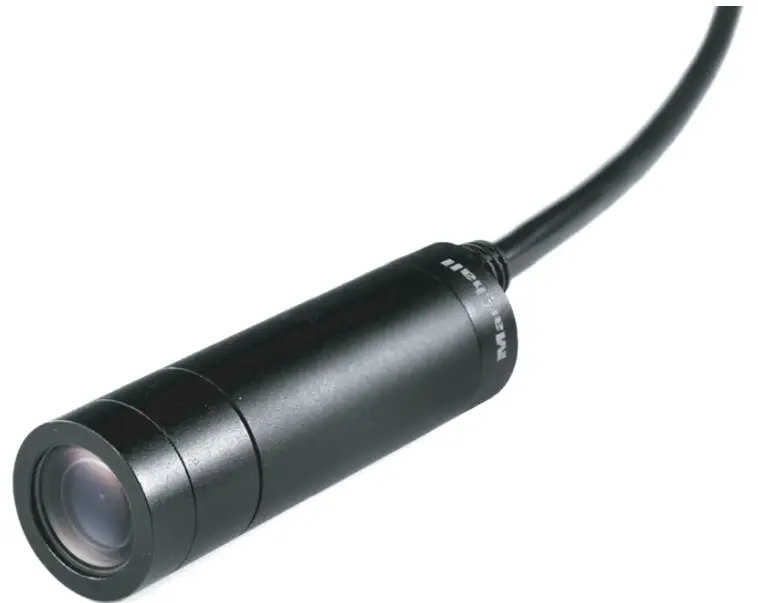

Marshall CV228 Lipstick Camera with 3GSDI User Guide
Precautions
WARNING
Do not use the camera if fumes, smoke or a strange odor is emitted
from the unit, or if it seems to not function correctly. Disconnect the power source immediately and consult your supplier.
CAUTION
Always follow the instructions in the installation guide when applying power. Fire and equipment damage can occur if power is applied incorrectly. For the correct power supply, refer to the specification sheet.
Regulatory Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference,
- This device must accept any interference received, including interference that may cause undesired operation.
Features
- Full-sized 3G/HDSDI (BNC) output
- 2.5 Megapixel (1/2.86″) sensor (4:2:2 color)
- 10-foot (3 meter) breakout cable with BNC (3GSDI), RS485 remote adjust, and locking 12V power
- Interchangeable 4.0mm (85-degrees) lens under IP67 cap
- IP67-rated weatherproof housing; submerge in water up to 10-feet for several hours
- Full-HD resolutions: 1920 x 1080p, 1920 x 1080i and 1280 x 720p
- Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
- Remote adjustable through RS485 (Visca) or OSD menu joystick
- CV-RCP-V2 Touchscreen RCP compatible and free Camera Control Software option
- Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more

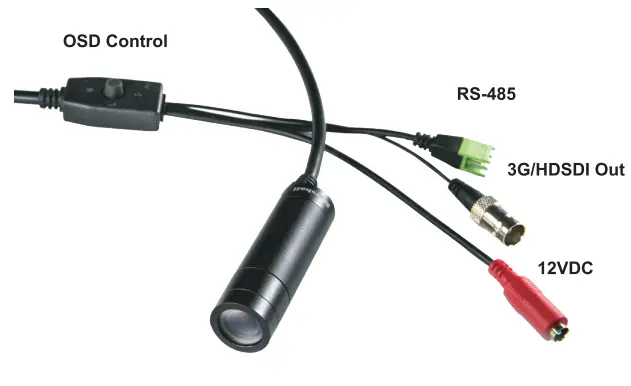

Connectors

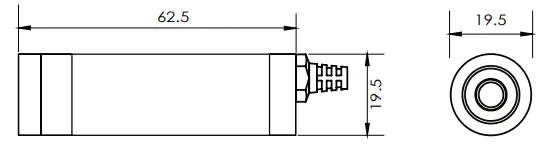

CV228 Dimensions
DIMENSIONS
Design and specications are subject to change without notice.
Sensor | Image Sensor | 1/2.86″ Progressive CMOS (Approx. 2.4 Mega) |
| Scanning System | 16:9 Progressive | |
| Sync. System | Internal | |
| Effective Pixel | 1944(H) x 1212 (V) | |
| Min. Illumination | 0.2Lux(Day), 0.1Lux(Night), 0.005Lux(DSS on) | |
| Horizontal Resolution | 1000TVL | |
| Optics | Lens | M12 4.0mm (85-degree) |
Functions | Back Light Compensation | WDR, BLC, Spot |
| Exposure | Auto / Manual Shutter / Flickerless | |
| White Balance | Auto / ATW / Manual / Push | |
| Electronic Shutter | 1/1 ~ 1/30000 | |
| Functions | Privacy Mask, Image Mirror/ Flip, DNR, D-Zoom, Defog, DIS (Digital Image Stabilizer) | |
Video Outputs | SDI | SMPTE 292M (1.485Gbps): 1920x1080p @25, 29.97, 30 fps/ 1920x1080i @50, 59.94, 60fps / 1280x720p @25, 29.97, 30, 50, 59.94, 60 fps |
| SMPTE 424M(2.97Gbps): 1920x1080p @ 50, 59.94, 60 fps |
| Control Interface | RS485 | Sony VISCA protocol |
| 8 bits data, 1 stop bit, no parity, 2400 ~ 115200 bps | ||
| SIONS | Operation Temperature | 10 C ~ 50 C |
| Power Input | 12VDC (7VDC to 15VDC) | |
| Power Consumption | Max 6W |
