OWNER’S MANUAL PRO-W10.4SNEO
10 NEODYMIUM
WOOFER LOUDSPEAKER
WATER RESISTANT CONE
PRO-W10.4SNEO 10 Inch Woofer Loudspeaker Neodymium Water Resistant Cone
PRO-W10.4SNEO
Specifications:
Nominal Diameter ……………………………………10’’ (254mm)
Nominal Impedance ………………………………..4 ohms svc
Maximum Power Handing ………………………..800 watts
RMS Power Handing ………………………………..400 watts
Sensitivity (1w/1m) ………………………………….91 db
Frequency Response ……………………………….40Hz-5KHz
Recommended Lo Pass Crossover ……………180hz
Motor:
Voice Coil Diameter …………………………………2.5’’ (65.5mm)
Voice Coil Former Material ……………………….Til
Winding Material …………………………………….SV
Cone Material …………………………………………Water resistant paper
Dust Cap Material ……………………………………Water resistant paper
Surround Material ……………………………………Rubber
Basket Material ………………………………………Steel
Magnet Material ……………………………………..Neodymium
Magnet Weight ……………………………………….8.8 oz
Displacement Volume ……………………………..1.79L
Thiele & Small Parameters:
Equivalent Volume………………………..Vas 23.431 LTR
Excursion (one way)……………………..Xmax 12.2 mm
Free Air Resonance……………………….Fs 41.5 Hz
Mechanical Factor………………………..Qms 5.171
Electrical Factor …………………………..Qes 0.5
Total Factor…………………………………. Qts 0.38
Moving Mass………………………………..Mms 91.85g
Compliance………………………………….Cms 0.16mm/N
BI Factor……………………………………… BI 12.95
Voice Coil Inductance………………….. Le 0.4578mH
Diaphragm Area…………………………… Sd 0.035299sq/M
Dc Resistnace……………………………… Re 3.2 ohms
Efficiency Bandwith Product…………. EBP 83

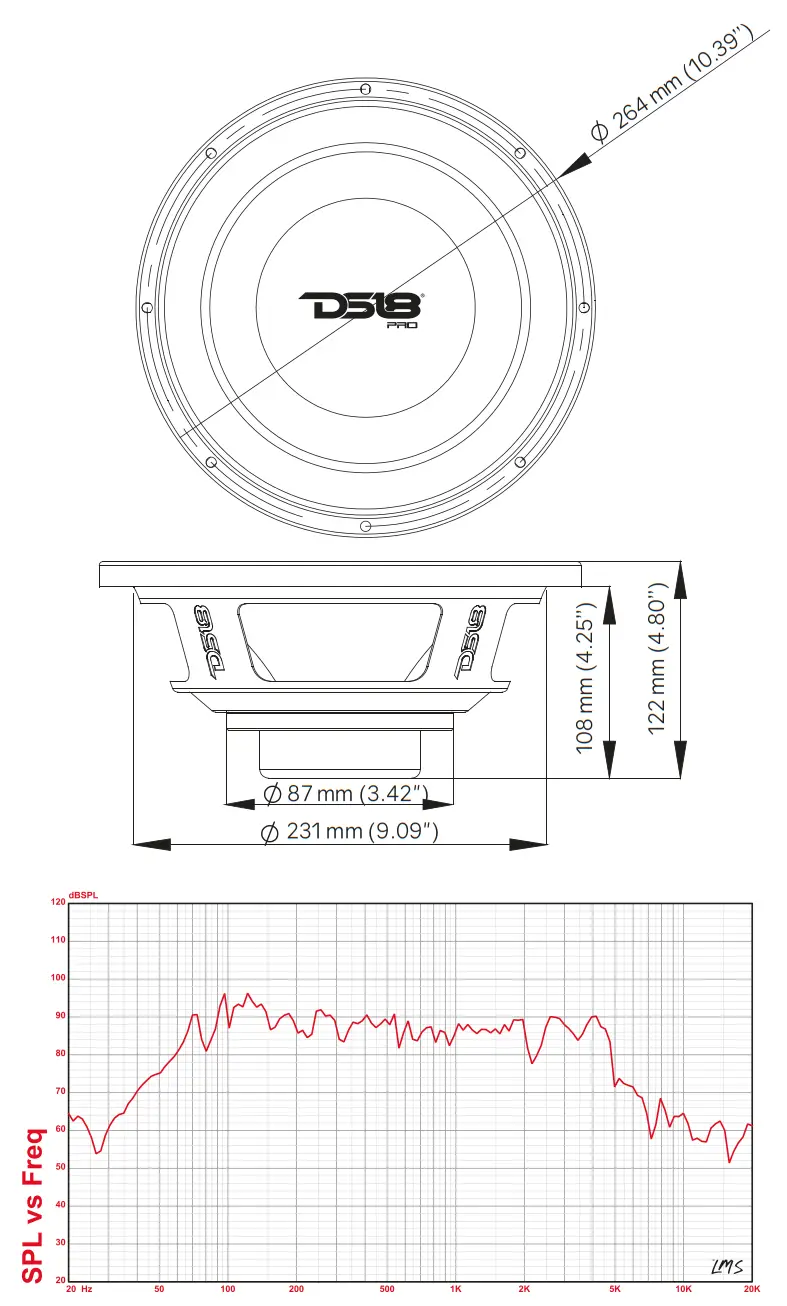

Measurements:
Overall Diameter …………………………………….. 264 mm (10.39’’)
Overall Depth ………………………………………….122 mm (4.80’’)
Front Mount Baffle Cutout ………………………..231 mm (9.09″)
Mounting Depth ………………………………………108 mm (4.25’’)
Motor Diameter ……………………………………….87 mm (3.42’’)
