SB-P2 43 1K Pro 2 Series 4K Full HD Outdoor TV
Owner’s Manual
SB-P2-43-1K Pro 2 Series 4K Full HD Outdoor TV

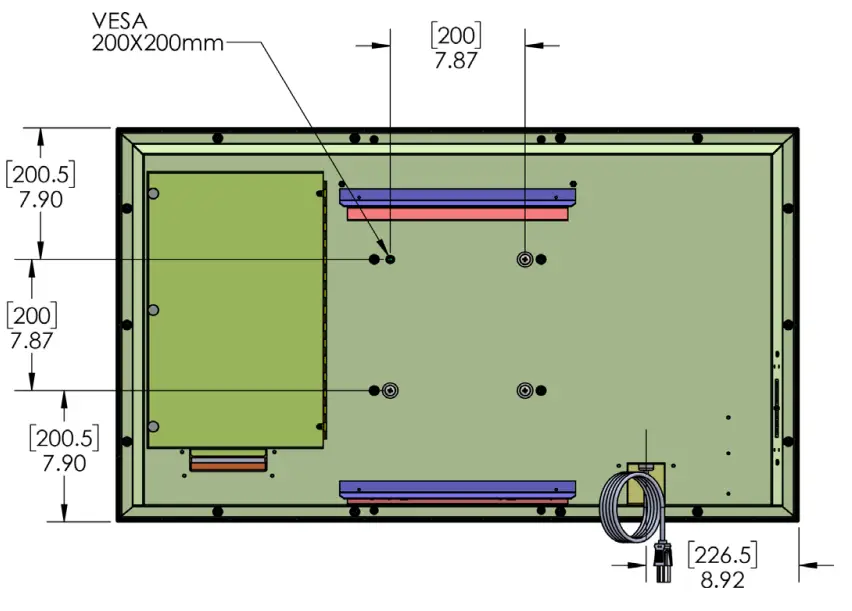

Rear View
TV intended to be fastened in place using, 4ea, M4 x 12mm screws and washers (100mm x 100mm pattern) or 4ea, M8 x 30mm screws and washers and a UL listed wall mount.
Specifications
| LCD Screen | 43-inch diagonal Color Active Matrix TFT LW LCD |
| Resolution | 1920 x 1080 F HD (4k input scaled to 1080p) |
| Aspect Ratio | 16:09 |
| Blacklight Brightness – Surface Luminance, white | 1500 nits (cd/m2) |
| Contrast Ratio | 3000:1 |
| Front Window | AG Laminate glass |
| Response Time | 8 milliseconds |
| TV formats | 2160p*,1080p, 1080i, 720p, 720i, 480p, 480i * using hdmi only (2160p input scaled to 1080p) |
| Input Connectors: Tuner HDMI Video Composite Video Component PC Ethernet HDBase-T | Antenna/CATV (ATSC/QAM/NTSC) x1 HDMI Input x 2 (supports HDMI 2.0, HDCP 2.2, HDMI 1.4 & HDCP 1.4a) Composite Video, UR Audio Inputs x1 YPb Pr plus Stereo Audio x1 (using 3.5mm to RCA adapter -not included) 15-pin D-sub VGA plus Stereo Audio I1145 – Single Cat5e/Cat 6 cable R145 – Single Cat5e/Cat 6 cable* *refer to detailed data sheet for supported resolutions, refresh, color depth and Cat5e/Cat 6 cable lengths. |
| Control Set | RS232 Serial, Discrete IR Control, Concealed rear IR Window, IP Control, OvrC |
| Audio Out | Digital Optical TosLink x 1 (fixed) Analog 1/8″ headphone jack (variable) |
| Accessory DC Power Out | 5vdc @ 3.5a mps 1.3mm power jack or usb type A jack |
| Speaker Output | 20-watt(10w x 2) Does not have internal speakers. Optional Speaker Bar not included. |
| Exterior | Powder-coated aluminum |
| Colors | Silver, Black and White |
| Input Power | 100-240 VAC, 50-60 Hz 2.5a max |
| Operating Temp. | -24° to 122° F. (-31° to 50° C.) * |
| Non-op. Temp. (Off-mode with power applied) | -24° to 140° F. (-31° to 60° C.) The non-operating temperature feature requires power to be applied |
| Accessories Included | Water-resistant remote control |

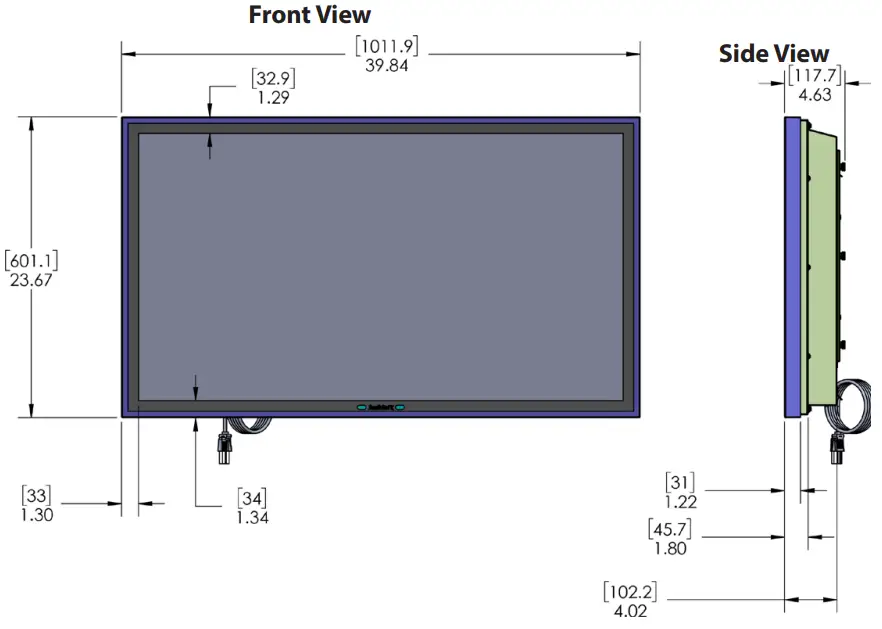

| Dimensions | 39.8in W x 23.7in H x 4.6 in D 1012mm Wx 601mm H x 118mm D |
| Weight | TV 69 lbs/ 31 Shipping 51 lbs (23.1 kgs) |
| Residential Warranty | Two year, in-factory, parts and labor |
| Commercial Warranty | Two year, in-factory, parts and labor |
| Mount Pattern | 200mm x 200mm |
