FWD-43X80H/T
43″ BRAVIA 4K Ultra HD HDR Professional
Display
Overview
The BRAVIA FWD-43X80H/T brings you the clarity, colour and contrast of 4K plus rich multi-dimensional sound, framed in a slim, luxurious design.
Our power-packed X1 processor boosts image detail and cuts noise, bringing you spectacular 4K HDR images that bring you closer to reality. Even lower-resolution pictures are upscaled close to 4K resolution, bringing greater clarity to everything you’re viewing or presenting.
Our BRAVIA Professional Displays surrounds you with pure sound that pulls you right into the scene. With Dolby Atmos, sound comes from above as well as from the sides so you can hear objects moving overhead with more realism for a truly multi-dimensional experience.
The FWD-43X80H/T blends harmoniously with any contemporary interior. The displays slim blade design is complemented by a narrow screen bezel that adds an extra touch of refinement.
The BRAVIA FWD-43X80H/T is ideally suited to professional use, with Pro mode allowing quick and easy customisation to suit different environments. Android TV lets you do more, with the display’s intuitive built-in software platform broadening control and customisation options even further. Creating attractive digital signage is simple, mixing and displaying media files and online content with no need for additional hardware. A wide range of APIs (Application Programming Interface) options enable remote control/monitoring and integration with external systems.
Features
4K offers four times the detail of Full HD, with a resolution of over 8 million pixels bringing extra clarity to corporate display, education and digital signage applications.
Our 4K HDR Processor X1TM cleans and refines picture signals, using advanced algorithms to cut noise and boost detail. Even lower-resolution images are upscaled closer to 4K with lifelike colour and textures.
4K X-Reality PRO upscales pictures closer to true 4K quality. Images are sharpened and refined in real time, revealing extra detail from lower-resolution picture sources. Powered by our X1 processor, TRILUMINOS Display maps colours from a wider palette, faithfully reproducing a world of more vivid, lifelike hues and tones.
Powered by our X1 processor, TRILUMINOS Display maps colours from a wider palette, faithfully reproducing a world of more vivid, lifelike hues and tones.
Motionflow technology keeps on-screen movement smooth and clear by creating extra images between images and black segments between scenes. You’ll see the difference with reduced blur more natural, flowing motion.
BRAVIA features a slim, contemporary blade design, with a narrow screen bezel that adds an extra touch of refinement to any interior.
Discover a world of apps and online content powered by Android. Use Voice Search to find content easily without typing. Easily share content with Google Cast.
With Apple AirPlay it’s easy to stream video and sound to BRAVIA right from an iPhone, iPad or Mac.
Cast videos and apps from a mobile device directly to BRAVIA with Google Chromecast. Just tap the Cast button on your Android or iOS device screen and instantly enjoy super-sized on BRAVIA.
Customise and store display settings and features, then copy easily to multiple displays via USB flash memory.
Integrated support for HTML5 makes it easy to produce compelling digital signage. Combine graphics, text, video and live web content to create attractive signage in minutes with no extra hardware or special training.
Control BRAVIA remotely including on/off, input signal select and adjust volume over IP via RJ45 by web API.
BRAVIA integrates seamlessly with TEOS, Sony’s suite of workspace management applications that orchestrate control of devices and content in boardrooms, meeting areas and public spaces.
Specifications
| Display Features | |
| Brightness (cd/m²) | 440 |
| Native Contrast Ratio | 1100:1 |
| Dynamic Contrast Ratio | 400000:1 |
| Response Time (ms) | 5 |
| IPS | |
| Dimming Type | Frame |
| Display Device | LCD |
| Backlight Type | Edge |
| Bezel Size (Top, Side, Bottom) | 11.4 |
| Operation Time | 18/7 |
| Portrait Mode | Yes |
| Display Specifications | |
| Screen Size for WEB (diagonal, cm, integer, or 1st decimal) | 108 |
| Backlight Type | Edge |
| Display Resolution (HxV, pixels) | 3840 |
| Screen Size (inch, measured diagonally) | 43″ (42.5”) |
| Viewing Angle (Right/Left) | 178 (89/89) degree |
| Viewing Angle (Up/Down) | 178 (89/89) degree |
| Display Resolution | QFHD |
| Aspect Ratio | 16:09 |
| Professional Features | |
| Professional Hidden Mode | Yes |
| HDMI Auto Wake-Up | Yes |
| Multicast/IPTV | Yes |
| Compatible with TDM Digital Signage/TEOS Solutions | Yes |
| Operating System | Android 9.0 Pie |
| On-board Storage (GB) | 16GB |
| Display System | |
| TV System (Digital Terrestrial) | DVB-T/T2 |
| TV System (Digital Cable) | DVB-C |
| TV System (Digital Sat) | DVB-S/S2 |
| Number of Tuners (Terrestrial/Cable) | 1 (Digital/Analog) |
| Number of Tuners (Sat) | 1 |
| Network Features | |
| Wi-Fi Direct | Yes |
| Wi-Fi Certified | Yes |
| Screen Mirroring (Miracast™) | Yes (only for B2B purpose) |
| Apple AirPlay | Yes*1 |
| Chromecast Built-in | Yes |
| Internet Browser | Vewd |
| Wireless LAN | Integrated |
| Convenience Features | |
| USB Playback Codecs | MPEG1:MPEG1/MPEG2PS:MPEG2/MPEG2TS (HDV,AVCHD): MPEG2,AVC/MLPCM/WAV/MP4AAC/FLAC/JPEG |
| HDMI-CEC | Yes |
| i-Manual | Yes |
| On Screen Clock | Yes |
| Sleep Timer | Yes |
| On/Off Timer | Yes |
| Display Language | AFR,AMH,ARA,ASM,AZE,BEL,BUL,BEN,BOS,CAT,CZE,DAN,DEU,GRE,ENG,SPA |
| Control Specs | |
| IP Control | Yes |
| Pro Mode | Yes |
| Inputs & Outputs | |
| HDMI Signal | 4096x2160p (24,50,60 Hz), 3840x2160p (24,25,30,50,60 Hz),1080p (30,50,60 Hz), 1080/24p, 1080i (50,60Hz), 720p (30,50,60Hz), 720/24p,576p, 480p |
| HDCP | HDCP2.3 (for HDMI 1/2/3/4) |
| AC Power Input | AC ADAPTER |
| RF (Terrestrial/Cable) Connection Input(s) | 1 (Side) |
| IF (Satellite) Input(s) | 1 (Side) |
| Composite Video Input(s) | 1 (Bottom) |
| HDMI Inputs Total | 4 3 Side,1 Bottom) |
| USB Ports | 2 (Side) |
| Ethernet Inputs | 1 (Bottom) |
| CMCIA Slot(s) | 1 (Top) |
| Audio Specifications | |
| Speaker Position | Down Firing |
| Audio Power Output | 10W+10W |
| Video Specifications | |
| Wide Mode | Auto/Wide zoom/Normal/Full/Zoom/14:9 |
| 4:3 Default | Yes |
| Video Processing | 4K X-RealityPRO |
| Motion Enhancer | Motionflow XR 400Hz (Native 50Hz) |
| 4K Processor | X1 4K HDR Processor |
| HDR (High Dynamic Range) compatiblity | Yes (HDR10, HLG, Dolby Vision) |
| Panel Refresh Rate (Native Hertz) | 50Hz |
| Design Features | |
| Cable Management | Yes |
| Frame Colour | Black |
| Stand Design | Slim Blade Stand |
| VESA® Hole Spacing Compatible | Yes |
| VESA® Hole Pitch (WxH) | 10.0×20.0 cm |
| Eco & Energy Saving | |
| Energy Label Rating | A |
| On-mode Power Consumption | Standard: 66.0W |
| Standby Power Consumption | 0.50W |
| Peak Luminance Ratio for EU | 70% |
| Mercury Content (mg) | 0.0 |
| Power Saving Mode/Back Light Off Mode | Yes |
| Power Requirements (voltage) | AC 220-240V, 50Hz DC 19.5V |
| Power Consumption (Networked Standby) | 2.00W (Wi-Fi)/2.00W(LAN)/1.00W (Bluetooth) |
| Dimensions | |
| Display Only | Approx. 9.4 Kg |
| Display with Stand | Approx. 9.8 Kg |
| Package Carton (Gross) | Approx. 14 Kg |
| Optional Accessories | |
| Wallmount Bracket | SU-WL450 (Terminal access limitation, refer to SU-WL450 product page) |
| Service and Warranty | |
| Standard Warranty | 3 Years with Advanced Exchange. There’s extra reassurance with our 3 Year Advanced Exchange Warranty that’s included as standard. If there’s a fault with your BRAVIA Professional Display, we’ll provide a replacement unit at no extra charge to keep you up and running. |
| PrimeSupport Reference | PSP.FDWXH43.2X |
| Notes | |
| Note | *1: Available via future firmware update, Internet required |

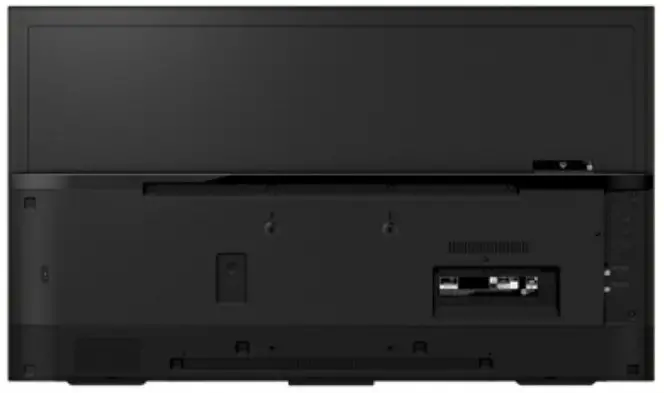

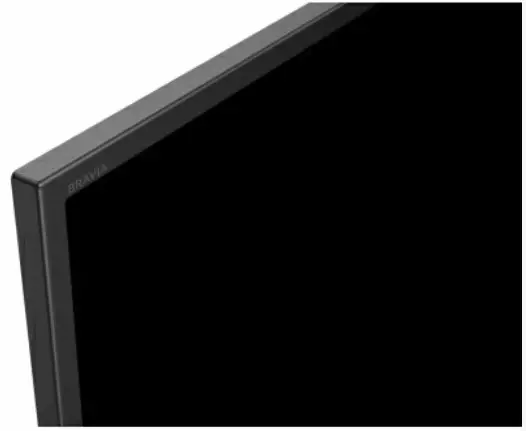

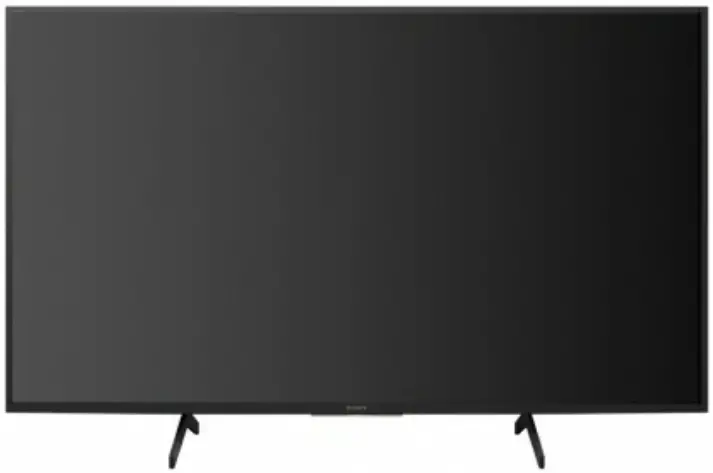

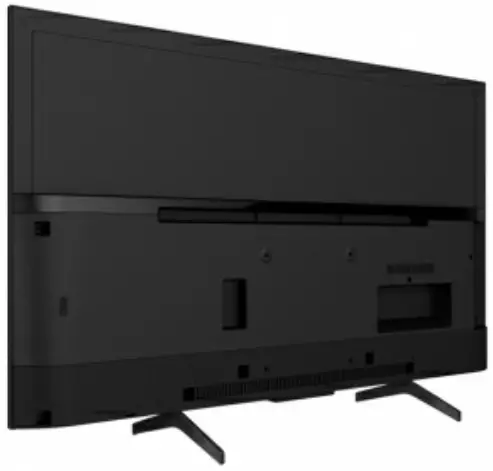

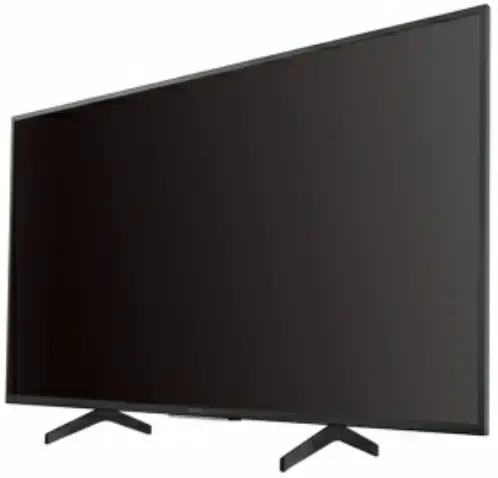

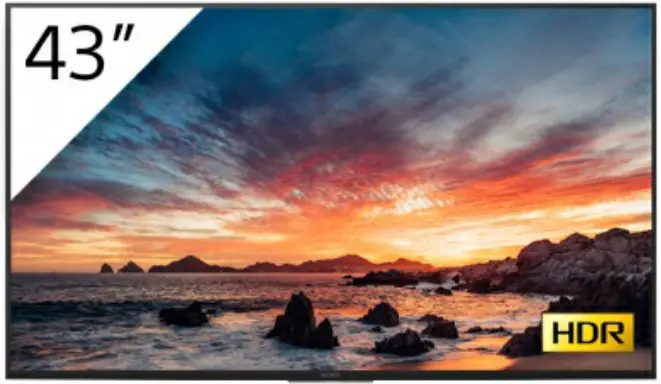

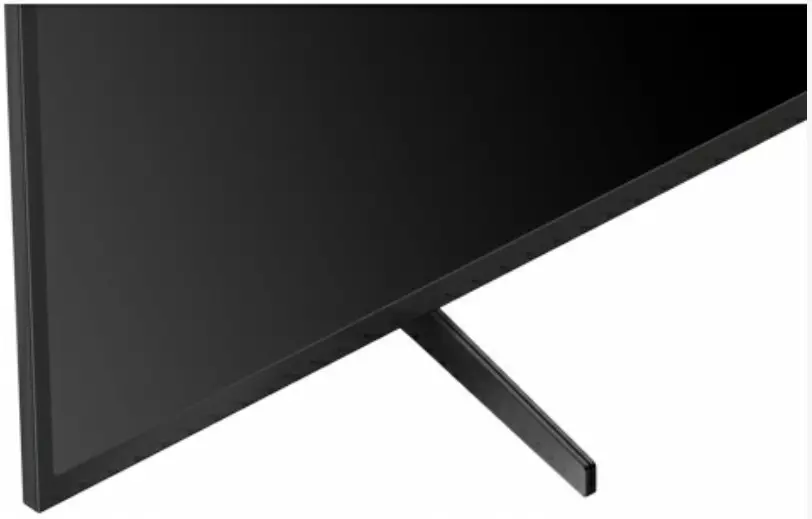

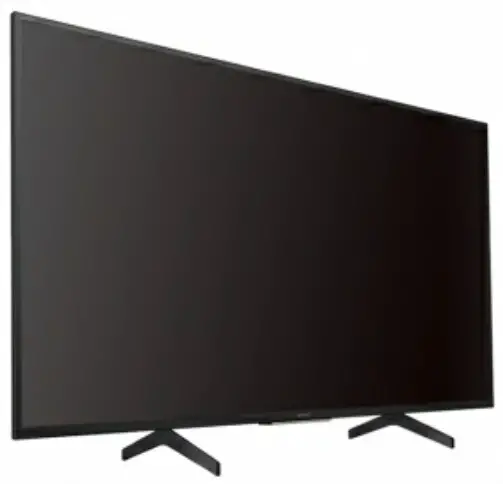

Gallery
