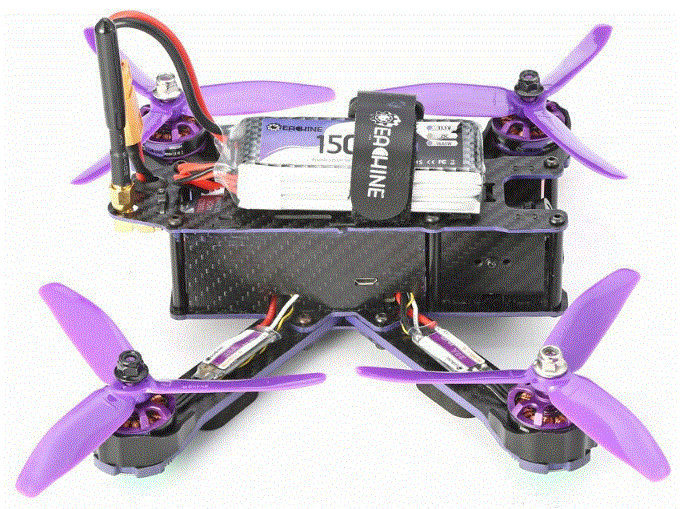

EACHINE X220 V3 Wizard FPV Racing RC Drone

Package included:

1 x X220 V3 frame kit
2 x 2207.5 2550KV brushless motor CW
2 x 2207.5 2550KV brushless motor CCW
4 x 35A BLHeli_S ESC
1 x Customized F405 PDB flight controller
1 x RunCam Phoenix 2 1000TVL camera
1 x 5.8G 40CH 0mW/25mw/200mw/600mw VTX Switchable
1 x BB alarm buzzer and taillights
1 x Picture antenna
2 x 20*200mm battery strap
1 x 30° camera mount compatible with Runcam 3 3S Gopro session
4 x Racerstar 5143 CW
4 x Racerstar 5143 CCW

PNP：

Flight Controller: ICE F405-PDB
ESC: ICE T-35A
VTX: MT5G8 5804
FPV Camera: RunCam Phoenix2
Motor: 2207.5-2550KV
Propellers: Racerstar 5143

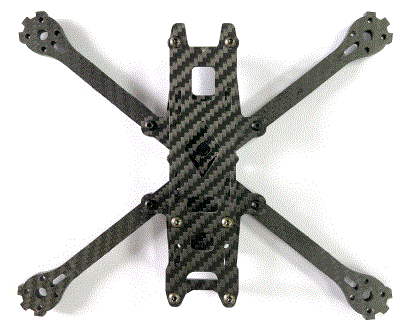

Frame kit

Wheelbase: 225mm
Upper plate thickness: 2.0mm
Frame arm thickness: 5.0mm
Bottom plate thickness: 2.0mm
X plate thickness: 2mm
Frame standoffs: M3*20mm 6 PCS

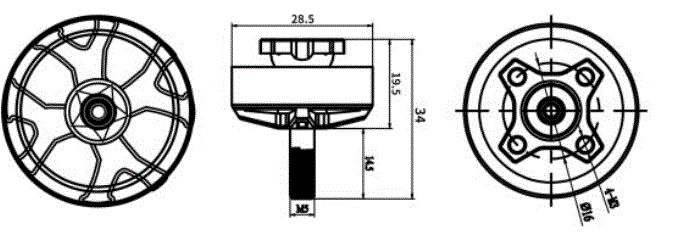

Motor

Dimensions: 2207.5
Motor KV: 2550 RPM/V
Lipo cell: 3-4S
Weight: 34g
Max continuous current: 45A
Max continuous power: 756W
Configuration: 12N/14P
Prop adapter shaft: M5
Propeller: 5-6 inch

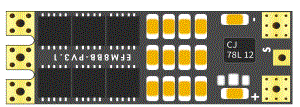

ESC

Input Voltage: 3-6s lipo
Operating Current: 35A
Peak current: 40A
BEC: NO
Dimensions: 30x10mm
MOS: AON7418
Firmware: BLHeli_S
Agreement: DSHOT150/300/600/1200/ONSOHT125MultiShot Damped
Weight: 3.0g

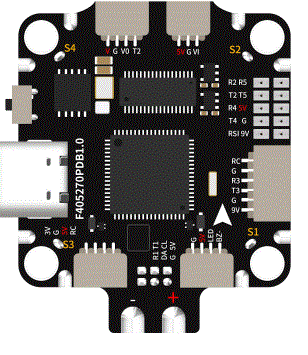

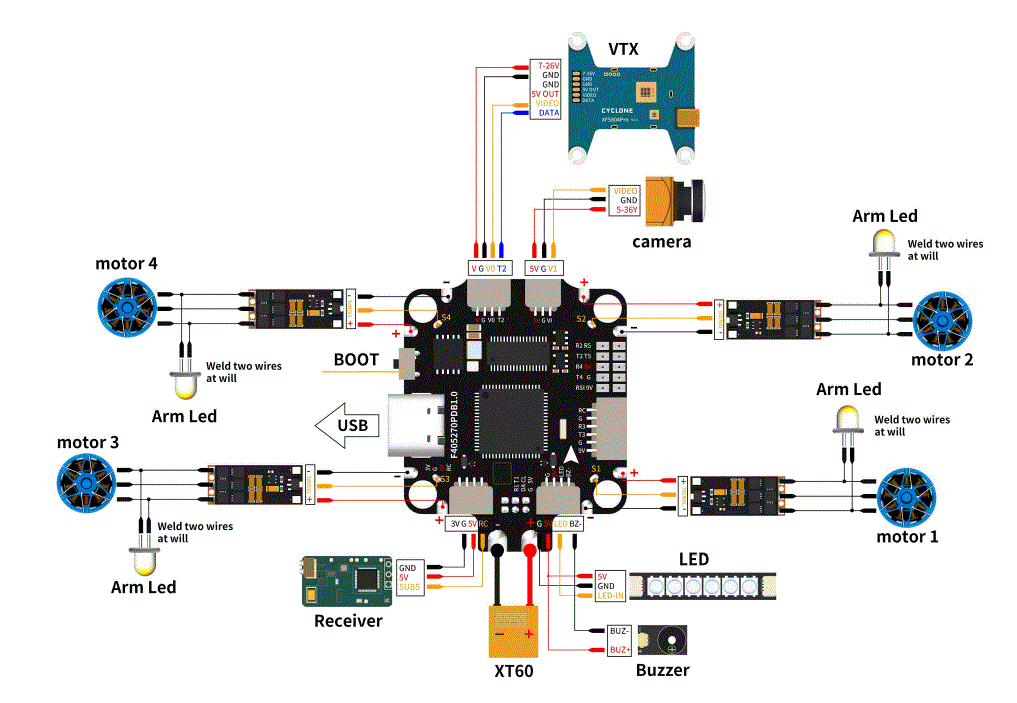

Flight controller

MCU: STM32F405
GYRO: BMI270
Barometer: BMP280
Blackbox: 16M Memory
Input: 2-6S Lipo
Mounting: 30.5X30.5mm
Size: 37x37mm
Weight: 10Og

Switchable VTX

Item name: 5.8G 40CH OmW/25mw/200mw/600mw VTX
Switchable Output power and transmission distance: 20.5km@25mW, 1km to 200mW, 2 2km to 600mW
Transmission power: OmW/ 25mW/ 200mW/ 600mW
Full video format: NTSC/ PAL
Input voltage and power dissipation: 7V-24V, +12V/ 260mA @ 600mW Size: 36 36 6mm
Weight:S 7g (excluding antenna)
Nixie tube SCAN: frequency point (1-8), frequency band (AE), power (1- 3,0-Omw, 1-25mw, 2=200mw, 3=600mw)
Package included:1 x 5.8G 40CH OmW/25mw/200mw/600mw VTX
Switchable

Camera

Model number: RunCam Phoenix 2
Image Sensor: 1/2 inch super wide motion sensor
Horizontal resolution: 1000TVL
Camera Lens: 2.1 mm (M12) Fov 155 (4:3)
Screen scale: 4:3/16:9 switchable
Mirror image: YES
Video format: NTSC/PAL switchable
Signal to noise ratio:> 50dB (AGC auto gain of)
Electronic shutter speed: Automaticity
Automatic gain control: Automaticity
Minimum llumination: 0.001 lux@aperture
Wide Dynamic: Global Wide Dynamic
Day/night switch: Color/black and White/ext/auto Menu
Control: Keypad control
Power: DC 5-36 volts
Operating Current: 200 ma@5 V: 85 ma@12 V
Shell material: ABS
NET weight: 9g
Dimensions: 19 19 20mm
7.0 Taillight Buzzer
Working voltage: 5V
Size: 32 18’7mm
Weight: 2.4g
LED: 4 lights
Buzzer: YES

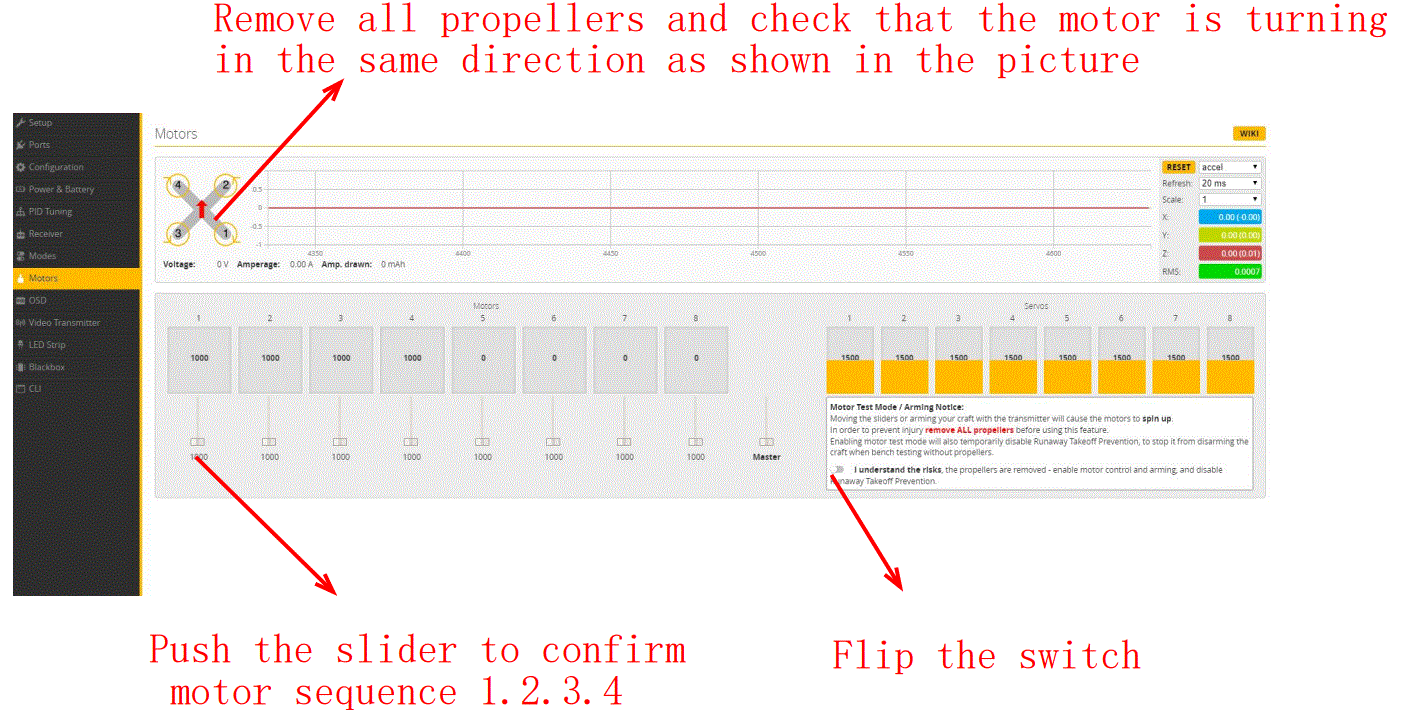

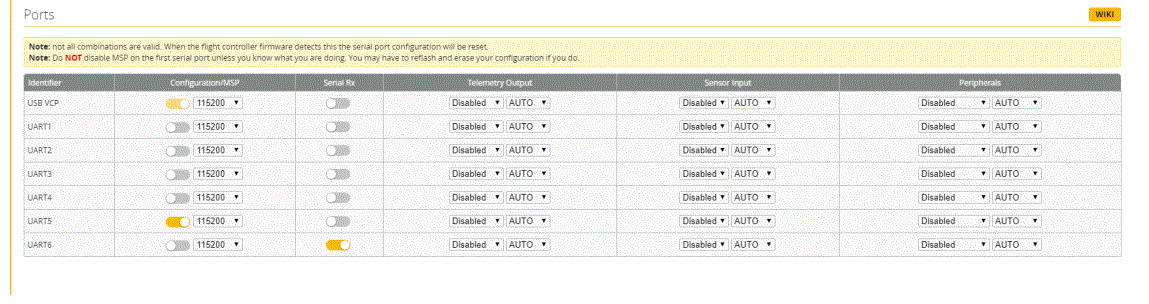

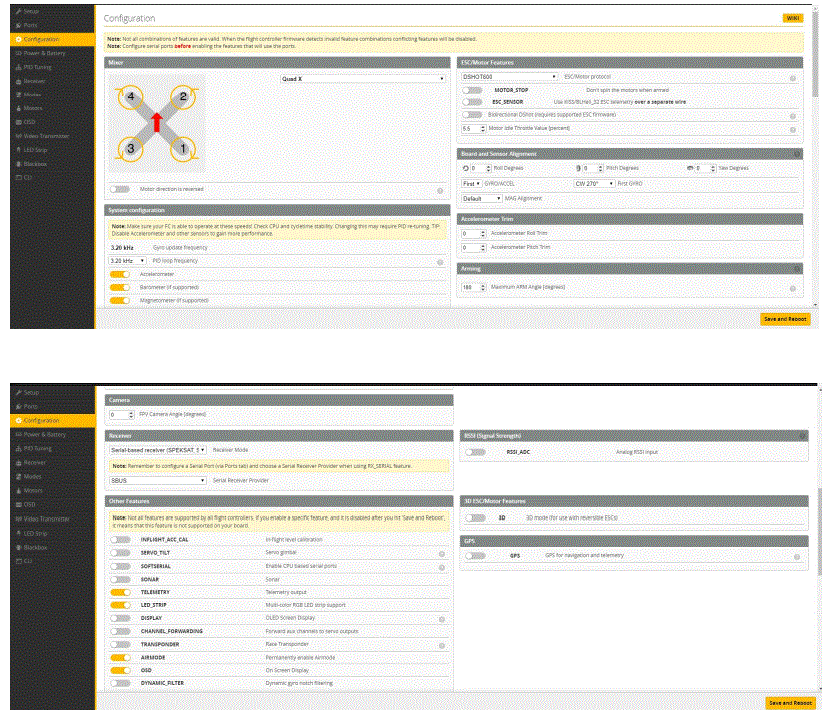

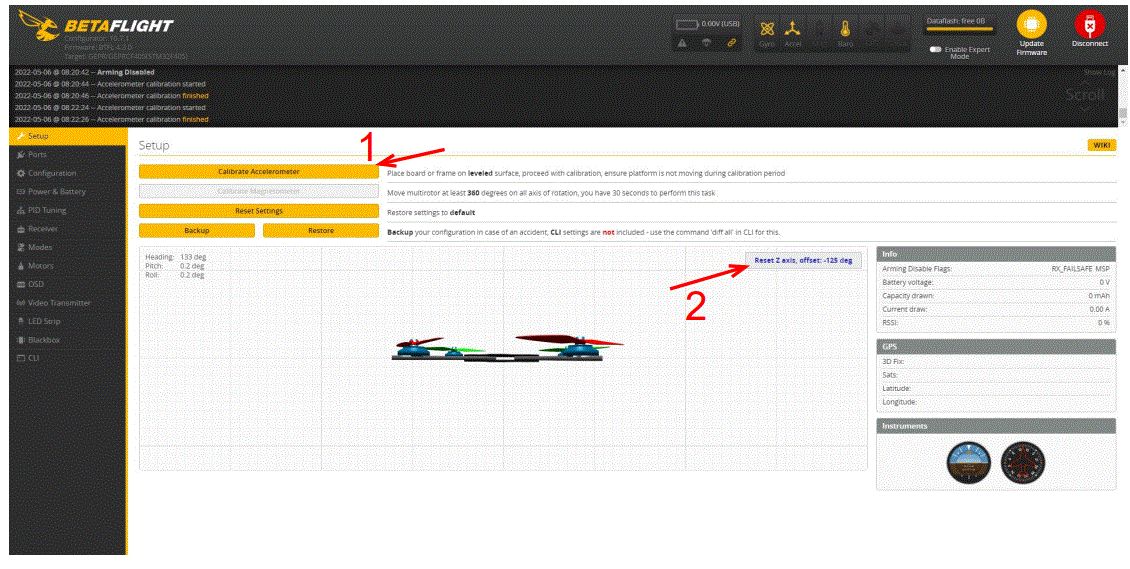

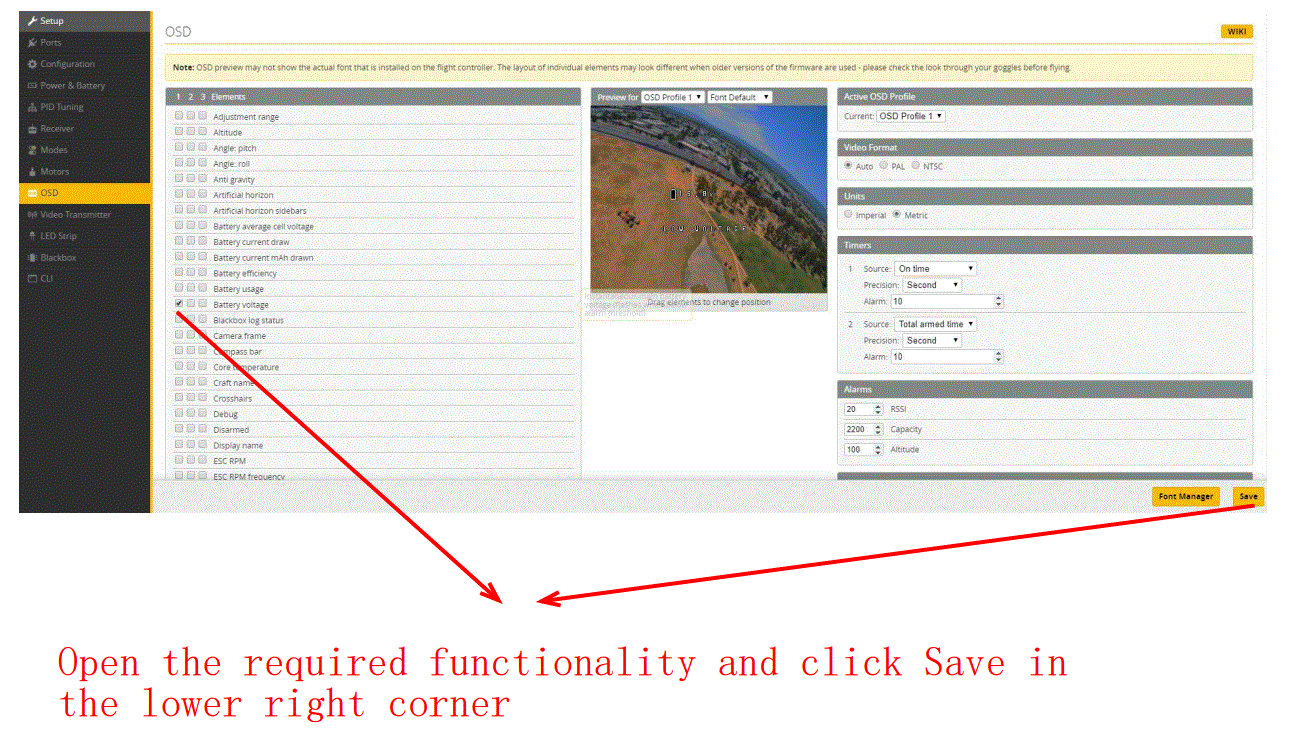

Motor Unlock/lock
Set the unlock switch at BF ground station, turn on the remote control, turn the throttle to the lowest point, connect the battery on the plane, unlock the take-off.

Traversing flight

Flying is more suitable for experienced pilots.
During the flight, please keep the flight within the video receiving range (the actual range depends on the flight environment and weather conditions).
During flight, please avoid crowd, animals and High voltage wires and other obstacles
