iMeeting W60
Embedded Multi-Function Wireless Charger
User Manual
Embedded multi-function
wireless charger
Thank you for choosing The multi-function wireless charger, before getting started, please read the user’s manual carefully so as to ensure the operation.
Notice
- Do not use the charger near water, liquid or wet areas. While cleaning use paper or a towel.
- Do not put any dangerous articles on this charger.
- Cut off the power before cleaning the charger.
- Do not try to disassemble, repair or remold the product by yourself.
- Unplug this device when you don’t use it for a long time.
- Do not expose your charger to temperatures above 45. Keep out of direct sunlight.
- Water-resistance
- pressure resistance
- Smart and convenient charging

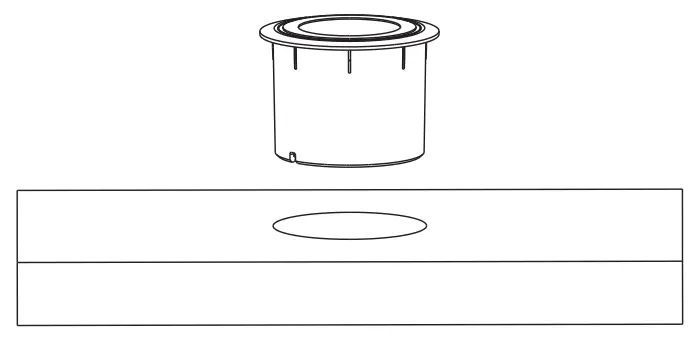

- Easy For Assembly for the hole of office desk in the cafe /restaurant/bar/airport/train station
Wireless charging compatible devices
| Apple | iPhone8, iPhone 8Plus, iPhone X, iPhone Xs,iPhone Xs Max,iPhone XR0 |
| Samsung | Galaxy S6,GalaxyS6 Edge,Galaxy S7, Galaxy S7 Edge,Galaxy S8, Galaxy S8+, Galaxy Note 5, Galaxy Note 8, Galaxy S9, Galaxy S9+0 |
| HUAWEI | Mate 2 Pro, Mate 2ORS, P3Opro |
| Nexus 4, Nexus 5, Nexus 6, Nexus 7 | |
| LG | G3. G4. G6. V30. V30+ |
| Any other Qi charger-supported device! | |
Product parameters
| Standard | Qi wireless charging standard |
| Input | 5V-9V 30 watts max |
| Output 1 | 5W/7.5W/10W |
| Output2 | 5W MAX |
| Output 3 | 5W MAX |
| Installation diameter | 60mm |
| Transmitter distance | 8mm |
| Charging efficiency | _> 80% |
| Dimension | D70*H5Omm |
| Weight | 125g |
