Juicernet SC-3 Sugarcane Juicer
Introduction

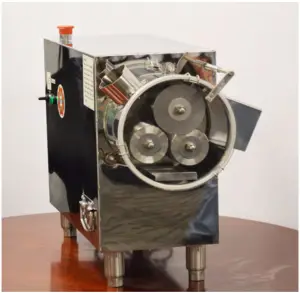

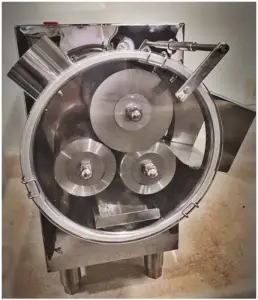

The Model SC-3 Sugarcane juicer is unlike any traditional commercial juicer. The SC-3 has removable rollers and juice compartments for easy cleaning. Additionally, it is a one-pass unit that offers better yield because of the gap between the rollers. Made with heavy-duty stainless steel, this machine will run at top performance for years to come. The SC-3 is designed with a gearbox which gives the machine more torque, thus reducing the stress on the motor.
This machine is ideal for Juice Bars, Restaurants, Hotels, Supermarkets, Health Clubs, etc. It can also be used to make juice from crispy celery, ginger, cactus plant extract and aloe, etc.

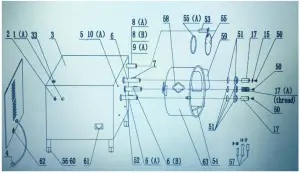

Diagram of Main Parts
Description of Main Parts
| Part No. | Description |
| SC-1 (A) | Power Light (infix type) |
| SC-2 (L) | Power Switch (On/Off, 25 amp) |
| SC-3 | Top Body of Machine |
| SC-4 | Plug (USA type / 110v) |
| SC-5 | Cabin Screw |
| SC-6 | Roller Shaft (up/motor) |
| SC-6 (A) | Roller Shaft (left side) |
| SC-6 (B) | Roller Shaft (right side) |
| SC-7 | Key of Shaft (10×50) |
| SC-9 | Safety Switch (110v) |
| SC-10 (A) | Screw (cap nut M6) |
| SC-15 | Washer for Roller |
| SC-17 | Roller (Threaded Roller #SC-17A) |
| SC-33 | Emergency On/Off Switch (110v) |
| SC-50 | Roller Screw |
| SC-51 | Seal and Cover |
| SC-52 | Small Nylon Spacer |
| SC-53 | Safety Switch Rod |
| SC-8 (A) | Safety Switch Stick (shorter M12) |
| SC-8 (B) | Safety Switch Stick (shorter M5) |
| SC-55 (A) | Silicone Seal for Cabin |
| SC-56 | Adjust Legs (750-105mm) |
| SC-57 | New Tool (8-10#, 14-17# wrenches and straight screwdriver) |
| SC-58 | Entry Chute |
| SC-59 | Exit Chute |
| SC-54 | Filter |
| SC-55 | Lexan Door |
| SC-60 | 100mm Legs |
| SC-61 | Handles |
| SC-62 | Circuit Breaker (10 amp) |
| SC-63 | Juice Cabin |
Features
- NSF Certified · Roller (17) and juice cabinet (63) is easy to remove for cleaning.
- Cover of cabinet (55) is stainless steel.
- Stainless steel exterior finish and rollers, easy cleaning and fine appearance.
- Sugarcane juice and residue automatically divide, getting high efficiency
- All gear-driven, quiet and long life.
- Forward-reverse switch (2); overload switch (62).
- Safety switch (9A), emergency switch (33).
4Main Technical Data
Type/name | Model SC-3 Sugarcane Juicer |
| Net / Gross | 198 / 223 lbs. |
| Power | 10 amp |
| Size（L*W*H） | 27” x 9.5” x 19” |
| Supply | 110V/60hz /1/2 hp |
| Crate dimensions（W*L*H） | 48” x 48” x 30” |
| Efficiency | 15 rpm |
Operating Steps
- Preparations
o Place the machine on the table/counter after it is taken out of the box. Make sure that no parts are missing. Connect the power plug (4) into a standard 15amp electrical outlet, (make sure the connected outlet is grounded), then turn on the power switch (2) into forward position. Run the machine without load and make sure it sounds smooth and there are no obstructions. Emergency switch must be in the on position for the juicer to operate
o For best results cut the sugarcane into shorter pieces, 8-20 inches long, with an angle for easy feeding into the machine. The diameter should be smaller than 2 ¼ inches.
o Check the position of the filter (18) and container to collect juice.
o Before using you must clean the parts. Do not use any strong acid detergents to clean the cover of cabinet (55/55A). Do not directly spray or soak the outside of the machine by water, to avoid the leakage of electricity. It is best to wipe down with a damp cloth. The juicer is NOT hosable. - Juicing Steps
o Turn on the forward switch (2) and let the machine run without load for 30 seconds. Then feed the short pieces of sugarcane into the roller. WARNING!!! It is dangerous to get your hand or fingers too close or inside of the intake feed chute. After squeezing juice, be sure to remove and clean all of the juicing parts. Always make sure to turn off the machine and disconnect the power cord before cleaning or troubleshooting.
6. Troubleshooting
| Problem | Possible Cause | Troubleshooting |
| Work lamp (1) is lighted, but machine is not working. |
|
|
| Work lamp (1) does not light, and machine is not working. |
|
|
| No juice is coming out |
|
|
| Broken bits in juice |
|
|
| Turbid juice |
|
|
| Little juice |
|
|
| Loud noise |
|
|
