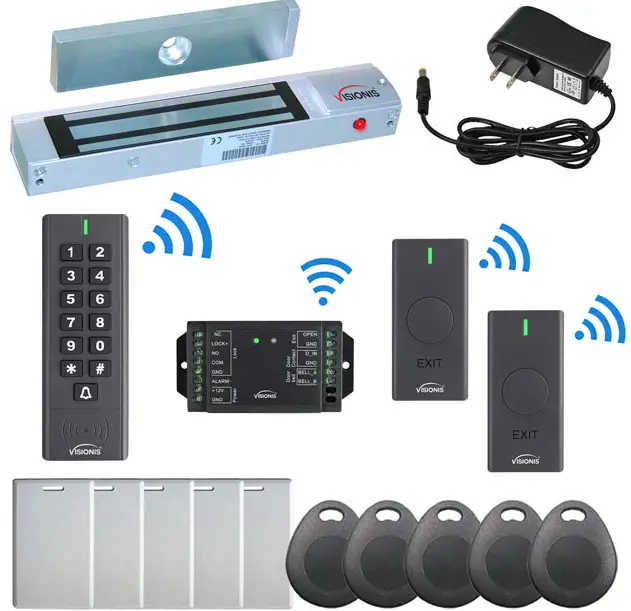

This Diagram is for kits: FPC-6377, FPC-6378, FPC-6379, FPC-6380, FPC-6381, FPC-6382
OVERVIEW
ATTENTION! QUICK TIPS, MUST READ BEFORE INSTALLING

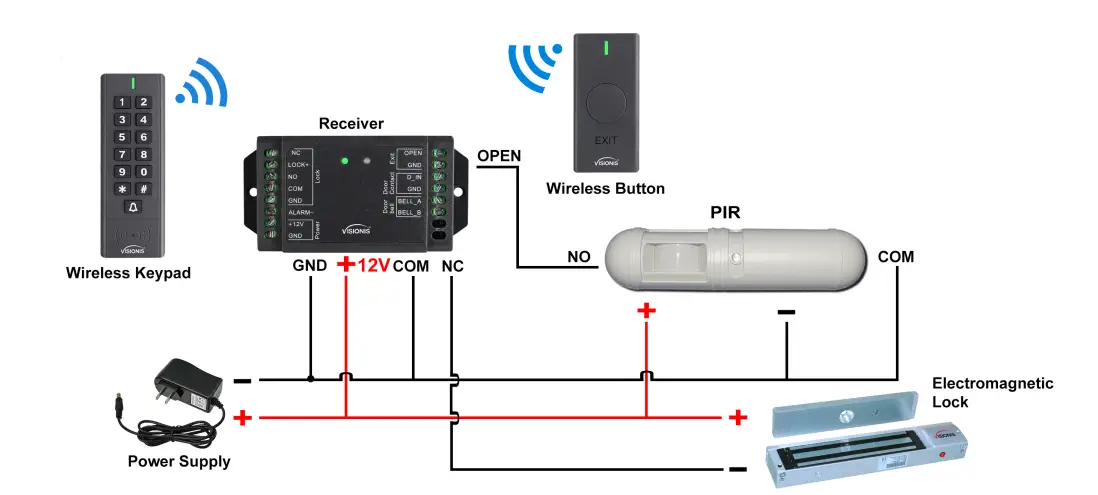

- You wil only need to hardwire the power supply to the mini Receiver and from any electric lock to the receiver.
- The Keypad and Exit buttons are 100% completely wireless. Installation is easier, no wire is needed to connect these devices. Just mount it on the wall and you are good to go.
- In order to properly install this kit it is recommended that you use 18/2 or 20/2 gauge wire
- Before installing this kit, check with your local fire Authority for compliance of fire codes.
- We are not responsible for the improper Installation of this kit. This is an example of how it should be installed but all applications are different.
- If you are not handy with electrical components, please consult with a certified electrician or Locksmith.
- Make sure that when you are installing this kit, please have all components turned off. We are not responsible for any type of short circuits.
Need assistance
- Contact Us: 1-888-504-3318
- [email protected]
- www.fpc-security.com
