Hoover Fh11300 Carpet And Upholstery Cleaner User Guide

Hoover Fh11300 Carpet And Upholstery Cleaner User Guide

HOOVER logoPOWERWASH
PET advanced
CARPET & UPHOLSTERY CLEANER
QUICK START GUIDE

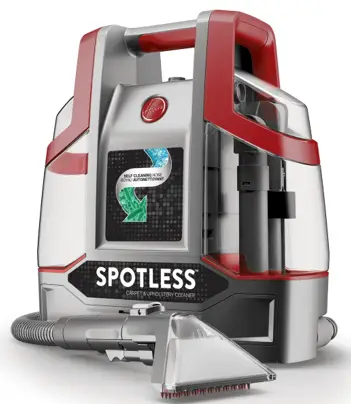

HOOVER FH11300 Carpet and Upholstery Cleaner

HOW TO USE

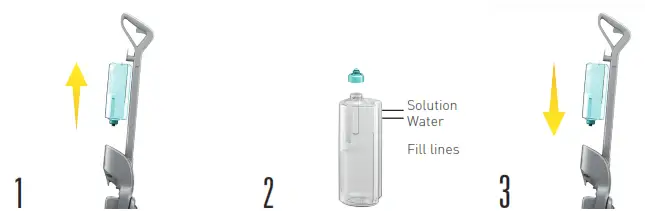

Remove Clean Water Tank, twist off the water cap on the bottom, and add warm water to the fill line.Add Hoover® cleaning solution to the Solution Fill Line then replace and tighten the cap.Slide the Clean Water Tank back into the unit.

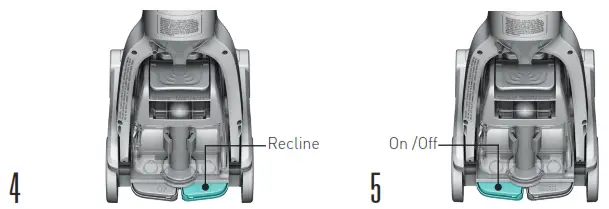

Plug the power cord into an electrical outlet. Step on the
Handle Release Pedal to recline the unit into the cleaning position.
Step on the ON/OFF Pedal to turn ON.

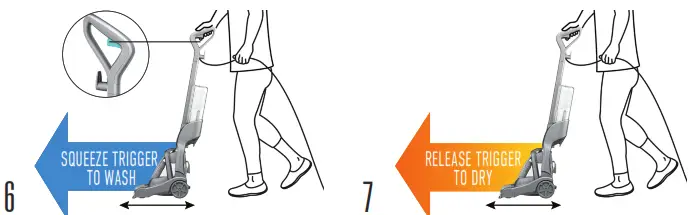

HOW TO USE (CONT’D)

Slowly push forward and then backward while squeezing the trigger to apply water and cleaning solution.Release trigger then slowly push forward then backward to remove water and dry the carpet.

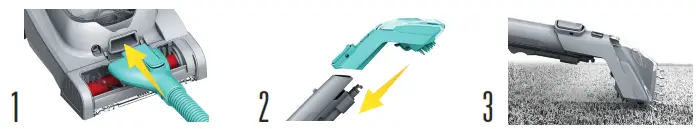

HOW TO USE: ATTACHMENT AND 2-IN-1 TOOL

HOOVER FH11300 Carpet and Upholstery Cleaner - 4
To clean with the hose tool remove
the nozzle cover and plug in firmly.
Slide the 2-in-1 tool onto the hose.Spray and scrub the area, then
slowly pull toward you to extract.

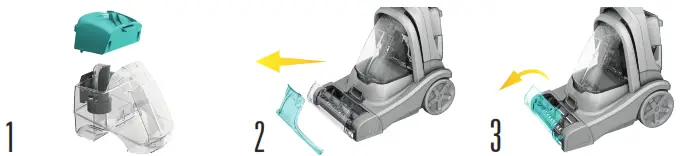

EASY CLEANUP AND MAINTENANCE: AFTER EACH USE

Remove the tank lid to empty and rinse the tank.Remove the Nozzle Cover and
rinse.
Flip the brush roll window forward to remove any debris
from the brush roll.

ALLOW PARTS TO AIR DRY BEFORE STORING.
961003535-R0
