ES4000 Carpet and Upholstery Cleaners
User Manual
Picture shown may not represent model quoted
TOTAL CARPET CARE.
One machine does it all, faster.

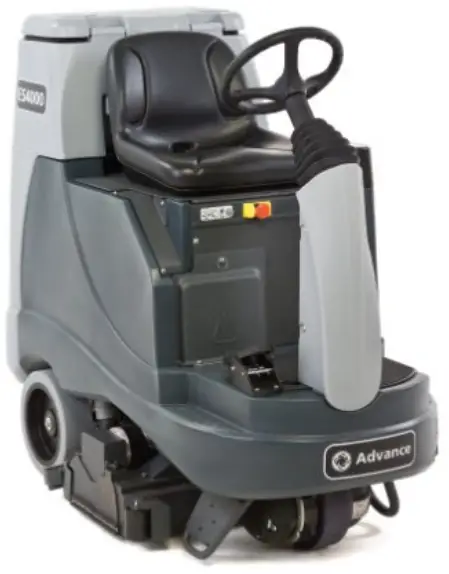

The Nilfisk ES4000 Total Carpet Care System offers complete versatility, from everyday carpet maintenance to deep restorative extraction.
You want productivity.
Upgrade from a fleet of dedicated use carpet extractors to a single high efficiency rider that offers vastly more productivity, better equipment utilisation and faster cleaning. Realise productivity improvements of up to 400% over walk-behind sweepers and extractors. Clean better and clean smarter while reducing your total cost of ownership.
You want flexibility.
Only one machine offers the versatility to care for your carpeted surfaces according to your facility’s cleaning requirements. The Nilfisk ES4000 lets you perform everything from daily touch ups of high traffic areas, to lowmoisture cleaning, to periodic restorative extraction. All with complete control, simple, One-Touch™ operation and higher levels of productivity in one machine.
You want value.
Why maintain multiple machines to handle carpets when one capable machine can do it all? The ES4000 delivers value every day. Compare overall cost of ownership of the ES4000 with the carpet maintenance equipment you need now and you’ll find a Total Carpet Care solution.
- Cleans a 72cm wide path; maneuverable through standard 82cm doorways
- Superior turning, visual and clearance ability. The ES4000 turns within a 160 cm radius
- Dry Sweep Mode with vacuum suction, dust misting and two-stage filtration. Dust misting captures dust and eliminates the need for dust bags.
Dry Sweep up to 3,250 sq. metres per hour - Interim Mode allows cleaned carpet to be dry and ready for use in less than 30 minutes. Extract up to 1,300 sq. metres. per hour – a 400% improvement over walk- behind extractors
- Pre-Treat Mode using any Green certified products from pre-spray to encapsulates. Pre-treat up to 1,950 sq. metres per hour
- Restorative Extraction Mode deep cleans carpet, up to 650 sq. metres per hour
- At just 65 dB A, the ES4000 is no louder than a person speaking; This makes daytime cleaning possible without disturbing facility occupants
- Onboard detergent metering eliminates the need for pre-mixing solution and reduces chemical costs and environmental impact
- Refillable cartridges are interchangeable with your choice of chemicals, including pre-spray, detergent, and encapsulates
- The ES4000 Total Carpet Care System has received CRI-SOA certification
Standard equipment
| Included accessories | Ref. no. | Min. required | ES4000 | |
| Brush Cylindrical | ||||
| BRUSH ASSEMBLY | 56344191 | 0 | • | |
| BRUSH MULTI SURFACE 28 | 56314633 | 0 | • | |
| Ecoflex System | ||||
| CHEM BOTTLE ASSY-ECOFLEX | 56601545 | 0 | • | |
| Light Option | ||||
| KIT BEACON | 56601085 | 0 | • | |
| Model | ES4000 |
| Ref. no. | 56344210PA |
PRODUCT FEATURES
| Adjustable steering | ● |
| One-Touch™ control panel | ● |
| Open machine design | ● |
| Onboard Chemical Mixing System | ● |
| Refillable cartridges | ● |
| Four Distinct Operational Modes | ● |
| Technical specifications | ES4000 |
| CRI approval | Yes |
| Drive motor hp (W) | 780 W |
| Sound level | 65 dB A IEC 60704-1 |
| Brush motor hp (W) | Dual 373 W |
| Brush speed (RPM) | 900 RPM |
| Dimensions, L x W x H (cm) | 154x70x131 cm) |
| Electrical system | 24 V 4 X 6 V batteries |
| Vacuum motor | Dual 3 stage bypass |
| Solution capacity | 105 L |
| Recovery capacity | 105 L |
| Turning radius – left or right | 1.59 m |
| Cleaning path | 28 in Dual counter rotating brushes |
| Machine speed | 3.91 mph (6.3 kph) transport; 3.12 mph (4.8 kph) dry sweep; 275 ft/min (dry sweep mode); 130 ft/min (interim mode); 200 ft/min (pre-treat mode); 90 ft/min (restorative mode); |
| Waterlift/Airflow | 17 cm H2O / 42 L |
| Flow Rate Interim Cleaning Mode | 1.1 L/m |
| Flow Rate Restorative Mode | 3.0 L/m |
| Machine weight | 266 kg without batteries; 1,447 lb (656 kg) with batteries and full tank |
| Solution pump | Solution pumpFlow Rate Dry Sweep Mode |
| Flow Rate Dry Sweep Mode | 0.3 L/m |
Technical specifications
ES4000
| Flow Rate Pre-Treat Mode | 3.4 L/m |
| Vacuum shoes | Dual pivoting laminar flow 18 kg down pressure |
| Max. coverage per tank | 2023 m2 (interim mode); 380 m2 (restorative mode) |
| Accessories | Ref. no. | Min. required | ES4000 | |
| Other | ||||
| CARPET WAND12 | 56265305 | 0 | ||
| HAND TOOL ASSEMBLY | 56220109 | 0 | ||
 | KIT SEAT BELT | 56422162 | 0 | |
| UPHOLSTERY TOOL ASSY | 56220070 | 0 | ||
| Brush Cylindrical | ||||
| BRUSH ASSEMBLY | 56344191 | 0 | ||
| BRUSH MULTI SURFACE 28 | 56314633 | 0 | ||
| Ecoflex System | ||||
| CHEM BOTTLE ASSY-ECOFLEX | 56601545 | 0 | • | |
| Light Option | ||||
| KIT BEACON | 56601085 | 0 | • | |
All information provided in this document is subject to change without prior notice
