Philips Spk6307bl 3000 Series Wireless Keyboard User Manual

SPK6307BL 3000 Series Wireless Keyboard
User Manual

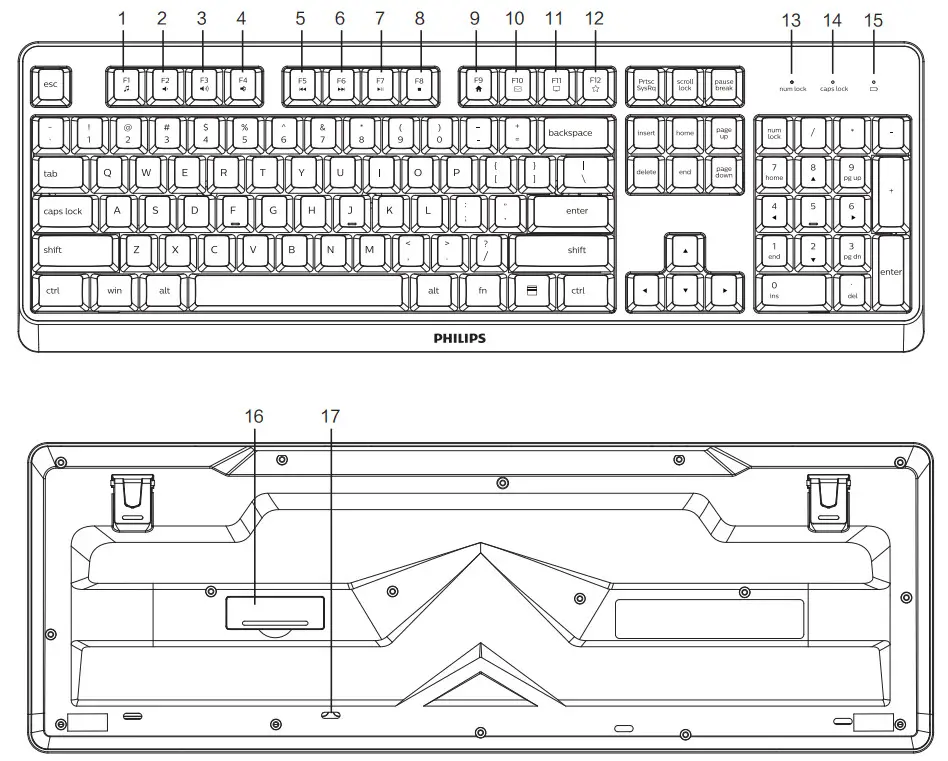

Function overview of the keyboard

1. fn+ : Media player
2.  fn+ : Volume –
3. fn+ : Volume +
4. fn+ : Mute
5. fn+ :Prey song
6. fn+ : Next song
7. fn+ : Play/Pause
8. fn+ ■ : Stop
9. fn+: Homepage
10. fn+:Email
11. fn+ : My computer
12. fn+ : Favorite
13. Number lock indicator
14. Caps lock indicator
15. Low battery indicator
16. Battery door
17. Drainage hole

Connection Guide

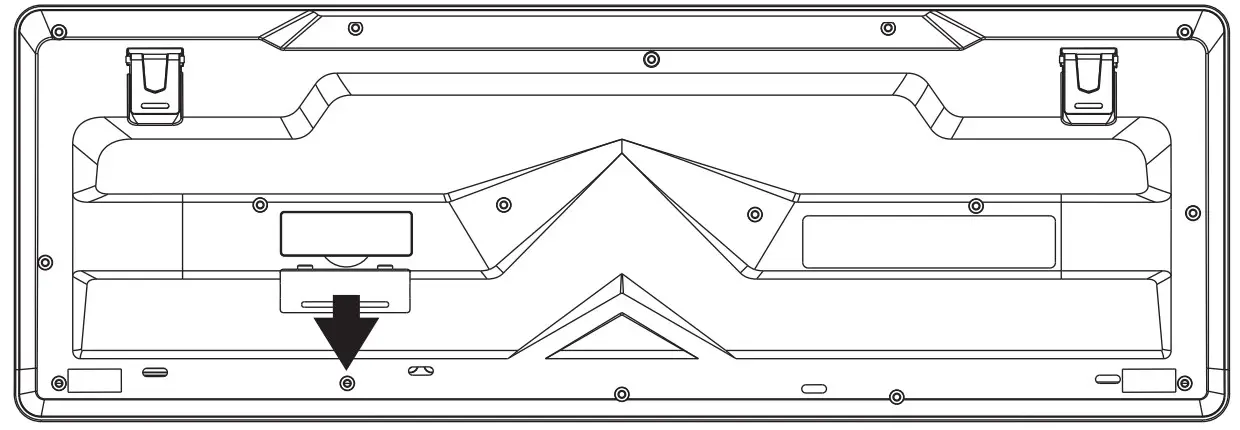

1. Push the battery door away.

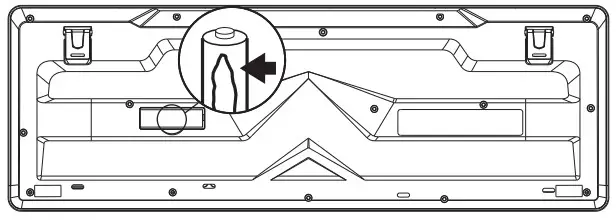

2. Pull off the battery insulating film and then close the battery door.

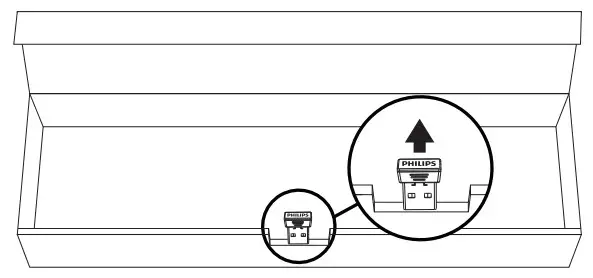

3. Take out the receiver.

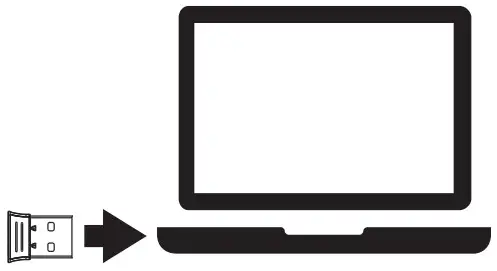

4. Plug the receiver into the USB port of a PC.

Packaging contents

1. Wireless keyboard
2. Wireless receiver
3. User manual and important information
4. 1*AA battery (inside keyboard)

System requirement

1. 1 x USB port
2. Windows® 7, Windows® 8, Windows® 10 or later, Android 3.2 and above; Mac OS 10.5 or later

Note: Multimedia functions are partially invalid in different OS versions.

Technical specifications

1. Connectivity: 2.4GHz wireless
2. Wireless Effective distance: 15m
3. Keyboard keys lifespan: 8 million keystrokes
4. Power supply: 1*AA Philips battery
5. Interface: USB wireless receiver
6. Product dimension: 442.5×151.4x31mm
7. Product weight: 500g ± 10g
8. Operating temperature range: 0 ° C to 40 ° C
9. Operating humidity range: 10% – 85%.

Troubleshooting

1. Make sure that the USB wireless receiver of the product is correctly plugged into the USB port of the computer.
2. Make sure the computer meets the minimum system requirement.
3. If the distance between the product and the receiver exceeds an effective range, please reduce the distance for better performance.

If you can’t solve the problem, please try to find the solution from the Philips website or the nearest retailer. Please do not disassemble the product by force.

Attention

1. Please use a dry and soft cloth to clean the product.
2. Do not fold or bend the product.
3. Do not disassemble the product by force.
4. Do not get in the rain or in the sun or fire.
5. Do not flush directly with water.

2022 © Top Victory Investments Limited. All rights reserved.
Philips and the Philips Shield Emblem have registered trademarks of Koninklijke
Philips N.V. and are used under license.
This product has been manufactured by and is sold under the responsibility of
Top Victory Investments Limited and Top Victory Investments Limited is the warrantor in relation to this product.
Specifications are subject to change without notice
Made in China
