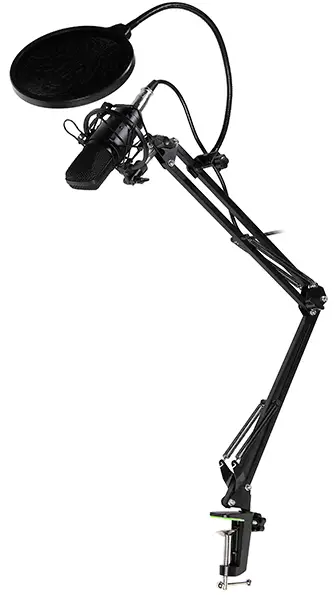

tracer Studio Pro

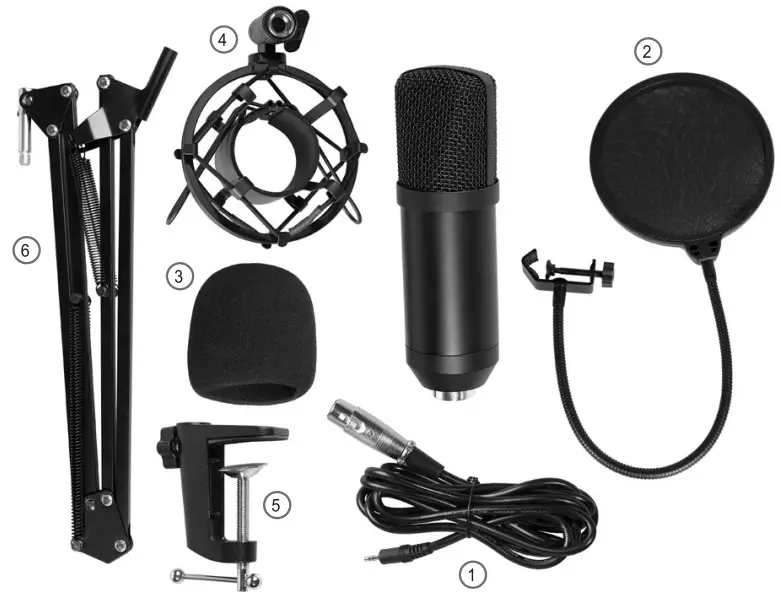

Additional equipment
- Microphone cable,
- Pop filter,
- Anti-wind Foam Cap,
- Shock Mount,
- Table Clamp,
- Microphone stand

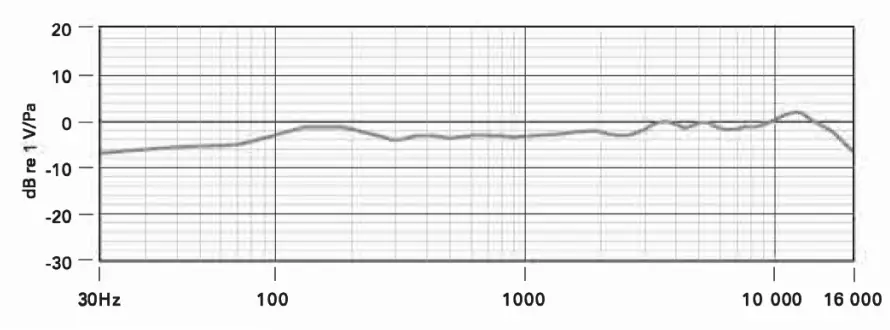

Frequency characteristic

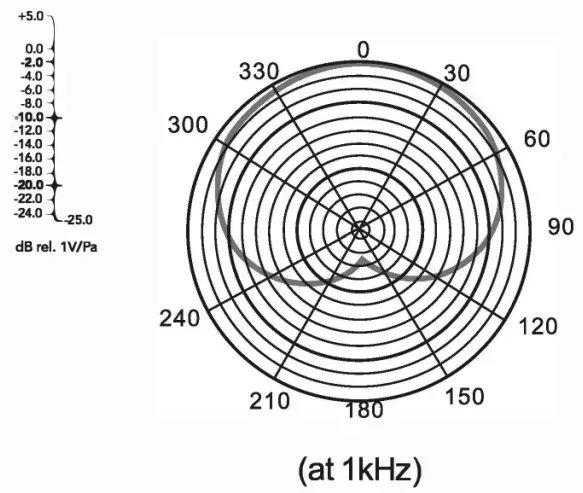

Directional characteristic

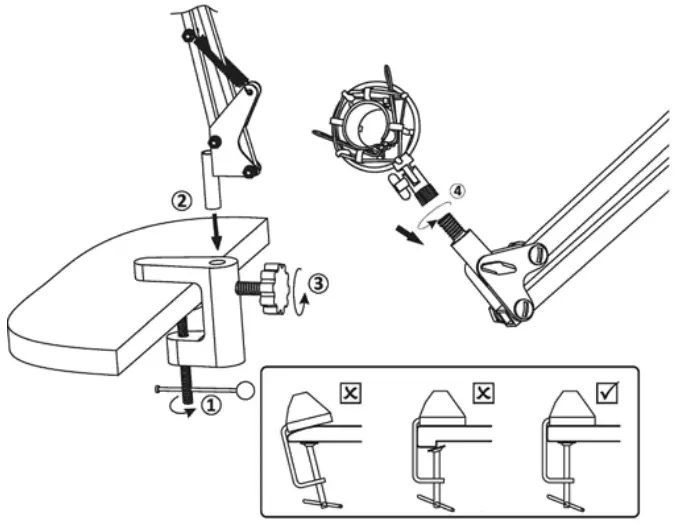

Install stand on table
- Screw the TABLE CLAMP on the edge of a table.
- Insert the ADJUSTABLE ARM into the hole.
- Fasten the screw.
- Fix Shock mount with Microphone stand.
Specifications
- Polar Pattern: Cardioid
- Frequency Response: 30Hz-16kHz
- Sensitivity: -38dB +/- 3dB (0dB=1V/Pa at 1 kHz)
- Equivalent Noise Level: 16dBA Max.
- Maximum SPL: 120dB
- S/N Ratio: 70dB
- Electrical Current: 3mA
- Voltage: 1.5V
- Body Weight: 7 .2oz/205g
- Color: Black
- Material: Metal
Symbol
Producent:
Megabajt Sp. z o.o., ul. Rydygiera 8, 01-793 Warszawa
