DRY IRON- INSTRUCTION MANUAL

SV 1260

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Contents hide

1 IMPORTANT SAFEGUARDS

2 Specific Instructions

3 CHARACTERISTICS AND STRUCTURE

4 OPERATING

5 MAIN TECHNICAL PARAMETERS

6 Documents / Resources

6.1 References

7 Related Posts

IMPORTANT SAFEGUARDS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
Children should be supervised to ensure that they do not play with the appliance.
Keep the appliance and the cable cord out of the reach of children less than 8 years old.
WARNING: In order to ensure your children‘s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
If the supply cord is damaged it must be repaired by the Authorized Service Agent.
Never pull on the cord when unplugging.
Do not use the unit with a damaged cord or plug, or if it is not working properly.
Do not handle the appliance with wet hands.
Never immerse the appliance in water or any other liquid.
Make sure the appliance has been unplugged before cleaning.
This appliance must be installed following the national regulations for electrical installations.
This appliance is for household use only.
In case that you need a copy of the instruction manual, you can find it in our website: www.orbegozo.com
WARNING: In case of misuse, there is a risk of possible injury.

Specific Instructions

The iron must not be left unattended while it is connected to the supply mains.
The appliance must be used and placed on a stable surface.
When placed on its stand, make sure that the surface on which the stand is placed is stable.
The iron should not be used if it has been dropped or if there are visible signs of damage..
Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
ATTENTION: Hot surface. The surface can remain hot during or after use, or when it is getting hot.

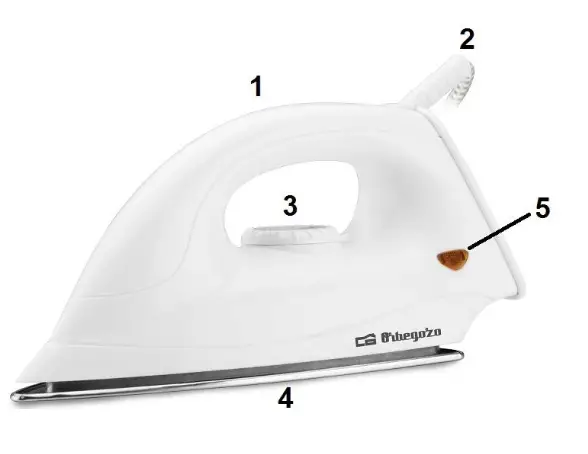

CHARACTERISTICS AND STRUCTURE

Handle
Cord Protect
Temperature controller
Soleplate
Indicator light

OPERATING

Set the temperature control to the suitable position.
Wait until the pilot light goes off and it comes on again. Then you can start ironing.
The pilot light will turn on and off during the ironing process. It does not affect to the process.
While the iron is hot and not in use, place it upright on a stable surface.
Once finished:
o Set the temperature control to the minimum level and unplug the device
o Let the iron gets cold during 30 minutes. Put the iron on its rear side.
o Store it in this position to prevent damage in the soleplate.

MAIN TECHNICAL PARAMETERS

Model	Voltage	Frequency	Power
SV 1260	220-240V	50/60Hz	1200 W

Disposal of old electrical appliances.
The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.
DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
