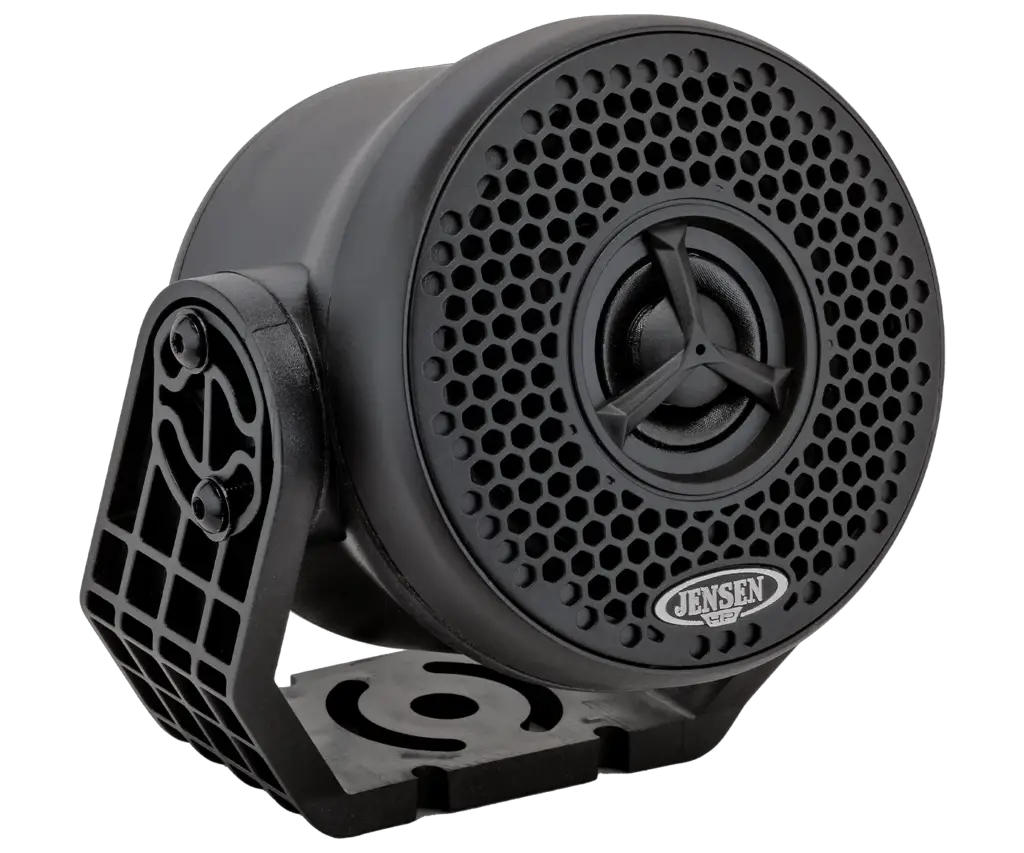

JENSEN JXHD30PS 3 Inch Universal Mount Two-Way Speakers User Manual
KEY FEATURES
- 60W (30W RMS) max handling power
- Waterproof bridged woofer/tweeter
- Polypropylene cone
- Ferro fluid cooling on tweeter
- Rubber suspension/surround
- Four-layer ASV voice coil
- U-bracket included
- Rear AMPS mounting pattern for additional mounting options
- Fixed grille
- Corrosion resistant (D1141 – 98)
- UV resistant (ATSM D4329)
- Dimensions: 4.1″ W x 4.1″ H x 3.11″ D
4.37″ W x 4.33″ H x 3.11″ D (w/ bracket)
Note: Bar-mount bracket not included – sold separately. Shown for demonstraion purposes only.

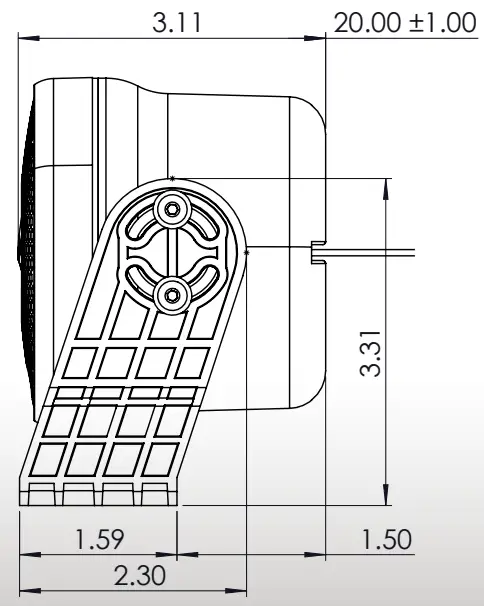

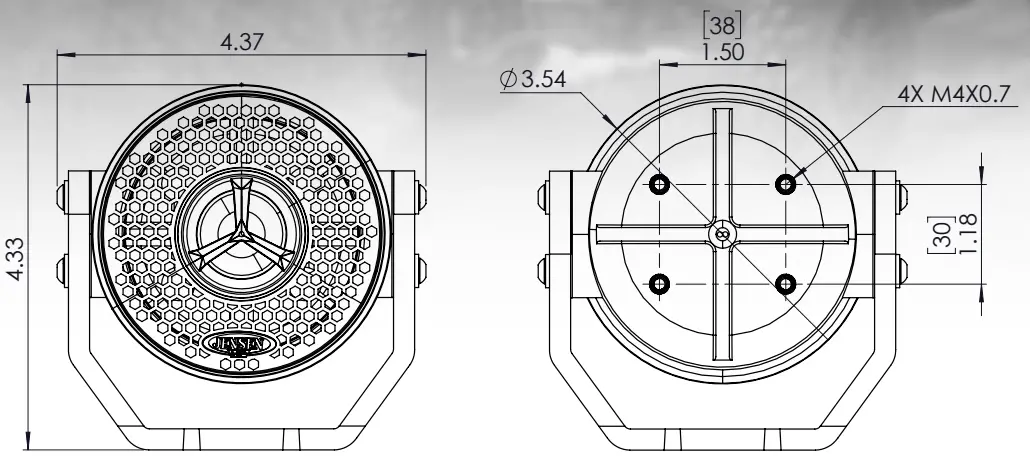

Dimensions
Specifications
General Specifications:
| Woofer Size | 3″ | |
| Woofer Material | Poly-propylene | |
| Tweeter Type | Dome | |
| Tweeter Material | Silk / Neodymium Magnet | |
| Voice Coil Size | 0.75″ | |
| Magnet Weight | 4.2 oz | |
| Impedance | 4 Q | |
| Temperature Range | -30°C – 70°C | -22°F – 158°F |
| Max RH | 100% | |
| Terminal Size | Positive – 0.205″ | Negative – 0.110″ |
Performance Specifications:
| Frequency Response | 90 Hz — 20 KHz |
| RMS Power Range | 30 W |
| Max Power | 60 W |
| SPL @ 1 W/ 1 M | 83 dB |
| Resonant Frequency | 150 Hz |
