• Risk of fire and electric shock.
• When positioning the appliance, ensure the supply cord is not
  trapped or damaged.
• Do not use multi-plug adapters and extension cables.

• Risk of injury or damage to the appliance.

INSTALLATION

Dimensions:

Location:

• This appliance is not intended to be used as a built-in
  appliance.
• In case of different installation from freestanding respecting
  space required in use dimensions, the appliance will function
  correctly but energy consumption might increase slightly.
• To ensure appliance’s best functionality, you should not
  install the appliance in a place with direct sunlight.
• Do not install the appliance close to radiators or cookers,
  ovens, or hobs, unless otherwise specified in the installation
  instructions.
• Make sure that air can circulate freely around the back of the
  cabinet.
• This appliance should be installed in a dry, well ventilated
  indoor position.
• To ensure best performance, if the appliance is positioned
  below an overhanging wall unit, the minimum distance between the
  top of the cabinet shall be maintained. Ideally, however, the
  appliance should not be positioned below overhanging wall units.
  One or more adjustable feet at the base of the cabinet ensure that
  the appliance stands level.

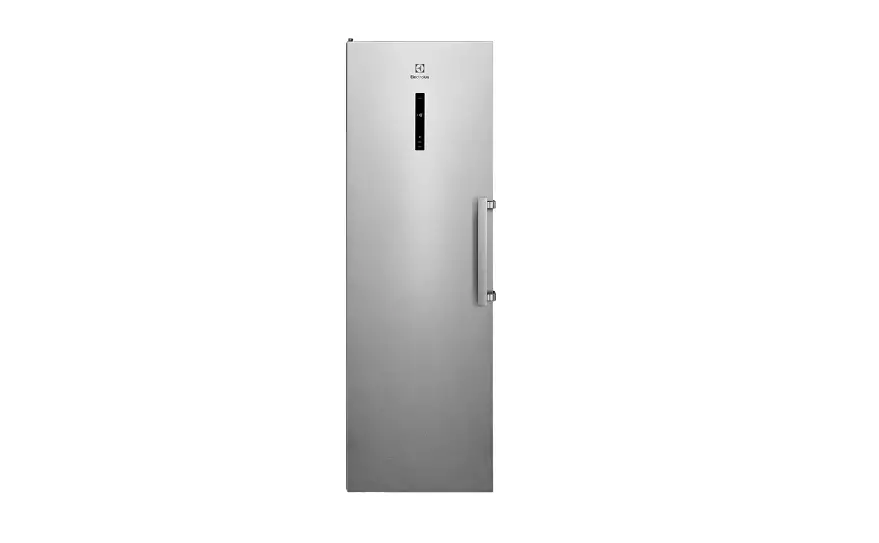

KUS1AF28W KUS1AF28X
EN Freezer

User Manual

2 www.electrolux.com
CONTENTS
1. SAFETY INFORMATION…………………………………………………………………………2 2. SAFETY INSTRUCTIONS……………………………………………………………………….4 3. INSTALLATION…………………………………………………………………………………….. 6 4. CONTROL PANEL………………………………………………………………………………… 9 5. DAILY USE…………………………………………………………………………………………. 10 6. HINTS AND TIPS………………………………………………………………………………… 11 7. CARE AND CLEANING…………………………………………………………………………12 8. TROUBLESHOOTING…………………………………………………………………………..14 9. NOISES……………………………………………………………………………………………… 17 10. TECHNICAL DATA……………………………………………………………………………..17 11. INFORMATION FOR TEST INSTITUTES………………………………………………17 12. ENVIRONMENTAL CONCERNS…………………………………………………………. 18
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. Welcome to Electrolux. Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support
Register your product for better service: www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate.
Warning / Caution-Safety information General information and tips Environmental information
Subject to change without notice.
1. SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result

ENGLISH 3
of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. 1.1 Children and vulnerable people safety · This appliance can be used by children aged from 8
years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. · Children aged from 3 to 8 years are allowed to load and unload the appliance provided that they have been properly instructed. · This appliance may be used by persons with very extensive and complex disabilities provided that they have been properly instructed. · Children of less than 3 years of age should be kept away from the appliance unless continuously supervised. · Children should be supervised to ensure that they do not play with the appliance. · Children shall not carry out cleaning and user maintenance of the appliance without supervision. · Keep all packaging away from children and dispose of it appropriately. 1.2 General Safety · This appliance is for storing food and baverages only. · This appliance is designed for single household domestic use in an indoor environment. · This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels. · To avoid contamination of food respect the following instructions: ­ do not open the door for long periods;

4 www.electrolux.com

­ clean regularly surfaces that can come in contact with food and accessible drainage systems;
· WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
· WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
· WARNING: Do not damage the refrigerant circuit. · WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. · Do not use water spray and steam to clean the appliance. · Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects. · When the appliance is empty for long period, switch it off, defrost, clean, dry and leave the door open to prevent mould from developing within the appliance. · Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. · If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING! Only a qualified person must install this appliance.
· Remove all the packaging. · Do not install or use a damaged
appliance. · Follow the installation instructions
supplied with the appliance. · Always take care when moving the
appliance as it is heavy. Always use safety gloves and enclosed footwear.

· Make sure the air can circulate around the appliance.
· At first installation or after reversing the door wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
· Before carrying out any operations on the appliance (e.g. reversing the door), remove the plug from the power socket.
· Do not install the appliance close to radiators or cookers, ovens, or hobs,

unless otherwise specified in the installation instructions. · Do not expose the appliance to the rain. · Do not install the appliance where there is direct sunlight. · Do not install this appliance in areas that are too humid or too cold. · When you move the appliance, lift it by the front edge to avoid scratching the floor. · The appliance contains a bag of desiccant. This is not a toy. This is not food. Please dispose of it immediately.
2.2 Electrical connection
WARNING! Risk of fire and electric shock.
WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING! Do not use multi-plug adapters and extension cables.
· The appliance must be earthed. · Make sure that the parameters on the
rating plate are compatible with the electrical ratings of the mains power supply. · Always use a correctly installed shockproof socket. · Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Authorised Service Centre or an electrician to change the electrical components. · The mains cable must stay below the level of the mains plug. · Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation. · Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

ENGLISH 5
2.3 Use
WARNING! Risk of injury, burns, electric shock or fire.
The appliance contains flammable gas, isobutane (R600a), a natural gas with a high level of environmental compatibility. Be careful not to cause damage to the refrigerant circuit containing isobutane.
· Do not change the specification of this appliance.
· Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
· If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
· Do not let hot items to touch the plastic parts of the appliance.
· Do not put soft drinks in the freezer compartment. This will create pressure on the drink container.
· Do not store flammable gas and liquid in the appliance.
· Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
· Do not touch the compressor or the condenser. They are hot.
· Do not remove or touch items from the freezer compartment if your hands are wet or damp.
· Do not freeze again food that has been thawed.
· Follow the storage instructions on the packaging of frozen food.
· Wrap the food in any food contact material before putting it in the freezer compartment.
2.4 Care and cleaning
WARNING! Risk of injury or damage to the appliance.
· Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

6 www.electrolux.com
· This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.
· Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.
2.5 Service
· To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
· Please note that self-repair or nonprofessional repair can have safety consequences and might void the guarantee.
· The following spare parts will be available for 7 years after the model has been discontinued: thermostats, temperature sensors, printed circuit boards, light sources, door handles, door hinges, trays and baskets. Please note that some of these spare parts are only available to professional repairers, and that not all
3. INSTALLATION

spare parts are relevant for all models. · Door gaskets will be available for 10 years after the model has been discontinued.
2.6 Disposal
WARNING! Risk of injury or suffocation.
· Disconnect the appliance from the mains supply.
· Cut off the mains cable and discard it. · Remove the door to prevent children
and pets to be closed inside of the appliance. · The refrigerant circuit and the insulation materials of this appliance are ozone-friendly. · The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly. · Do not cause damage to the part of the cooling unit that is near the heat exchanger.

WARNING! Refer to Safety chapters.

3.1 Dimensions

D2

D1

ENGLISH 7
W1 W3
W2

D3

H1 H2

Overall dimensions ¹

H1 *

mm

W1

mm

D1

mm

1860 595 635

¹ the height, width and depth of the appliance without the handle
* including the height of the top hinge (10 mm)

Space required in use ²

H2

mm

W2

mm

D2

mm

1900 600 706

² the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air

Overall space required in use ³

H2

mm

1900

W3

mm

660

D3

mm

1213

³ the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air, plus the space necessary to allow door opening to the minimum angle permitting removal of all internal equipment

8 www.electrolux.com

3.2 Location
Refer to the installation instructions for the installation.
This appliance is not intended to be used as a built-in appliance.
In case of different installation from freestanding respecting space required in use dimensions, the appliance will function correctly but energy consumption might increase slightly.
To ensure appliance’s best functionality, you should not install the appliance in a place with direct sunlight. Do not install the appliance close to radiators or cookers, ovens, or hobs, unless otherwise specified in the installation instructions.
Make sure that air can circulate freely around the back of the cabinet.
This appliance should be installed in a dry, well ventilated indoor position.
To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet shall be maintained. Ideally, however, the appliance should not be positioned below overhanging wall units. One or more adjustable feet at the base of the cabinet ensure that the appliance stands level.
CAUTION! If you position the appliance against the wall, use back spacers provided or keep the minimum distance indicated in the installation instructions.

CAUTION! If you install the appliance next to a wall, refer to the installation instructions to understand the minimum distance between the wall and the side of the appliance where door hinges are to provide enough space to open the door when the internal equipment is removed (e.g. when cleaning).
This appliance is intended to be used at ambient temperature ranging from 10°C to 43°C.
The correct operation of the appliance can only be guaranteed within the specified temperature range.
If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Authorised Service Centre.
It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.
3.3 Electrical connection
· Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.
· The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.
· The manufacturer declines all responsibility if the above safety precautions are not observed.

3.4 Rear spacers
You can find the two spacers in the bag with documentation. 1. Release the screw. 2. Engage the spacer below the screw. 3. Turn the spacer to the right position. 4. Tighten again the screws.
2

ENGLISH 9
3.5 Door reversibility
Please refer to the separate document with instructions on installation and door reversal.
CAUTION! At every stage of reversing the door protect the floor from scratching with a durable material.

1 3 4

4. CONTROL PANEL

1

2

34

5

1 Alarm light 2 Power indicator light 3 FastFreeze indicator 4 FastFreeze / Alarm reset button 5 Temperature regulator
4.1 Switching on
1. Insert the plug into the wall socket. 2. Turn the temperature regulator
clockwise to a medium setting. Power indicator and alarm lights will illuminate.
4.2 Switching off
To turn off the appliance, turn the temperature regulator to position.

The power indicator light remains switched on until the appliance is disconnected from the power socket.
4.3 Temperature regulation
The temperature is regulated automatically. However, you can set a temperature inside the appliance yourself.
Choose the setting keeping in mind that the temperature inside the appliance depends on:
· room temperature, · frequency of opening the door, · quantity of food stored, · appliance location. A medium setting is generally the most suitable one.
To operate the appliance:

10 www.electrolux.com
1. Turn the temperature regulator clockwise to obtain a lower temperature inside the appliance.
2. Turn the temperature regulator counterclockwise to obtain a higher temperature inside the appliance.
4.4 FastFreeze function
The FastFreeze function is used to perform pre-freezing and fast freezing in sequence in the freezer compartment. This function accelerates the freezing of fresh food and, at the same time, protects food products already stored in the freezer compartment from undesirable warming.
To freeze fresh food activate the FastFreeze function at least 24 hours before placing the food to complete prefreezing.
1. Activate the FastFreeze function by pressing the FastFreeze.
5. DAILY USE
5.1 Freezing fresh food
The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
To freeze fresh food it is not necessary to change the present setting.
To freeze fresh food activate the FastFreeze function at least 24 hours before placing the food to be frozen in the freezer compartment.
Store the fresh food evenly distributed in the first and second compartment or drawer from the top.
The maximum amount of food that can be frozen without adding other fresh food during 24 hours is specified on the rating plate (a label located inside the appliance).
When the freezing process is complete, return to the required temperature (see “FastFreeze Function”).
For more information refer to “Hints for freezing”.

The FastFreeze indicator switches on.
This function stops automatically after 52 hours. 2. It is possible to deactivate the function at any time by pressing the FastFreeze. The FastFreeze indicator switches off.
4.5 High temperature alarm
When there is a temperature increase in the appliance (for example due to an earlier power failure or opening of the door) the alarm light flashes and the sound is on. The sound can be switched off by pressing the alarm reset button. When normal conditions are restored the alarm light stops flashing and the sound turns off automatically.
5.2 Storage of frozen food
When activating an appliance for the first time or after a period out of use, before putting the products in the compartment let the appliance run at least 3 hours with the FastFreeze function switched on. The freezer drawers ensure that it is quick and easy to find the food package you want. If large quantities of food are to be stored, remove all drawers, except for the bottom drawer which needs to be in place to provide good air circulation. Keep the food no closer than 15 mm from the door.

ENGLISH 11

CAUTION! In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown on rating plate under “rising time”, the defrosted food must be consumed quickly or cooked immediately then cooled and then re-frozen. Refer to “High temperature alarm”.

5.3 Thawing
Deep-frozen or frozen food, prior to being consumed, can be thawed in the refrigerator or inside a plastic bag under cold water.
This operation depends on the time available and on the type of food. Small pieces may even be cooked still frozen.

6. HINTS AND TIPS
6.1 Hints for energy saving
· The internal configuration of the appliance is the one that ensures the most efficient use of energy.
· Do not open the door frequently or leave it open longer than necessary.
· The colder the temperature setting, the higher the energy consumption.
· Ensure a good ventilation. Do not cover the ventilation grilles or holes.
6.2 Hints for freezing
· Activate FastFreeze function at least 24 hours before placing the food inside the freezer compartment.
· Before freezing wrap and seal fresh food in: aluminium foil, plastic film or bags, airtight containers with lid.
· For more efficient freezing and thawing divide food into small portions.
· It is recommended to put labels and dates on all your frozen food. This will help to identify foods and to know when they should be used before their deterioration.
· The food should be fresh when being frozen to preserve good quality. Especially fruits and vegetables should be frozen after the harvest to preserve all of their nutrients.
· Do not freeze bottles or cans with liquids, in particular drinks containing carbon dioxide – they may explode during freezing.
· Do not put hot food in the freezer compartment. Cool it down at room

temperature before placing it inside the compartment. · To avoid increase in temperature of already frozen food, do not place fresh unfrozen food directly next to it. Place food at room temperature in the part of the freezer compartment where there is no frozen food. · Do not eat ice cubes, water ices or ice lollies immediately after taking them out of the freezer. Risk of frostbites. · Do not re-freeze defrosted food. If the food has defrosted, cook it, cool it down and then freeze it.

6.3 Hints for storage of frozen food

· Freezer compartment is the one

marked with

.

· The medium temperature setting

ensures good preservation of frozen

food products.

Higher temperature setting inside the

appliance may lead to shorter shelf

life.

· The whole freezer compartment is

suitable for storage of frozen food

products.

· Leave enough space around the food

to allow air to circulate freely.

· For adequate storage refer to food

packaging label to see the shelf life of

food.

· It is important to wrap the food in such

a way that prevents water, humidity or

condensation from getting inside.

12 www.electrolux.com
6.4 Shopping tips
After grocery shopping: · Ensure that the packaging is not
damaged – the food could be deteriorated. If the package is swollen or wet, it might have not been stored in the optimal conditions and defrosting may have already started. · To limit the defrosting process buy frozen goods at the end of your
6.5 Shelf life
Type of food
Bread
Fruits (except citrus)
Vegetables
Leftovers without meat
Dairy food:
Butter Soft cheese (e.g. mozzarella) Hard cheese (e.g. parmesan, cheddar)
Seafood:
Fatty fish (e.g. salmon, mackerel) Lean fish (e.g. cod, flounder) Shrimps Shucked clams and mussels Cooked fish
Meat:
Poultry Beef Pork Lamb Sausage Ham Leftovers with meat
7. CARE AND CLEANING
WARNING! Refer to Safety chapters.
7.1 Cleaning the interior
Before using the appliance for the first time, the interior and all internal

grocery shopping and transport them in a thermal and insulated cool bag. · Place the frozen foods immediately in the freezer after coming back from the shop. · If food has defrosted even partially, do not re-freeze it. Consume it as soon as possible. · Respect the expiry date and the storage information on the package.
Shelf life (months) 3 6 – 12 8 – 10 1 – 2
6 – 9 3 – 4 6
2 – 3 4 – 6 12 3 – 4 1 – 2
9 – 12 6 – 12 4 – 6 6 – 9 1 – 2 1 – 2 2 – 3
accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brandnew product, then dried thoroughly.

CAUTION! Do not use detergents, abrasive powders, chlorine or oil-based cleaners as they will damage the finish.
CAUTION! The accessories and parts of the appliance are not suitable for washing in a dishwasher.
7.2 Periodic cleaning
The equipment has to be cleaned regularly:
1. Clean the inside and accessories with lukewarm water and some neutral soap.
2. Regularly check the door seals and wipe them clean to ensure they are clean and free from debris.
3. Rinse and dry thoroughly.
7.3 Defrosting of the freezer
CAUTION! Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. Do not use the supplied ice scraper to prepare food.
About 12 hours prior to defrosting set a lower temperature in order to build up sufficient chill reserve in case of any interruption in operation.
A certain amount of frost will always form on the freezer shelves and around the top compartment.
Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm.
1. Switch off the appliance or pull out electrical plug from the wall socket.

ENGLISH 13
2. Remove any stored food and put it in a cool place. CAUTION! A temperature rise of the frozen food packs during defrosting may shorten their safe storage life. Do not touch frozen goods with wet hands. Hands can freeze to the goods.
3. Leave the door open. Protect the floor from the defrosting water e.g. with a cloth or a flat vessel.
4. In order to speed up the defrosting process, place a pot of warm water in the freezer compartment. In addition, remove pieces of ice that break away before defrosting is complete. Use the supplied ice scraper for this purpose.
5. Insert the plastic scraper in the appropriate seating at the bottom centre, placing a basin underneath to collect the defrost water.
6. Dry the valve and slot in the rear wall: a. Remove the drawer. b. Pull out the valve from the slot in the rear wall.

14 www.electrolux.com
c. Leave the valve to dry at room temperature.
d. Dry the slot in the rear wall. e. Make sure the valve is
completely dry. Pull the valve into the slot. 7. When defrosting is complete, dry the interior thoroughly. Keep the ice scraper for the future use. 8. Switch on the appliance and close the door. 9. Set the temperature regulator to obtain the maximum coldness and run the appliance for at least 3 hours using this setting. Only after this time put the food back into the freezer compartment.
8. TROUBLESHOOTING

7.4 Period of non-operation
When the appliance is not in use for long period, take the following precautions:
1. Disconnect the appliance from electricity supply.
2. Remove all food. 3. Defrost the appliance. 4. Clean the appliance and all
accessories. 5. Leave the door open to prevent
unpleasant smells.

WARNING! Refer to Safety chapters.

8.1 What to do if…

Problem The appliance does not operate.
The appliance is noisy. Acoustic or visual alarm is on.
The compressor operates continually.

Possible cause

Solution

The appliance is switched Switch on the appliance. off.

The mains plug is not con- Connect the mains plug to nected to the mains socket the mains socket correctly. correctly.

There is no voltage in the mains socket.

Connect a different electri- cal appliance to the mains socket. Contact a qualified electrician.

The appliance is not sup- Check if the appliance

ported properly.

stands stable.

The cabinet has been re- Refer to “High temperature

cently switched on.

alarm”.

The temperature in the ap- Refer to “High temperature

pliance is too high.

alarm”.

Temperature is set incor- Refer to “Control panel”

rectly.

chapter.

Many food products were put in at the same time.

Wait a few hours and then check the temperature again.

ENGLISH 15

Problem

Possible cause

Solution

The room temperature is Refer to “Installation” chap-

too high.

ter.

Food products placed in the appliance were too warm.

Allow food products to cool to room temperature be- fore storing.

The door is not closed cor- Refer to “Closing the door”

rectly.

section.

The FastFreeze function is Refer to “FastFreeze func-

switched on.

tion” section.

The compressor does not start immediately after pressing the “FastFreeze”, or after changing the tem- perature.

The compressor starts af- ter a period of time.

This is normal, no error has occurred.

Door is misaligned or inter- The appliance is not level- Refer to installation instruc-

feres with ventilation grill. led.

tions.

Door does not open easily. You attempted to re-open Wait a few seconds be-

the door immediately after tween closing and re-open-

closing.

ing of the door.

Side panels of the appli- ance are warm.

This is a normal state caused by operation of the heat exchanger.

There is too much frost and ice.

The door is not closed cor- Refer to “Closing the door”

rectly.

section.

The gasket is deformed or Refer to “Closing the door”

dirty.

section.

Food products are not wrapped properly.

Wrap the food products better.

Temperature is set incor- Refer to “Control panel”

rectly.

chapter.

Appliance is fully loaded and is set to the lowest temperature.

Set a higher temperature. Refer to “Control panel” chapter.

Temperature set in the ap- pliance is too low and the ambient temperature is too high.

Set a higher temperature. Refer to “Control panel” chapter.

Water flows on the floor.

The melting water outlet is Attach the melting water not connected to the evap- outlet to the evaporative orative tray above the com- tray. pressor.

16 www.electrolux.com

Problem

Possible cause

Solution

Temperature cannot be set.

The FastFreeze function is switched on.

Switch off FastFreeze function manually, or wait until the function deacti- vates automatically to set the temperature. Refer to “FastFreeze function” sec- tion.

The temperature in the ap- The temperature is not set Set a higher/lower temper-

pliance is too low/too high. correctly.

ature.

The door is not closed cor- Refer to “Closing the door”

rectly.

section.

The food products’ temper- Let the food products tem-

ature is too high.

perature decrease to room

temperature before stor-

age.

Many food products are stored at the same time.

Store less food products at the same time.

The thickness of the frost Defrost the appliance. is greater than 4-5 mm.

The door has been opened Open the door only if nec-

often.

essary.

The FastFreeze function is Refer to “FastFreeze func-

switched on.

tion” section.

There is no cold air circula- Make sure that there is

tion in the appliance.

cold air circulation in the

appliance. Refer to “Hints

and tips” chapter.

Power indicator light flash- An error has occurred in

es.

measuring the tempera-

ture.

Contact a qualified electri- cian or the nearest Author- ized Service Centre.

If the advice does not lead to the desired result, call the nearest Authorized Service Centre.
8.2 Closing the door
1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to installation instructions.
3. If necessary, replace the defective door gaskets. Contact the Authorised Service Centre.

9. NOISES

SSSRRR!

CLICK!

BLUBB!

ENGLISH 17 BRRR!
HISSS!

10. TECHNICAL DATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.
The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.
See the link www.theenergylabel.eu for detailed information about the energy label.

11. INFORMATION FOR TEST INSTITUTES

Installation and preparation of the appliance for any EcoDesign verification shall be compliant with EN 62552. Ventilation requirements, recess dimensions and minimum rear

clearances shall be as stated in this User Manual at Chapter 3. Please contact the manufacturer for any other further information, including loading plans.

18 www.electrolux.com

12. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

*

280158868-D-052023

www.electrolux.com/shop

References

• Electrolux
• Electrolux
• Electrolux
• Register Your Appliance – Product Registration – Electrolux
• APPLiA Europe | The new Energy Label | Belgium
