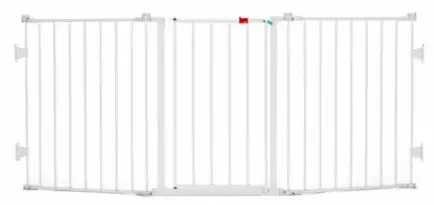

regalo 1175 Flexi Extra Wide Safety Gate
WARNING
- READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF GATE. KEEP INSTRUCTIONS FOR FUTURE USE
Before Assembly

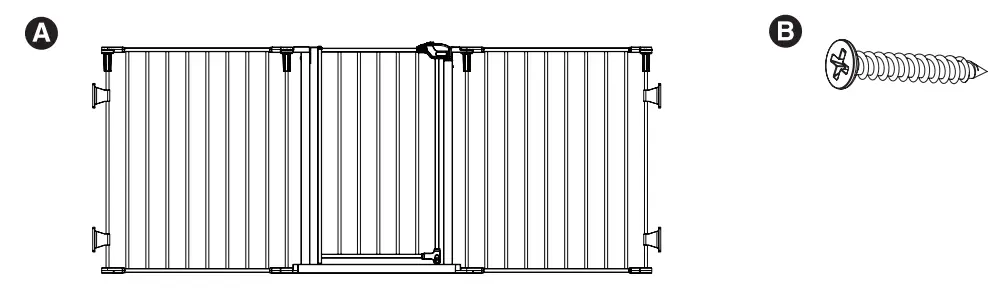

PLEASE CHECK TO MAKE SURE YOU HAVE THE FOLLOWING PARTS:
- A Folded Gate Frame and attached Wal Mounting Assembly (1)
- B Wall Mounting Screws (8)
NOTE
BEFORE USING PRODUCT
Read and follow all instructions carefully to ensure that your gate and extensions are properly installed. Improper installation Could result in the gate becoming unstable or dislodged from the doorway. The safety of your child is your responsibility. Please keep these instructions for your reference.
IMPORTANT
- The four mounting brackets must be used in securing the gate to the wall. These brackets prevent the gate from dislodging from its opening and becoming unstable.
- If hardware mounting to a surface other than drywall or wood, please consult with a professional about installation.

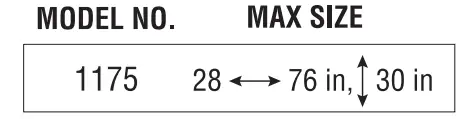

- The minimum width of this gate is 28 inches.
- The maximum width of this gate is 76 inches.
- The height of this gate is 30 inches.
CARE AND MAINTENANCE
Periodically check the gate for signs of damage, wear, or missing components. Do not use if any part is missing, worn or damaged. Check the gate regularly to ensure all the hardware and mountings are tightened. Do not use abrasive cleaners or bleach. Clean by sponging with warm water and mild detergent.
90 DAYS LIMITED WARRANTY
If, during the first 90 days after the consumer purchase of the item, under reasonable and non-commercial use and conditions of maintenance, it fails while owned by the original purchaser because of the quality of materials or The workmanship of finish and assembly, Regalo International, LLC, will replace or repair it at Regalo’s option. PROOF OF PURCHASE IS REQUIRED.
Assembling and Installing Your Gate

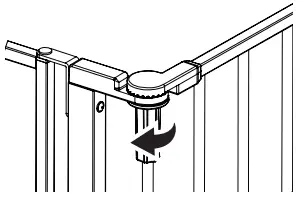

STEP 1
- Loosen the hinge knob in the clockwise direction. Doing this will let allow the gate to unfold.
STEP 2

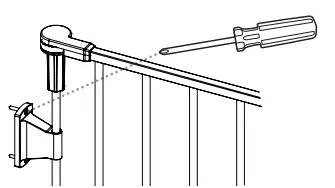

- Use a Phillips/crosshead screwdriver to fix the wall mounting bracket to the wall. Repeat for all four brackets.
STEP 3
- Arrange the panels to your desired configuration, then tighten all of the hinge knobs.

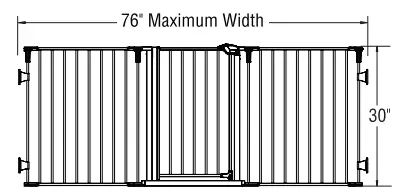

NOTE: This gate is designed to fit openings 28 inches (71 cm) to 76 inches (193.04 cm).
Operating the Door Latch

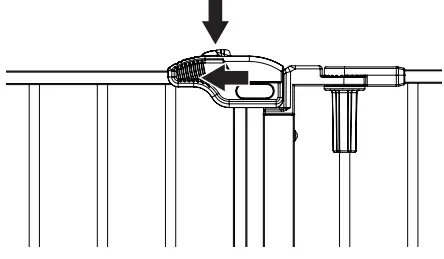

STEP 1
- Press the release button down on the handle. Slide the handle back towards the hinge.
NOTE: When closing the gate you must do the same operation.
STEP 2
- To open the gate, start with rotating the base lock in an upward direction. Do this on both sides of the door.
NOTE: You can rotate the base lock in either direction.
WARNING
- Install according to the manufacturer’s instructions.
- To prevent serious injury or death, securely install a gate or enclosure and use according to the manufacturer’s instructions.
- Children have died or been seriously injured when gates are not securely installed. Always install and use as directed using all required parts.
- Never stack gates on top of each other to form a taller barrier. This could result in serious injury or death.
- Stop using it when a child can climb over or dislodge the gate.
- Use only the locking mechanism securely engaged.
- To prevent falls, never use at top of the stairs.
- Never use to keep the child away from the pool.
- Intended for use with children from 6 months through 24 months.
- Always ensure the gate is resting against the floor before beginning installation.
- This product will not necessarily prevent all accidents. Never leave a child unattended.
- Check the gate regularly to see if all the hardware and mountings are tightened.
- Do not use if any component is missing or damaged.
- Adult assembly is required.
www.regalo-baby.com
Regalo International, LLC.
3200 Corporate Center Drive, Suite 100/ Burnsville, MN 55806, USA /, E.-U./, EE. UU. 866.272.5274 (U.S. only/aux Etats-Unis seulement/solo en EE. UU.) or/ ou/o 952.435.1080B Made in China/ Fabriqué en Chine /Hecha en China
