LED LFCG Floor LED Display
User Guide
Indoor LED LFCG
Floor LED Display
 | High Durability |
 | Easy Installation and Maintenance |
 | Excellent Usability |
 | Interactive Touch Screen |
LFCG
| Pixel Pitch | 3.91 mm |
| Brightness | 3,000 nit |
| Weight per Cabinet | 15.1 kg/Cabinet |
| Service Access | Front |
| IP Rating | IP65 |

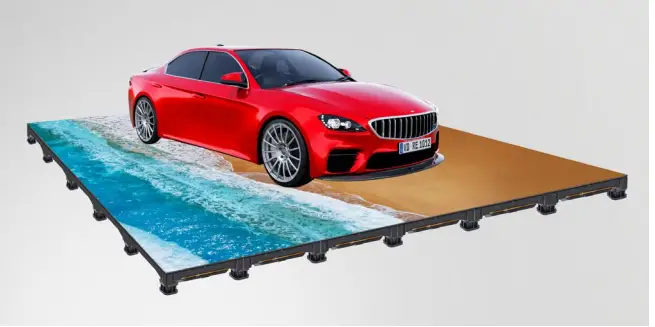

High Durability
LFCG is a unique display installed on the floor with high durability designed to load up to 2,500 kg/sqm.

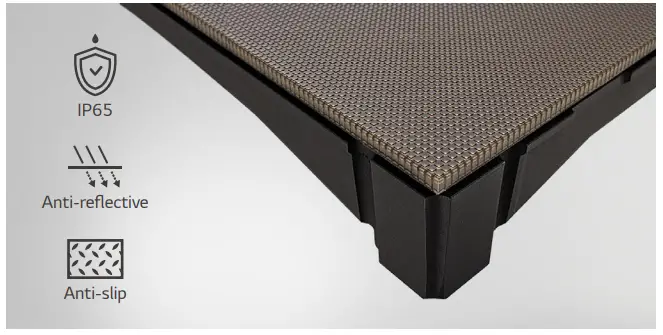

Excellent Usability
Surface safety when installing the screen on the floor (IP65 protective non-slip mat and anti-reflection surfaces) and high visual performance (with high contrast LED for uniform visual performance in black) are considered.
* As the surface is made of polycarbonate, it may be susceptible to scratches (especially against metal).

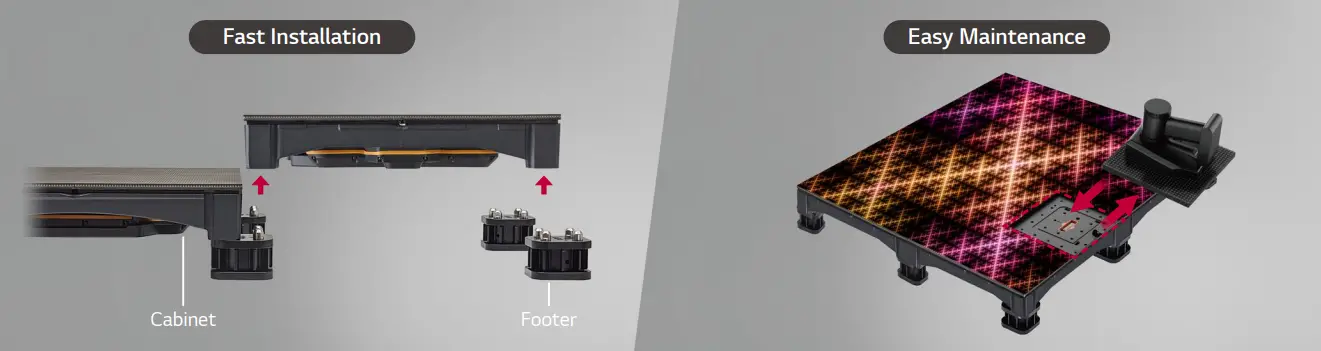

Easy Installation and Maintenance
Its simple product structure allows for easy installation and quick maintenance. You can quickly deploy and connect the cabinets with the foot support system without any tools. A simple flush control mechanism design is applied to keep the height level regardless of floor type. In addition, magnets attached to the LED module allow for easy maintenance, and hot-swapping* is able during the display operation.
* Hot Swapping : Swap module on-site during screen’s on the operation.

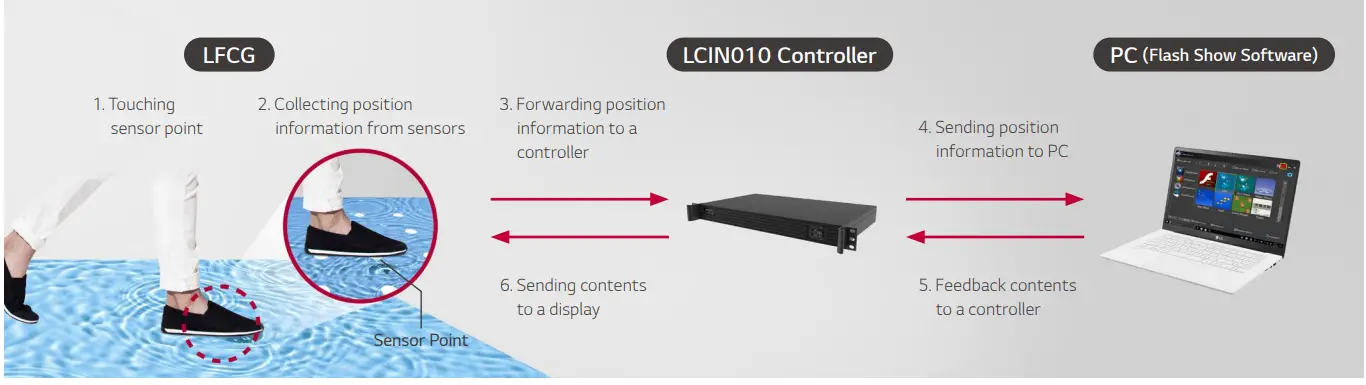

Interactive Touch Screen
Using sensor detection, the interactive touch screen can detect and react to movements, enabling response to the content on the LED display. This function is available by connecting with the LCIN010 controller. Our Flash Show Software enables you to set up your display configuration. It offers Flash & Game, Exhibition, Module testing, and Data forward modes. In addition, you can upload your own dynamic video content to LFCG panels through the Exhibition mode.
SPECIFICATIONS
LFCG039-GN
| Interactive Function | Yes | |
| Physical Parameters | Pixel Configuration | 3 in 1 SMD |
| Pixel Pitch (mm) | 4. | |
| Module Resolution (W x H) | 64 x 64 | |
| Module Dimensions (W x H, mm) | 250 x 250 | |
| Weight per Module (kg) | 0.90 | |
| No. of Modules per Cabinet (W x H) | 2 x 2 | |
| Cabinet Resolution (W x H) | 128 x 128 | |
| Cabinet Dimensions (W x H x D, mm) | 500 x 500 x 84.5 | |
| Cabinet Surface Area (m2) | 0.250 | |
| Weight per Cabinet (kg/Cabinet) | 15. | |
| Weight per Square Meter (kg/m9 | 64.0 | |
| Physical Pixel Density (pixels/m2) | 65,536 | |
| Flatness of Cabinet (mm) | ±0.5 | |
| Cabinet Material | Die Casting Aluminum | |
| Service Access | Front | |
| Optical Specifications | Max Brightness (After Calibration, nit) | 3,000 |
| Color Temperature (K) | 3,500-9,000 | |
| Visual Viewing Angle (Horizontal) | 160 | |
| Visual Viewing Angle (Vertical) | 160 | |
| Brightness Uniformity | e97% | |
| Cobr Uniformity | ±0.003 Cx,Cy | |
| Contrast Ratio | 5,000 | |
| Processing Depth NO | 14 | |
| Electrical Specifications | Ryser Consumption (W/Cabinet Max) | 240 |
| Power Consumption (W/Cabinet Avg.) | 80 | |
| Power Consumption (W/m2, Max) | 960 | |
| Power Supply (V) | 100 to 240 | |
| Frame Rate (Hz) | 50 / 60 | |
| Refresh Rate (Hz) | 3,840 | |
| Optical Specifications | Lifetime (Half Brightness) | 100,000 |
| Operating Temperature (t) | -10 to +45 | |
| Operating Humidity | 0-80% RH Non-condensing | |
| P Rating Front / Rear | P65 / iP 65 | |
| Certification | CE, FCC, EFL | |
| Controller | LCIN010 | |
* Specifications are subject to change without notice. Please make sure to check the product manual for details about product usage.
