IP67 BICM
Boxed Inline Conditioning Module
User Leaflet
General
The IP67 BICM is a rugged, waterproof transducer conditioning unit pre-wired and calibrated to a transducer.
There are no internal user adjustments.
The case should not be opened, this may damage the O-ring seals and allow fluid ingress.
This Leaflet describes IP67 BICM connected to any transducer. Depending on the transducer fitted there may be small changes in specification. See specification section or consult your supplier.

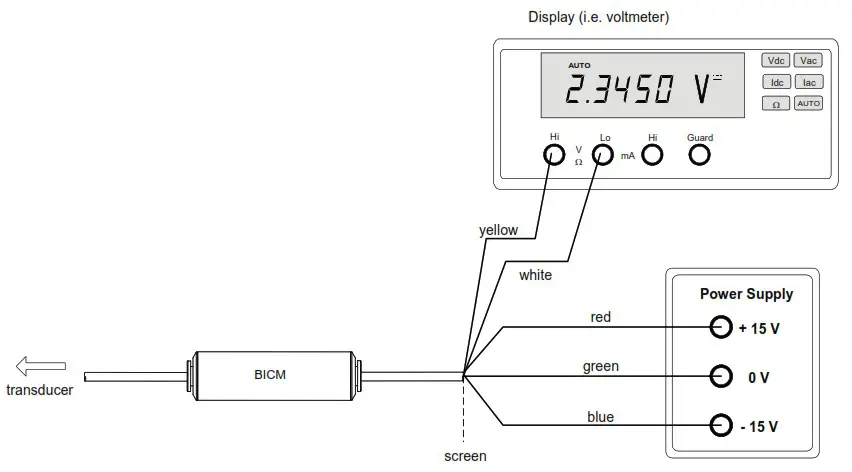

Connections
Specification
| MIN | TYP | MAX | UNITS | |
| Power Supplies | ||||
| Voltage | ±13.8 | ±15 | ±18 | VDC |
| Current | 8 | 15 | mA | |
| Protection | Reverse connection | |||
| Output Signal | ||||
| Output Range see note 1,2 | ±10 | VDC | ||
| Offset see note 1,2 | 0 | VDC | ||
| Linearity see note 1 | 0.5 | % reading. | ||
| Voltage Ripple | 0 | 14 | Vrms | |
| Load Current | 8 | mA | ||
| Bandwidth | 250 | Hz | ||
| Warm up time | 8 | minutes | ||
| Environmental | ||||
| Operating temperature | 0 | 70 | °C | |
| Storage temperature | -55 | 100 | °C | |
| IP rating | Designed to meet IP 67 | |||
| CE marking | Designed to meet EN50081 | |||
| Case size | 73 long x 20.6 dia. | mm | ||
| Output cable length see note 1 | 2 | m | ||
| Warm up time | 8 | minutes |
Notes
- Standard specification. May vary according to individual customer requirement.
- For best 0 V output adjust transducer position. Output voltage is more positive when transducer tip is pushed in.
Application Notes
0Vsignal (green) and 0Vsupply (white) are connected together at the BICM.
Use of these separate 0V connections will minimise power supply currents affecting signal output readings
It is usual to connect cable screen to power supply 0V.
This may not be the best option for all installations as it depends on the arrangement of 0V connections, ground connections etc.
IP67 BICM
Part No. 502101 Issue 6.1
