trike Fit Buds-BO88
User Manual
Product Description
Welcome to use triike Fit Buds — True Wireless Stereo Bluetooth Earbuds! This product adopts the industry’s advanced single-chip solution, with excellent sound quality and simple operation, which will bring different Surprises to your life, work and journey. You can simply connect a single earbud to make a call or listen to the mobile phone navigation tone when you are driving or riding so that the journey is safe and worry-free. It can also be used in pairs (stereo) to enter the wonderful world of music.

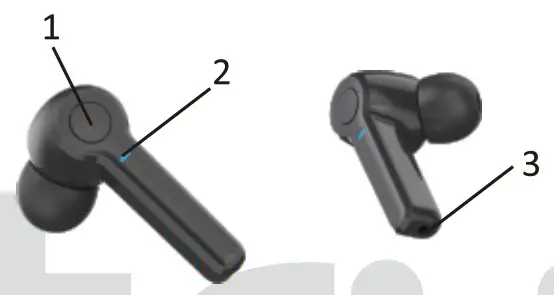

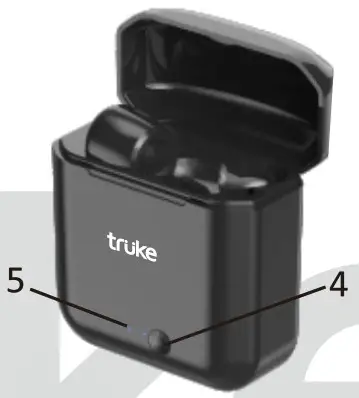

Overview
 |  |
- Multifunction button
- Led indicator Red/Blue
- Charging pins
- Charging ON/OFF button
- Charging Case battery level
Instructions for First Time Use
- Place earbuds back in charging Case to charge for 1 hour.
- Follow pairing procedure to pair earbuds with bluetooth device.
Pairing procedure:
- Take out the earbuds from charging case at the same time, both earbuds will start blinking with red/blue led. In few seconds both earbuds’ red/blue led stop blinking, which means pairing succeeded and both earbuds will flash with blue light after successful pairing.
- Turn on mobile’s Bluetooth and search for new device. Then select trike Fit buds, now your Fit buds earbuds will be paired with mobile and ready to use.
| Power on | Press and hold the button for 2 seconds to turn it on, the red and blue lights flash. |
| Earbuds Pairing | 1. Earbuds will automatically start & pair when it is taken out from the charging Case; 2. Connected Tone is played when earbuds and mobile phone connect successfully; 3. Disconnected Tone is played when earbuds and mobile phone is disconnected. |
| Power off | Earbuds turns off automatically when earbuds are placed into the charging case; Both earbuds turn off when any earbud is pressed for more than 5 seconds; |
| Operating language | English |
| Bluetooth name | truke Fit Buds |
| Play/ Pause | Press the earbuds button |
| Call answering | Press the earbuds button |
| Disconnect incoming call | Press and hold the earbuds button for 2 seconds |
| Earbuds Remaining Battery | Earbuds Remaining Battery will be displayed on supported mobile device |
| Low Battery Prompt | Red LED starts flashing when voltage is lower than 3.2v |
| Previous & next song | Previous song: Press left earbuds for 2 seconds Next song: Press right earbuds for 2 seconds |
| Volume adjustment | Not Supported through Earbuds |
| Charging indication | Earbuds Charging: The red light of Earbuds is always on while charging The blue light will normally go on for 30 seconds after the earbuds is fully charged When the charging case is charging, the red light of the charging case flashes, and the red light will always be on after it is fully charged. When the Charging Case Battery is fully charged, the white light turns always on |
Troubleshooting
- Unable to start Charge the earbuds for 30 minutes and then turn it on;
- Earbuds Cannot Pair Goto the mobile’ s Bluetooth menu and unpair the trike Fit Buds. Pair the device again.
- Cannot Connect to Mobile Device Turn off the earbuds by putting them in charging case. Turn off Mobile Device Bluetooth function then turn it On again. Take out the earbuds from Case and Connect.
- The earbuds can’t be charged Make sure earbud are placed in Case with right orientation, gently press them in place.
Performance Parameters
| Model Number | B088 | Charging input | 5V 1A |
| Bluetooth version | 5.0 | Operating Voltage | 3.7V |
| Talk—Time | 3 hours* | Headphone Battery | 40nnAh 3.7V |
| Music Playback Time | 3 hours* | Charging Case Battery | 500mAh 3.7V |
| Standby duration | 72 hours* | Charging Interface | Micro USB |
| Net weight | 45 grams | Charging time | Earbuds charging time:90 minutes* Charging case charging time : 150 minutes* |
| Waterproof Level | Splashproof | Dimension | 64×43.5×29 mm |
*Talk-Time, Music Playback & Charging Time are mentioned under ideal lab conditions. Under daily usage, actual time may vary.
Precautions
- Do not use this product under high temperature, high humidity, high cold, high dust, high electromagnetic radiation, and lightning environment;
- Do not use non-original charging accessories to charge;
- Charging time should not exceed 3 hours;
- Recharge every 30 days when not in use for a long time;
- Do not exceed 60 decibels when used for a long time to avoid hearing damage;
- Do not disassemble by any unauthorized personnel, otherwise, warranty will be void;
- After the product has expired, it can be sent to a professional recycling agency. Do not discard it at will, so as Not to pollute the environment;
customer Care:
For any queries/complaints, please feel free to WhatsApp us on +91-—9354170767 Or
Write to us at [email protected].
Mandatory Registration is required at www.truke.in within 10days of purchase.
Thank You
