Gymax Gym04115 On Fire Truck Fire Engine Battery Powered User Manual

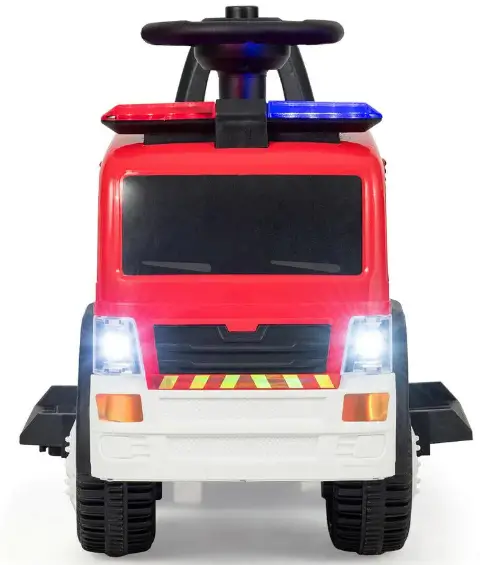

GYMAX GYM04115 On Fire Truck Fire Engine Battery Powered

Contact Us!
Do NOT return this item.
Contact our friendly customer service department for help first.

Before You Start

• Please read all instructions carefully.
• Retain instructions for future reference.
• Seperate and count all parts and hardware.
• Read through each step carefully and follow the proper order.
• We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
• Always place the product on a flat, steady and stable surface.
• Keep all small parts and packaging materials for this product away from babies and children as they potentially pose a serious choking hazard.

About Your New Vehicle

• On the purchase of your new Ride-On.
• This ride-on car will provide your child with many miles of riding of enjoyment. To help assure you and your rider a safe ride we ask you to please read this manual carefully, and keep it for future reference.

Specification

• Suitable age: 36-95 months
• Battery: 6V4.5AH x1
• Charge time: 8~12 hours
• Charge: Input: depend on local voltage
• output: DC6V500mA
• Load capacity: 20 kg
• Size of car: 68x40x45cm
• Speed: 3km/h

PREVENT INJURIES AND DEATHS:

• NEVER LEAVE CHILD UNATTENDED. ADULT DIRECT SUPERVISION IS REQUIRED. Always keep child in view when child is in vehicle.
• This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.
• Protective equipment should be worn.
• Not to be used in traffic.
• This toy is unsuitable for children under 36 months due to its maximum speed; Maximum user weight is 20 kg.
• This toy has no brake.

Disposal Of Battery

• Your sealed lead-acid battery must be recycled or disposed of in an environmentally sound manner.
• Do not dispose of your lead-acid battery in a fire. The battery may explode or leak.
• Do not dispose of a lead-acid battery in your regular, household trash. The incineration, land filling or mixing of sealed lead-acid batteries with household trash is prohibited by law.

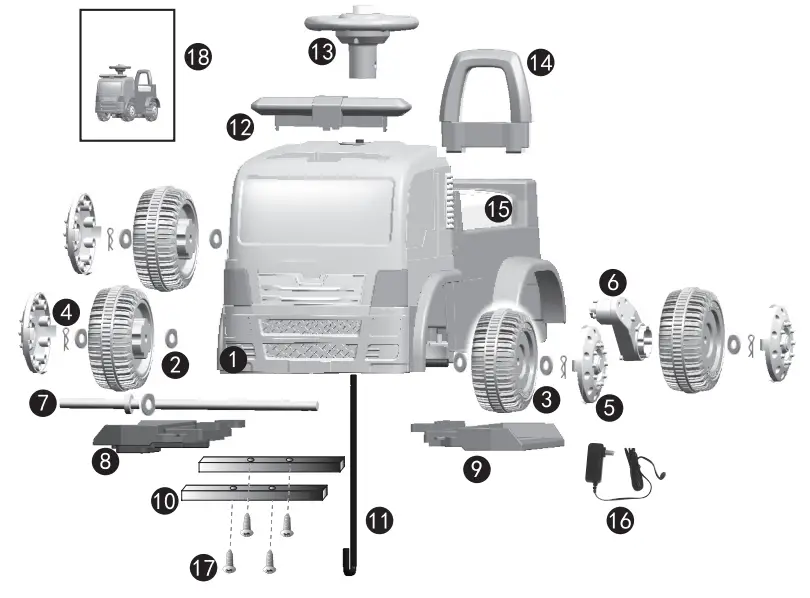

Part name

How to assemble

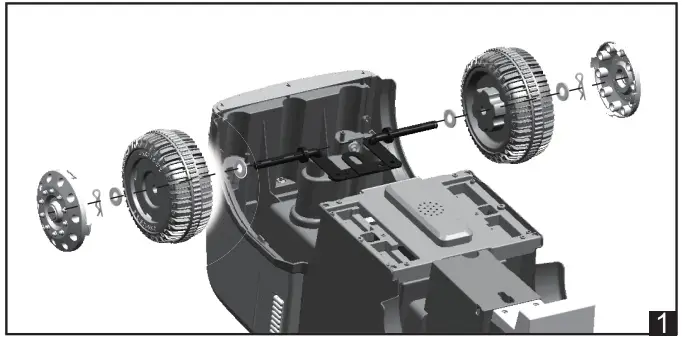

1. Add gasket, wheel, gasket, cotter and wheel cover to each side of steering wheel one by one. ( Figure 1 )

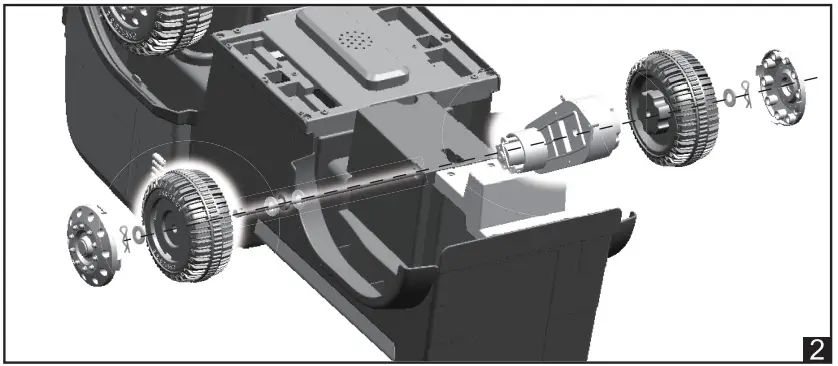

2. Add one gasket to rear axle from the right side, insert rear axle to car body. Add motor to the right side and add gasket to the left side. Then add wheel, gasket, cotter and wheel cover one by one. ( Figure 2 )

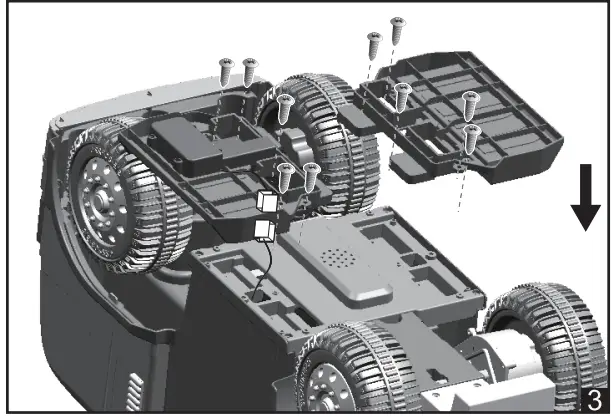

3. Connect two terminals of car body and foot rest, then assemble two foot rest according to the arrow and use 10pcs M4*12 screw to tighten.( Figure 3 )

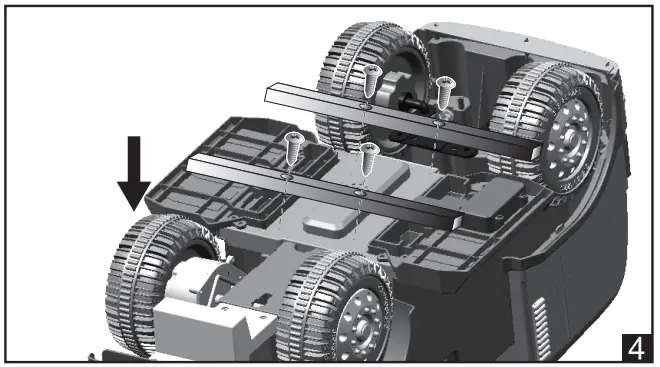

4. Assemble two square tubes to the car body according to the arrow, then use 4pcs M4*12 screw to tighten. ( Figure 4 )



5. Insert the steering lever to the car body according to the arrow, then turn over body by holding up steering lever to make it fall. ( Figure 5 )

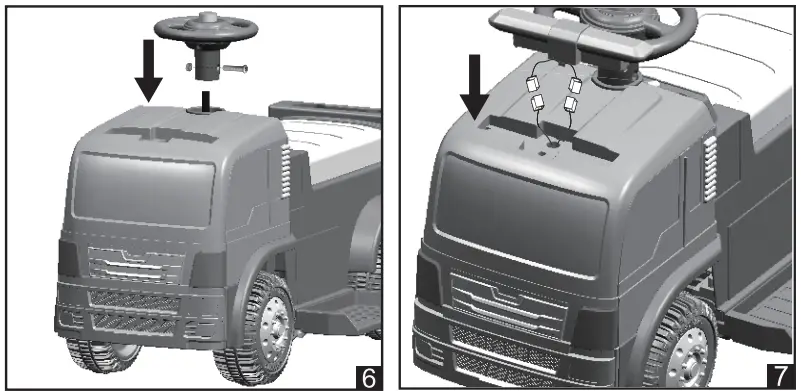

6. Insert steering wheel into the steering lever, then use screw to tighten.( Figure 6 )
7. Connect two terminals of the alarm lamp and car body, insert alarm lamp to the car body according to the arrow. ( Figure 7 )

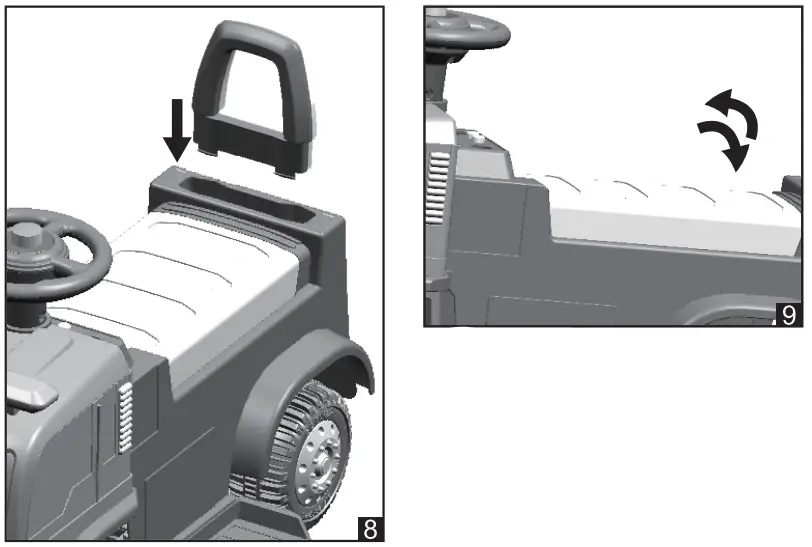

8. Insert the back rest in the car body.( Figure 8 )
9. Open the seat according to the arrow. ( Figure 8 )



10. Connect the red line to the red terminal of battery. ( Figure 10 )

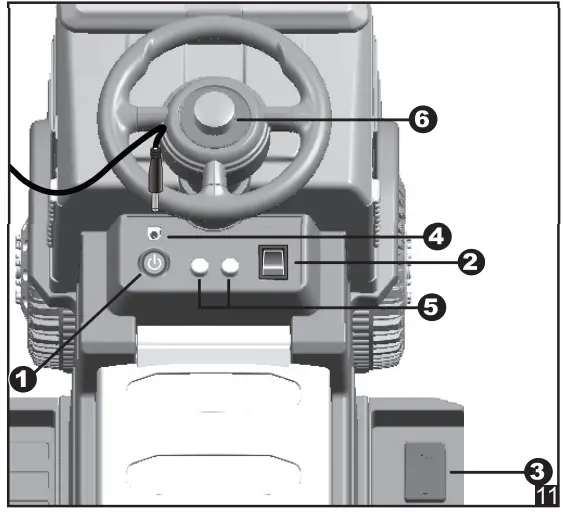

    1. Turn on the power switch, and the vehicle is powered on.
    2. The forward and backward switch controls the car to go forward and backward.
    3. Press and hold the foot switch to start the car, release it to stop the car.
    4. The charging hole is located above the power switch. When the car is out of power, insert the charger into the hole to charge. The vehicle has no function in the charging state.
    5. Press the music horn or the alarm button to make a sound.
    6. Press the air horn to make a sound.

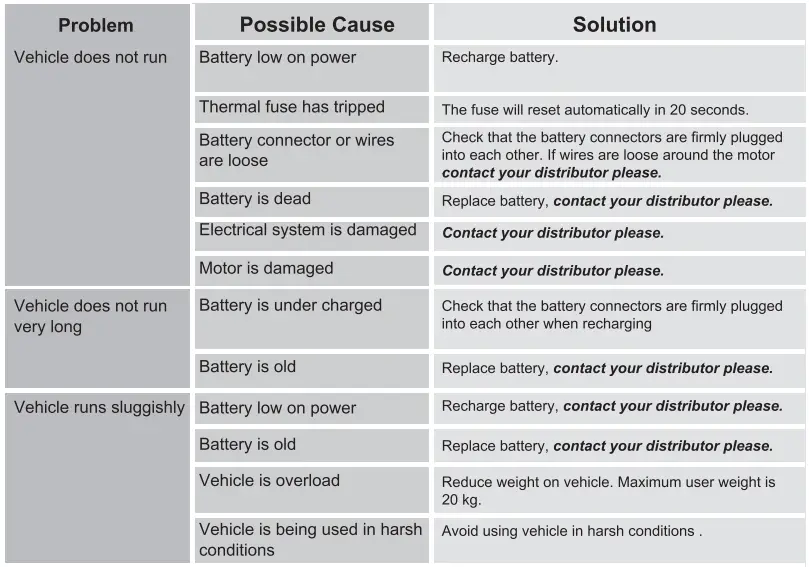

Troubleshooting Guide
