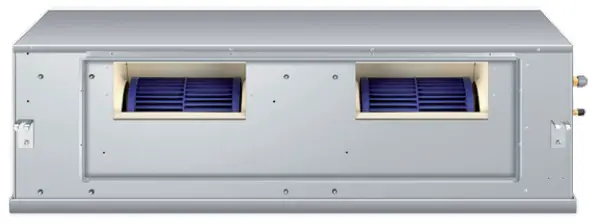

AD100S2SH5FA-SET High Static Ducted

High Static Ducted systems offer total heating and cooling to every room, with an indoor unit hidden in the ceiling and discreet vents.

Precise temperature control, with an operational range from -20°C to 50°C
Designed to fit the standard truss spacings of Australian homes for simple installation
Remote control using the SmartHQ™ app when the optional Wi-Fi accessory is installed
Blue Fin coating on the outdoor condenser helps to prevent environmental corrosion

FEATURES & BENEFITS

Comfort in all conditions
Control the humidity level inside using the Dry function. By removing excess moisture in the air, you can create a comfortable and healthy environment that feels cooler – all while using less energy than Cool mode.
Control from anywhere
Installing the optional Wi-Fi accessory lets you control your air conditioning from your phone with the SmartHQ™ app, or use voice control with a smart home device.
Efficient and effective
The DC fan motor is more energy efficient than a standard AC motor and it is also highly adjustable. This means you can adjust the static pressure and airflow for optimal performance to suit your layout.
Simple installation
Designed to fit the standard dimensions of Australian homes, the indoor unit easily fits between roof truss spacings of 600mm. Plus, the removable panels make for easy installation and servicing.
Peace of mind
Moisture from the air is collected during normal operation. The High Static Ducted indoor unit includes a second condensate draining tray to collect liquid overflow in case of a blockage, protecting your ceiling from damage.
Central controller
With an optional central controller, you can control individual or connected units from a simple-to-use display. Schedule your air conditioning to turn on to create the perfect environment just before you wake up, or switch off at the end of the workday.

SPECIFICATIONS

Capacity
Cooling capacity (kW)	10.0kW
Heating capacity (kW)	11.5kW
Consumption
COP	3.61
EER	3.21
HSPF-RES (Hot/Average/Cold)	4.071 / 3.567 / 3.056
HSPFCOM (Hot/Average/Cold)	4.066 / 3.772 / 3.239
TCSPF-COM (Hot/Average/Cold)	4.753 / 4.839 / 5.171
TCSPF-RES (Hot/Average/Cold)	4.419 / 4.072 / 4.217
Features
24 Hour timer	•
Auto restart	•
Blue fin coils	•
DC inverter	•
DRED (Demand Response) ready	•
Dry mode	•
MEPS approved	•
Refrigerant factory charge	2.3
Self diagnostics	•
SmartAir2 WiFi adaptor	Optional
SmartHQ WiFi control	Optional
Standard controller	Optional
Voice control via Google Home or	•
Installation
Indoor unit model	AD100S2SH5FA
Indoor unit weight	59kg
Liquid line	Pipe size 9.52
Maximum pipe run	50
Outdoor unit model	1U100S2SN5FA
Outdoor unit weight	82kg
Suction line	Pipe size 15.88
Performance
Airflow	800L/S
DC inverter	•
R32 Refrigerant	•
Sound power SWL (outdoor)	68dBA
Sound pressure SPL (indoor)	45 / 41 / 37 / 33dBA
Sound pressure SPL (outdoor)	52dBA
Power Requirements
Power phase	1
Supply frequency	50Hz
Supply voltage	230V
Product dimensions
Indoor unit depth	490 mm
Indoor unit height	425 mm
Indoor unit width	1350 mm
Outdoor unit depth	370 mm
Outdoor unit height	965 mm
Outdoor unit width	950 mm
Warranty
Parts and labour	5 years
SKU	51578

The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
