QUICK REFERENCE GUIDE > ADH200H1ERG

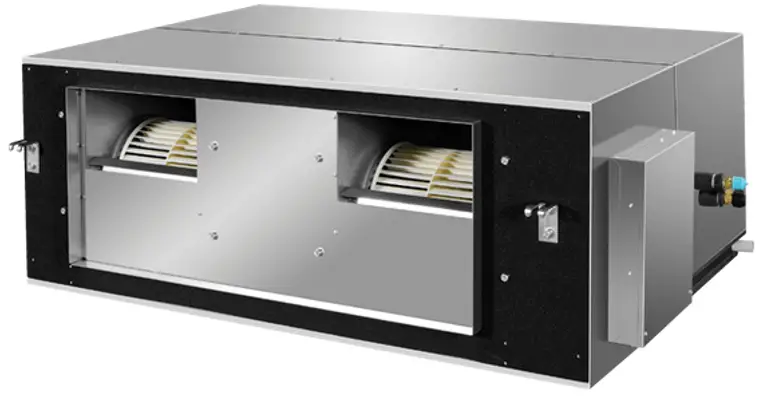

High Static Ducted, 20.5 kW
Ducted
White
User Guide
DIMENSIONS
| Height | 500 mm |
| Width | 1330 mm |
| Depth | 895 mm |
SPECIFICATIONS
| Capacity | |
| Cooling capacity (kW) | 20.5kW |
| Heating capacity (kW) | 22.8kW |
| Consumption | |
| COP | 3.8 |
| EER | 3.36 |
| Features | |
| 24 Hour timer | • |
| Blue fin coils | • |
| Compressor type | Twin rotary |
| DRED (Demand Response) ready | • |
| Motor type | DC motor |
| Sleep mode | • |
| Standard controller | YR-E17 |
| Wi-Fi controller compatible | • |
| Installation | |
| Liquid line | 12.7mm |
| Suction line | 19.05mm |
| Performance | |
| Airflow | 1200l/s |
| R410a refrigerant | • |
| Self cleaning evaporator | • |
| Sound power | 75dBA |
| Sound pressure | 58dBA |
| Working temperature cooling | -10°C to +46°C |
| Working temperature heating | -20°C to +24°C |
| Power Requirements | |
| Power supply | 380-415vac |
| Supply frequency | 50Hz |
| Product dimensions | |
| Depth | 895 mm |
| Height | 500 mm |
| Net weight | 160kg mm |
| Width | 1330 mm |
| Warranty | |
| Parts and labour | 5 years |
| SKU | 51421 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
