RS2484VR2K1 Integrated
Column Wine Cabinet, 24″
User Guide
RS2484VR2K1 Integrated Column Wine Cabinet, 24″
Series 11 | Integrated
Panel Ready | Right Hinge
Create a wine collector’s ultimate kitchen with a panel ready Column Wine Cabinet that seamlessly integrates into your kitchen design.
- A generous 91 bottle capacity, with optional display capability for your favorite bottles
- Two independent Variable Temperature Zones, each with four wine modes to create the best environment for any varietal
- Pair with Integrated Column Refrigerators and Freezers or install separately to suit your kitchen design
- Customize with your own cabinetry, or purchase our stainless steel door panel. Designed to fit flush, with minimal ⅛” gaps

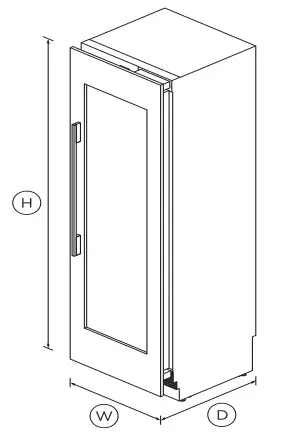

DIMENSIONS
| Height | 84″ |
| Width | 23 3/4″ |
| Depth | 24″ |
FEATURES & BENEFITS
The perfect fit
Customize your Integrated Column Wine Cabinet with a door panel that matches your kitchen cabinetry, or purchase our stainless steel door panel accessory. You can also choose your preferred handle style, opt for left or right hinge, as well as mix and match with other Integrated Column Refrigerator and Freezer models.
Precise temperature control
Four specially developed wine modes provide optimal temperatures for serving and cellaring different types of wine.
Red, White, Sparkling and Cellar modes ensure that each bottle gets the care it needs to be enjoyed at its best. You can also adjust manually in 1°F increments between 43-64°F.
Optimal wine care
To provide the optimal storage environment for your collection, your Integrated Column Wine Cabinet has been engineered to maintain a consistent temperature throughout both zones. An activated carbon filter in each compartment clears the air of pollutants to ensure your wine is perfectly cared for.
Reduced vibration
Vibration can dull flavor and cause other unwanted issues in wine. With a quiet, low vibration compressor, full-extension slides with white oak shelving, and other strategically chosen absorptive materials, the Integrated Column Wine Cabinet carefully maintains the flavor profile of every drop.
Customizable lighting
The tinted glass door effectively filters out UV light, allowing your wine to mature at its natural pace. LED lighting provides four beautiful illumination options to showcase the jewels of your collection, from a candlelit ambiance to a brilliant display lighting. Display mode automates the lighting cycle to show off your collection on special occasions.
Curate your collection
Showcase your collection with accessories for our Integrated Column Wine Cabinet. Independent cradles can be adjusted to create your ideal display angle, while a water-based pencil and aluminum labels offer a stylish way to catalog your wine.
SPECIFICATIONS
Accessories
| Accessories | |
| 24″ Stainless steel toe kick | Part 25390 |
| 30″ Stainless steel toe kick | Part 25392 |
| 42″ Stainless steel toe kick | Part 25394 |
| 48″ Stainless steel toe kick | Part 25396 |
| 54″ Stainless steel toe kick | Part 25398 |
| 60″ Stainless steel toe kick | Part 25400 |
| Joiner kit | Part 24985 |
| Professional round handle kit | Part 24982 |
| Professional square handle kit | Part 24980 |
| Round aluminium handle kit | Part 24981 |
| Square aluminium handle kit | Part 24979 |
| Stainless steel wine cabinet | Part 25742 |
| Wine display kit (four cradles | Part 25870 |
| Wine display label kit (14 labels | Part 25871 |
| Wine filter odour kit | Part 863974 |
| Capacity | |
| Number of bottles | 91 |
| Features | |
| Air filter lower compartment | • |
| Air filter upper compartment | • |
| Door alarm | • |
| Full extension display shelf | 1 |
| Full extension storage racks | 13 |
| LED ceiling lighting | • |
| LED side lighting | • |
| Low vibration compressor | • |
| Precision ball-bearing runner | • |
| Rated load for slide runners | 88kg |
| Smart Touch interface at | • |
| Soft-mounted wine racks | • |
| UV tempered glass door | • |
| Performance | |
| Active Smart™ wine care | • |
| Dual evaporator | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
| Variable temperature zones | 2 |
| Power requirements | |
| Rated current | 10A |
| Supply frequency | 60Hz |
| Supply voltage | 115V |
| Product dimensions | |
| Depth | 24″ |
| Height | 84″ |
| Width | 23 3/4″ |
| Warranty | |
| Parts and labor | 2 years |
| SKU | 25752 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
