Forno Ffffd1933-60s Pro Style Refrigerator And Freezer Instructions

FORNO FFFFD1933-60S Pro Style Refrigerator and Freezer

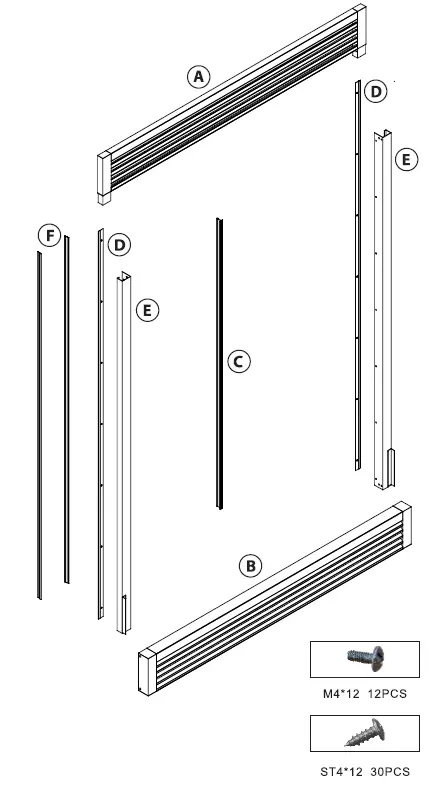

Parts Description

• A. rop grill
• B. Bottom grill
• C. Decorative partition
• D. External frame
• E. Outer frame
• F. Adhesive fixed bar

DOUBLE GRILL INSTALLATION

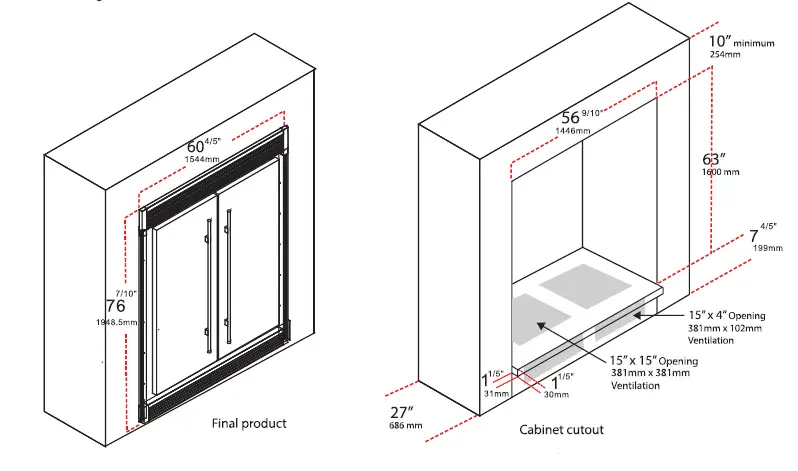

SUGGESTED CUTOUT SIZE

How to Install

1. Cabinet cutout

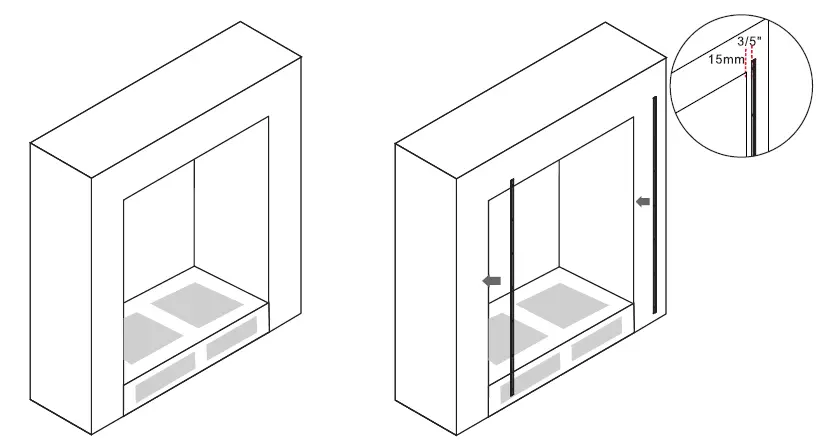

2. Install the fixed plate of external frame
3. Fix the left outer frame bracket and the right outer frame bracket

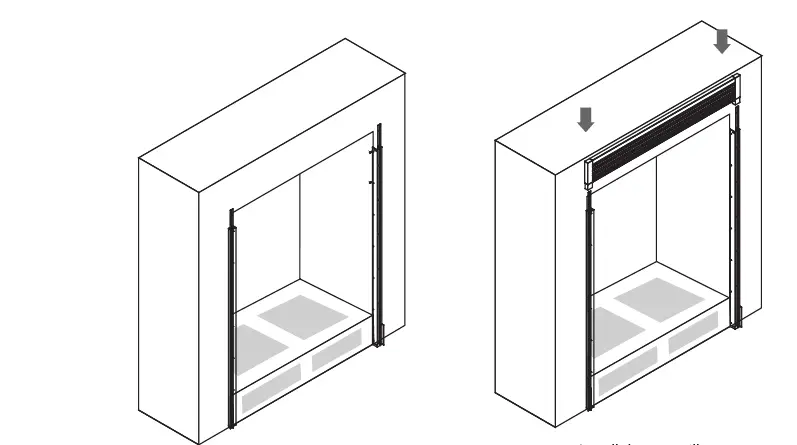

4. Install the top grill
5. Fix the top grill

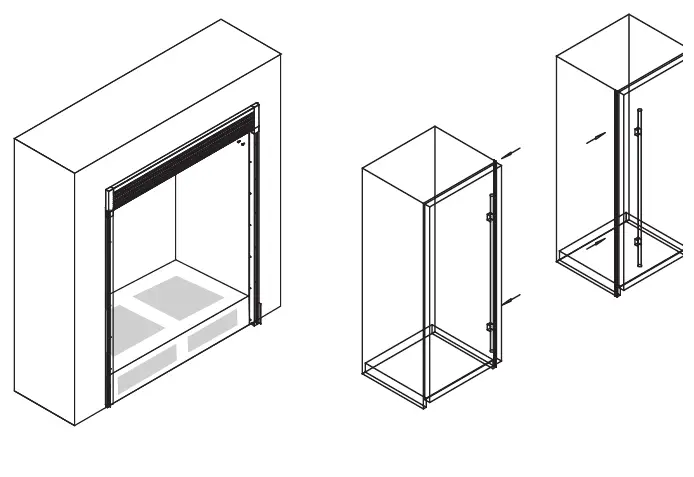

6. Install the adhesive fixed bar
7. Put in the fridge
8. Fix the decorative partition

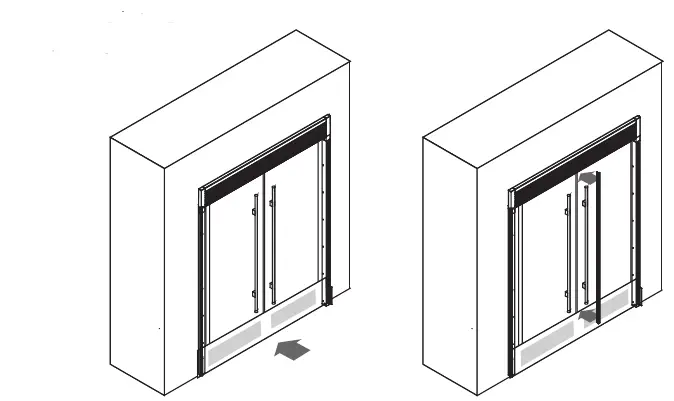

9. Install the bottom grill
10.  Fix the bottom grill

Customer service: 1 (866) 231-8893
