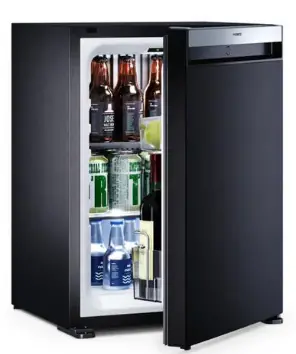

DOMETIC A30S HiPro Alpha 30-l-Class Absorption Minibar

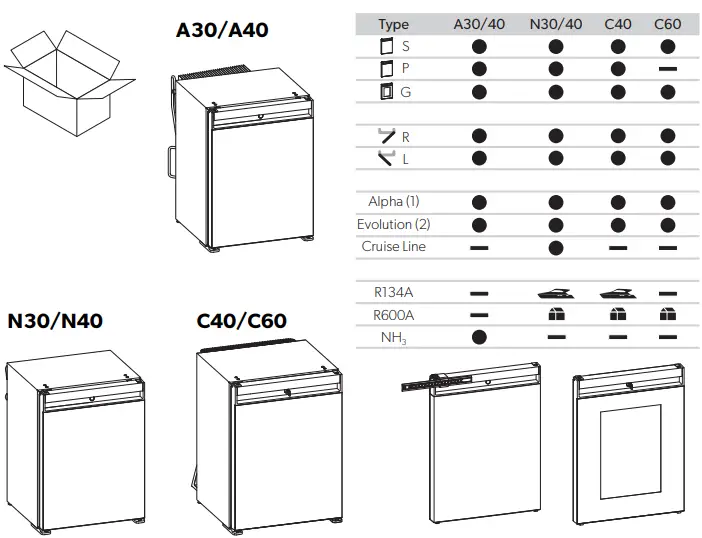

MODELS

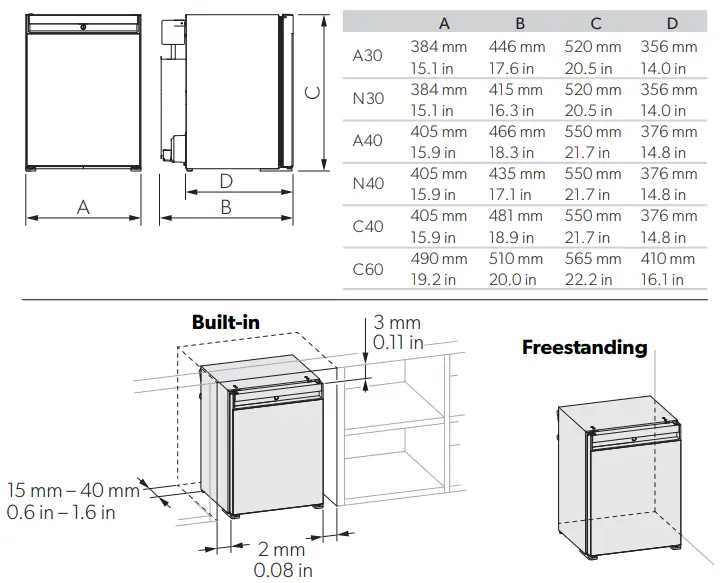

DIMENSIONS

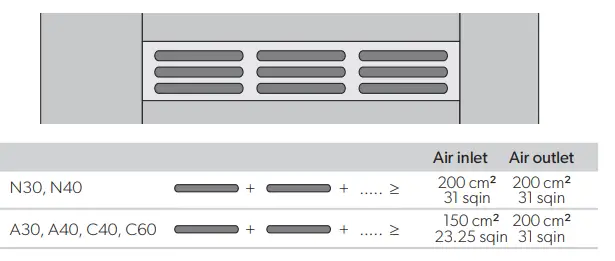

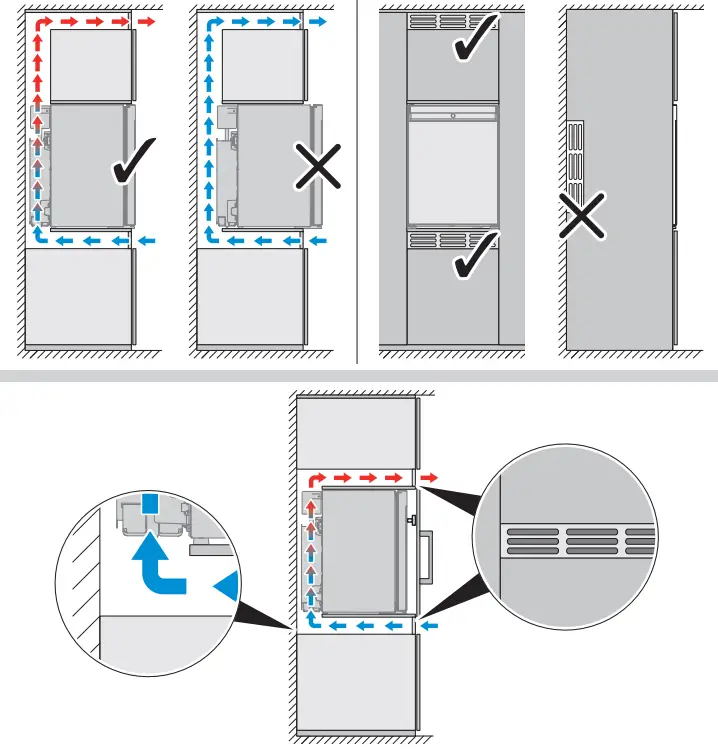

AIR FLOW
Scan this QR code to watch a video about the impact of air flow. https://dreambroker.com/channel/zrzpj1zj/w4v0sxl0
Insufficient air flow results in a shortened lifespan and a reduced cooling performance. Observe the minimum spacings when installing the minibar to furniture.

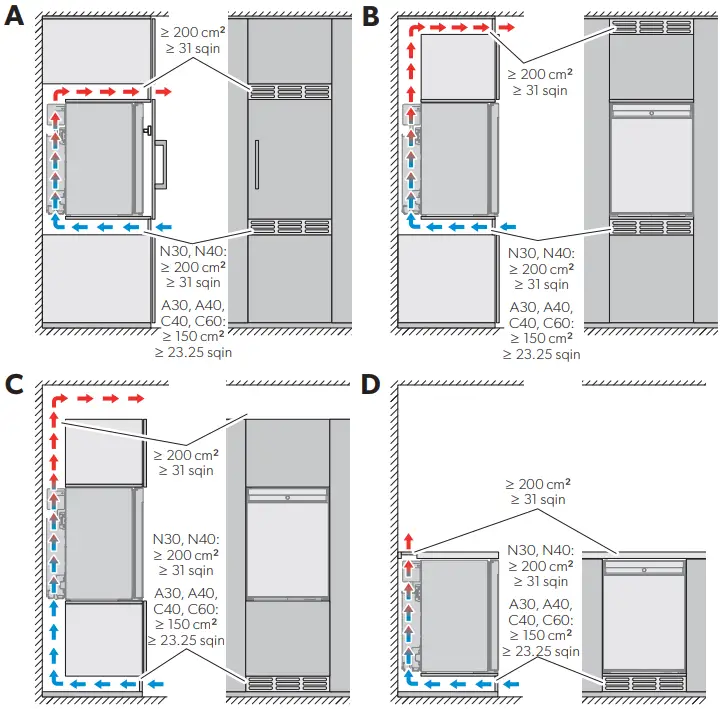

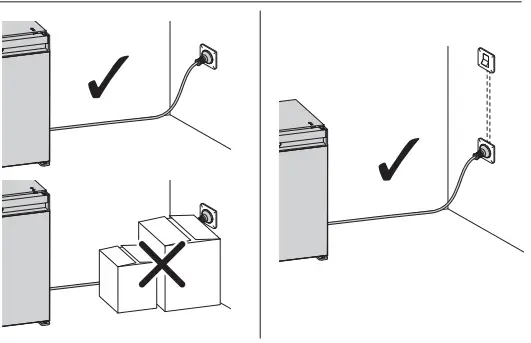

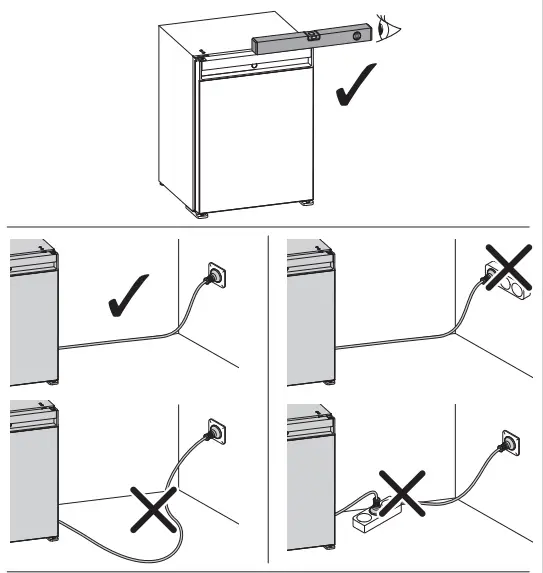

INSTALLATION NOTES

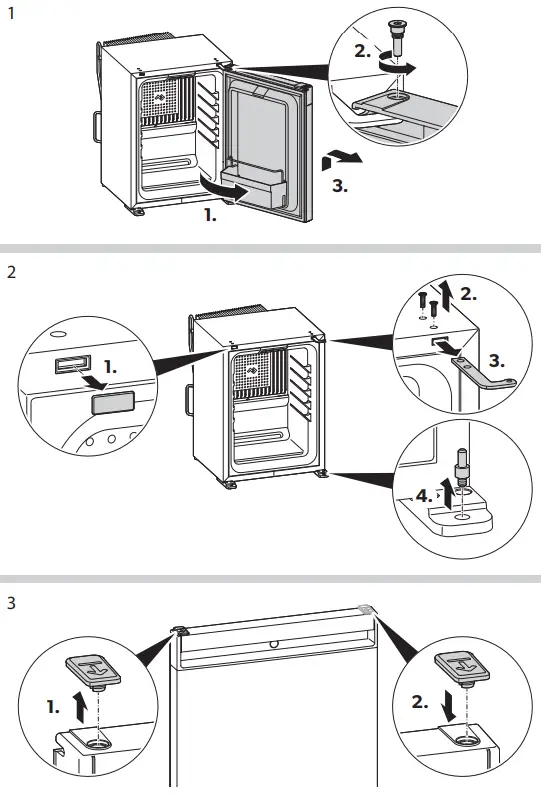

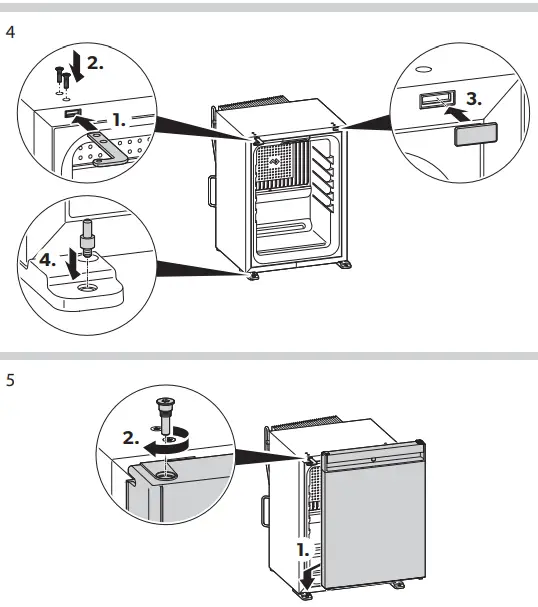

REVERSING DOOR

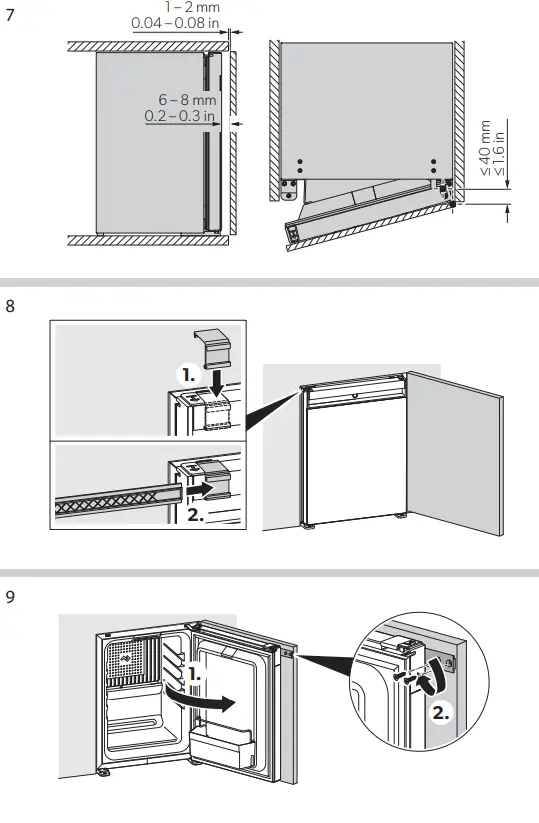

FIXING
SLIDING HINGE

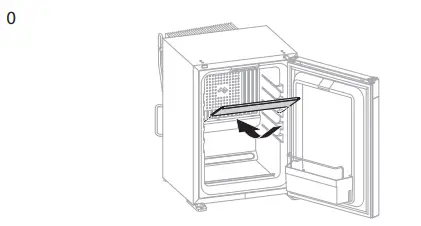

SHELVES
DOOR LOCK
YOUR LOCAL DEALER
dometic.com/dealer
YOUR LOCAL SUPPORT
dometic.com/contact
YOUR LOCAL SALES OFFICE
dometic.com/sales-offices
A complete list of Dometic companies, which comprise the Dometic Group, can be found in the public filings of:
DOMETIC GROUP AB Hemvärnsgatan 15 SE-17154 Solna Sweden
