ILINC65WWHTAM InstantCharger 65W 2 USB Powerful USB-C and USB-A GaN PD Charger
User Guide

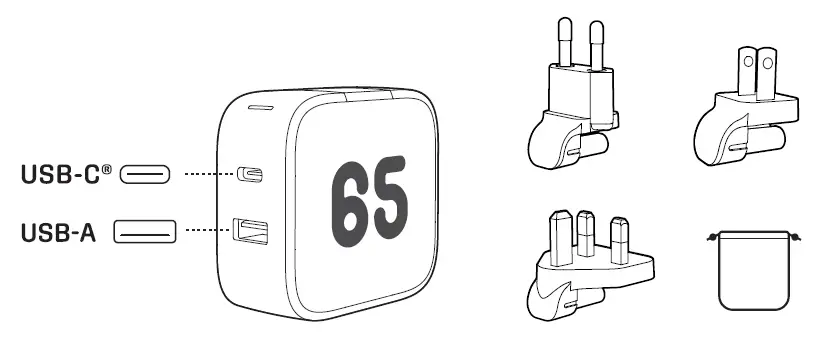

WHAT’S IN THE BOX

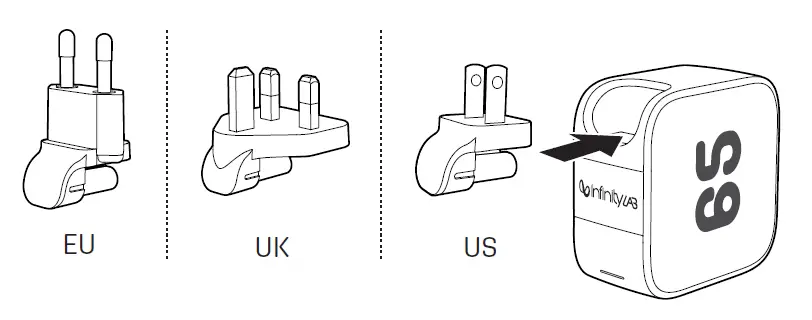

CHANGE PLUG

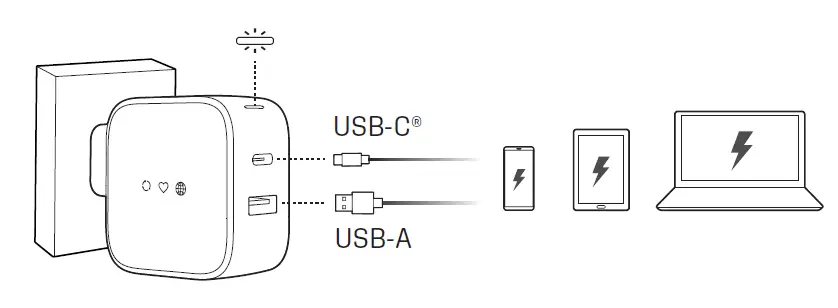

CHARGE YOUR DEVICES
- Model : ILINC65W
- Output power : 65 W Max.
- Operating temperature: 0~45 °C
- Average active efficiency: Min. 82.18%
- Efficiency at low load (10%): Min. 75.18%
- No-load power consumption: Max. 0.160 W
- Input: 100-240 V~, 50-60 Hz, 1.5 A
- Max. Output: USB-A: 5.0 V 3.0 A 15.0 W
USB-C: 5.0 V 3.0 A 15.0 W, 9.0 V 3.0 A 27.0 W,
12.0 V 3.0 A 36.0 W, 15.0 V 3.0 A 45.0 W, 20.0 V 3.25 A 65.0 W
USB-A+USB-C: 65.0 W - Dimensions (plug excluded): 56 mm x 56 mm x 28 mm
- Weight (plug excluded): 107 g
For indoor use only.
This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.
WARNING:
RISK OF FIRE or ELECTRIC SHOCK
when using a mains plug adaptor that is not specified.
Do not use a mains plug adaptor other than that which is specified.
When using the power adapter in high temperature environment, it will enter protection mode by limiting the output power to protect the devices.
USB-C
USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum.
