LZHZXY 460E3 Electric Paper Creasing Machine
User Manual

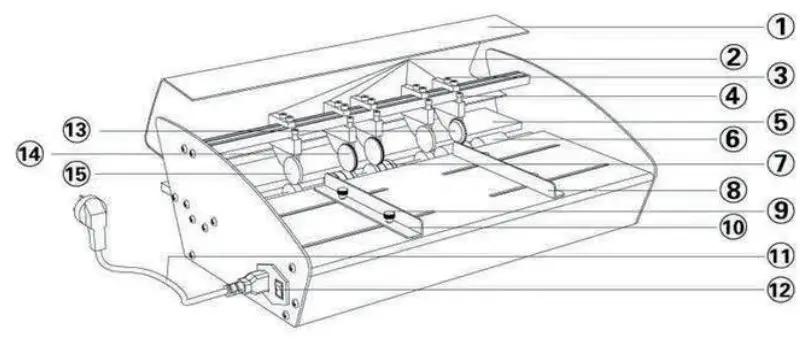

| 1. cover | 9. adjusting screw |
| 2. tool rest | 10. left paper positioning |
| 3. Head screw | 11. power line |
| 4. Pressure adjusting screw | 12. power switch |
| 5. paper platform | 13. perforate wheel |
| 6. bottom wheel | 14. creasing wheel |
| 7. rolling groove wheel | 15. paper press wheel |
| 8. Right paper positioning |
Operation instruction
- takes out the machine and put it on the flat table.

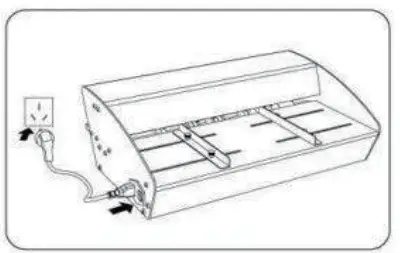

- plug in, turn on the power switch, and check the machine if it can run at a constant speed.

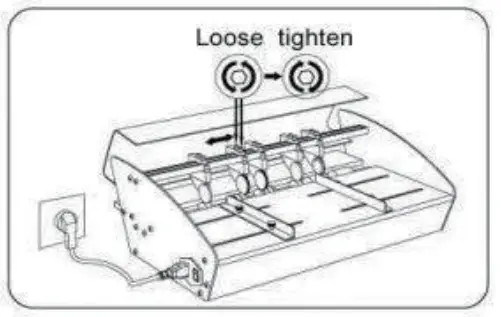

- adjusting the creasing position and indentation number according to your needs, the upper indent should align to the suitable groove center.

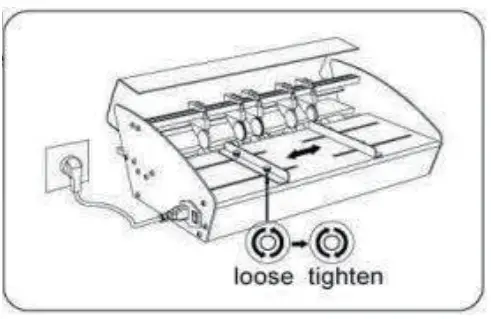

- adjust the right and left positioning according to the paper size, the scale is only for reference, you can fine-adjust the specific direction.

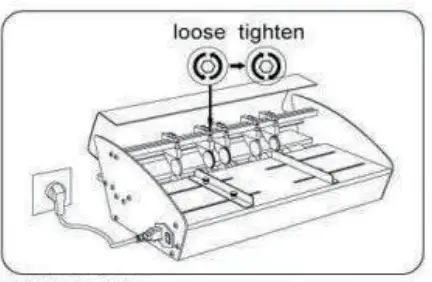

- put in the suitable paper, adjust the creasing pressure and feeding pressure. Different paper with different creasing pressure.
You can adjust the right and left press wheels, usually the left pressure wheel with a little bigger pressure.
- continue feeding paper manually, the creasing operation is finished.
- if you want to do perforating, adjust the perforating blade and shim to the suitable position, and adjust the pressure to do perforating.
Parameter
| creasing wheel | 2 |
| paper pressing wheel | 2 |
| perforating wheel | 1 |
| dimension | 510x325x172mm |
| NG | 9.9ka |
| POWER | 220V-240V 50HZ-60HZ |
