DRUM
Instruction Manual
5200134 DRUM LED Outdoor Ceiling Light
The installation may only be carried out by a technician

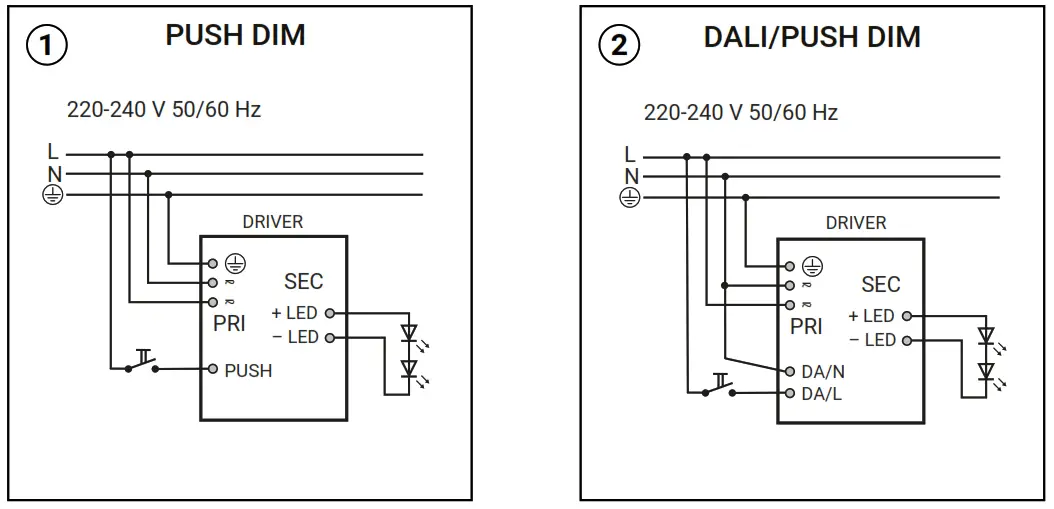

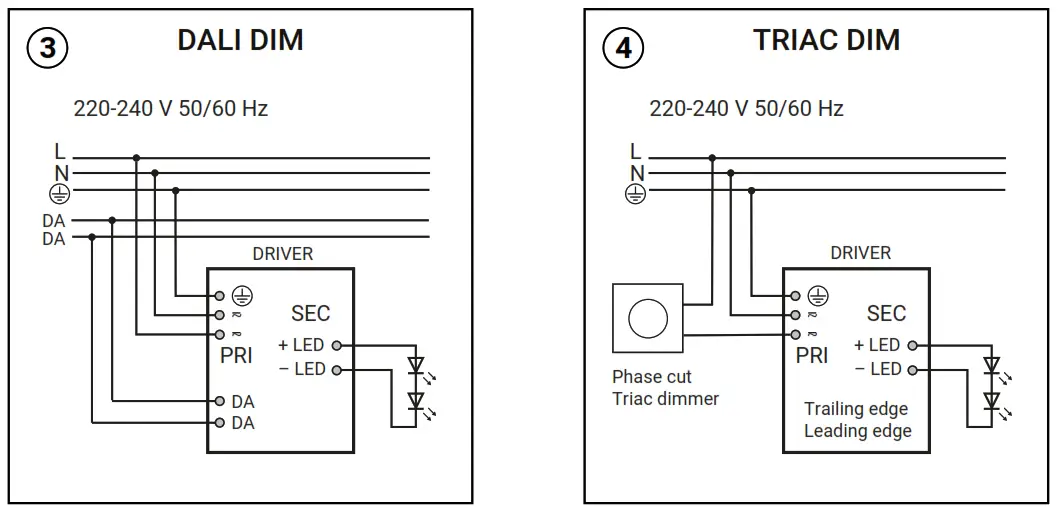

CONNECTION – DIMMABLE VERSION – OPTIONAL


CAUTION!
Turn off the main power before proceeding with the installation in order to prevent possible shock. The installation may only be carried out by a technician or a qualified person. If the lamp has a lampshade/diffuser, handle it carefully as it is fragile. With an integrated LED light source, only a technician or a qualified person can make the replacement. The manufacturer is not responsible for the incorrect use and assembly of its products.![]()
