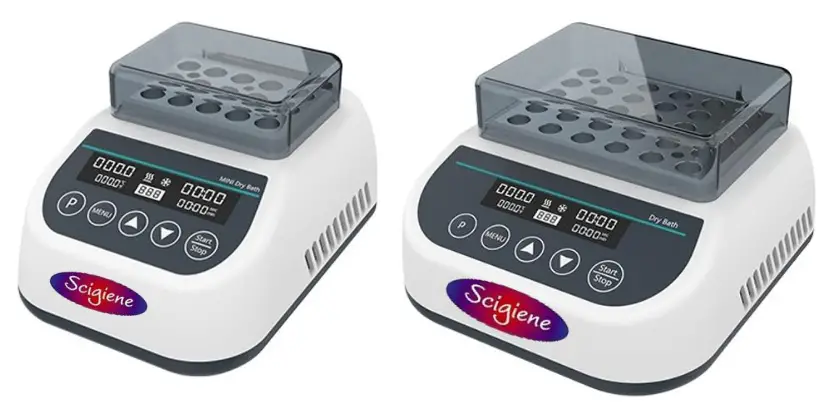

Dry Bath Incubator
User Guide
(Part #: DB100, DB100-C, MDB100, MDB100-C)
Brief Introduction
Science dry bath adopts international advanced design concepts and manufacturing technology with a sturdy structure and easy operation. Microcomputer control and semiconductor heating/cooling can be widely used in sample preservation and reaction, DNA amplification and electrophoresis of pre-denaturation, serum coagulation, etc.
Features:
- Instant temperature display, both heating and cooling
- Multiple programs running – 9 programs can be set
- Temperature deviation Calibration function
- Built-in safety device for over-temperature
- Intelligent algorithm
- Automated recovery of a power cut
- Multiple modules options
- LED display
- Failure Detection and Buzzing alarm

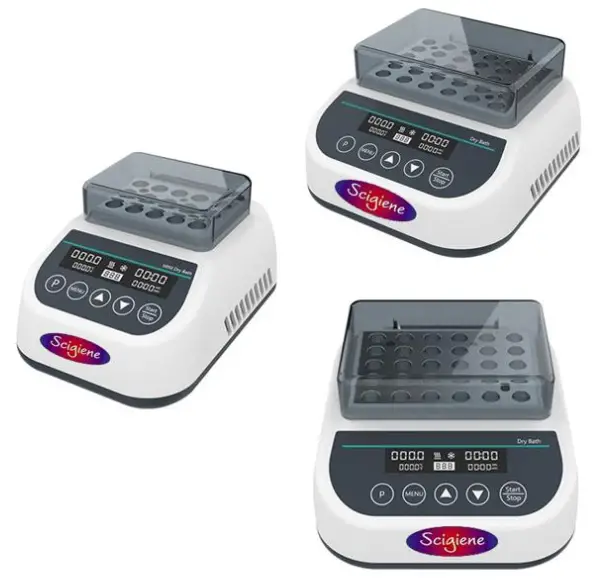

Product Overview

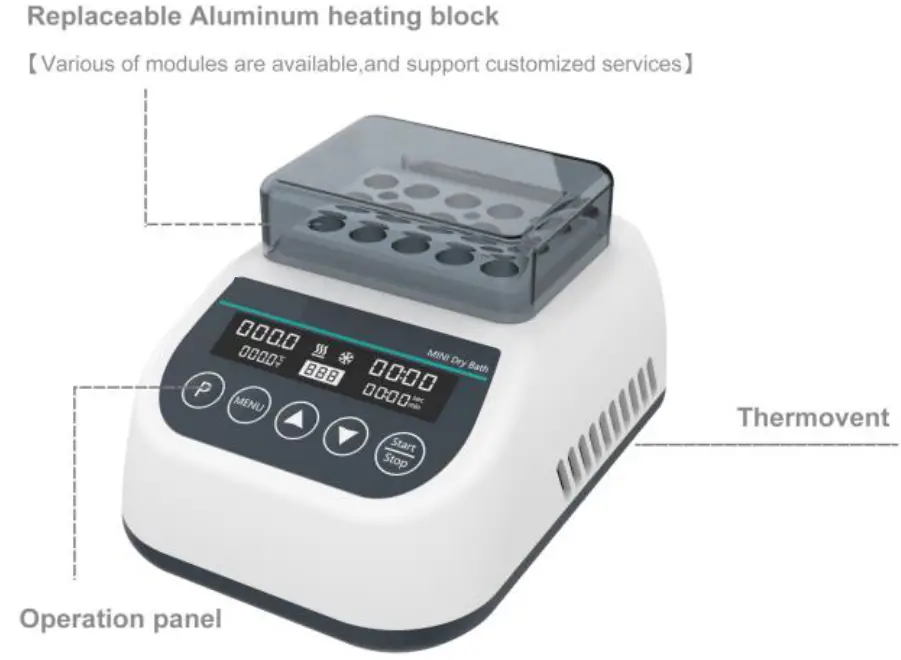

Product Details
Technical Data
| Model # | MDB100-C | MDB100 | DB100-C | DB100 |
| Picture |  |  | ||
| Temperature Range | Room temp -15°C – 100 °C | Room temp +5°C – 100°C | Room temp -15°C – 100°C | Room temp +5°C – 100°C |
| Temperature Stability | ±0.5°C | |||
| Display Accuracy | 0.1°C | |||
| Heating up time | <12min (25-100°C) | |||
| Cooling time | 20-25min (15-0°C) | / | 20-25min (15-0°C) | / |
| Multi program running | Yes (1-9) | NO | Yes (1-9) | NO |
| Timing range | 1s – 23h59min | |||
| Power | 60W | 48W | 96W | |
| Power Supply | AC100-240V/ 1.5A turn to DC24V/4A | AC100-240V/ 1.5A turn to DC24V/4A | ||
| Heating Block Dimension | 71 x 47 x 32 mm | 110 x 75 x 32 mm | ||
| Product Dimension | 160 x115 x 96 mm | 170 x 160 x 102 mm | ||
Optional Modules:
| Model Number | Adapter Module | Capacity |
 | MDB100-1 | Centrifuge tube: 0.2m1 x 40 |
| MDB100-2 | Centrifuge tube: O.Sml x 24 | |
| MDB100-3 | Centrifuge tube: 1.5ml x 15 | |
| MDB100-4 | Centrifuge tube: 2.0m1 x 15 | |
 | DB1 | Centrifuge tube: 0.2m1 x 96 |
| DB2 | Centrifuge tube: 0.5ml x 48 | |
| DB3 | Centrifuge tube: 1.5ml x 35 | |
| DB4 | Centrifuge tube: 2.0m1 x 35 | |
| DBS | Vacuum blood tube: 5mI x 24 | |
| DB6 | Centrifuge tube: 5/15m1x 12 | |
| DB7 | Centrifuge tube: 50m1 x 6 | |
| DB8 | Flat bottom plate (ELISA plate/culture plate, etc.) | |
| DB9 | Cuvettes dedicated module |
Operation Guide
Application
Mainly used in sample preservation and reaction, DNA amplification and electrophoresis of predenaturation, serum coagulation, etc.
Usage
Widely used in medicine, the chemical industry, food safety, quality inspection, the environment, and so on.
Steps of Usage
- Press the MENU key to set the required temperature and time
- If you need to memorize the program: Short press the P key to enter program settings, then press MENU to select the program number and set the temperature and time in turn, the device will automatic memory the program after completion. 9 programs of data could be saved.
- Long press the P key to enter gradient operation mode, and press MENU to select the required program number. The program runs sequentially from low to high without skipping the program.
Safety Precautions
- Do not unplug and plug the power connector or toggle the power button when your hands are wet with liquid
- Do not unplug the power plug when the instrument is powered on
- Do not clean the instrument when it is powered on
- Do not install the instrument on an uneven, swaying, and vibrating work surface

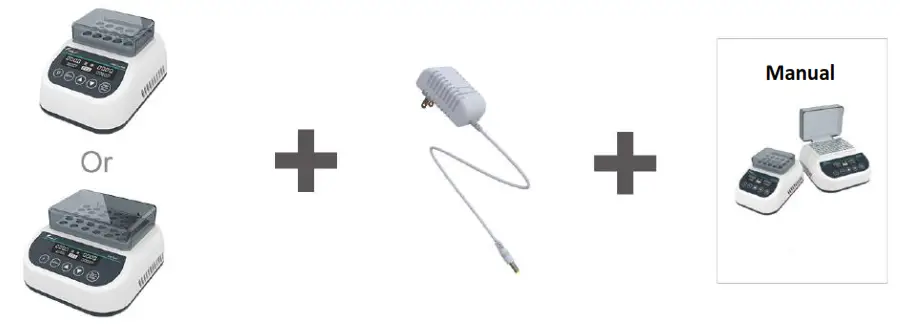

Package List
