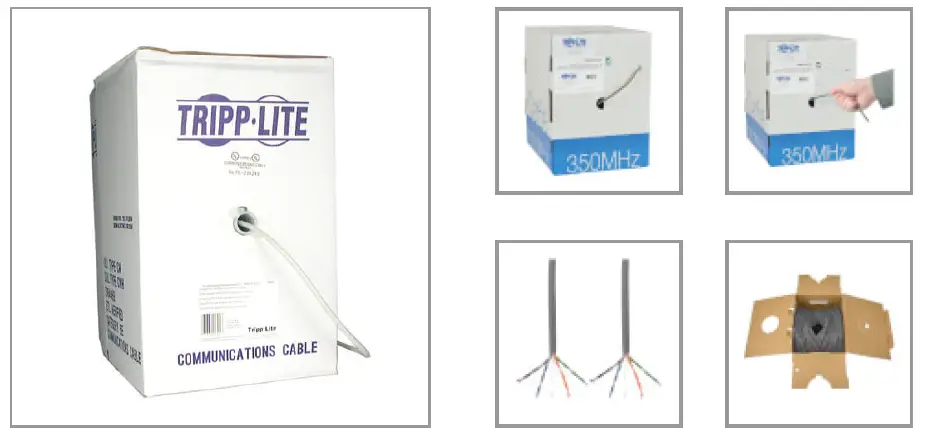

TRIPP-LITE N020-01K-GY Cat5e 350 MHz Stranded-Core UTP PVC Bulk Ethernet Cable
Cat5e 350 MHz Stranded-Core (UTP) PVC Bulk Ethernet Cable – Gray, 1000 ft. (304.8 m), TAA
MODEL NUMBER: N020-01K-GY
Highlights
- Premium cabling for Category 5 and 5e applications — rated for 350 MHz/1Gbps communications
- 4pr Stranded PVC CMR Jacket
System Requirements
- For making patch cables for Network Installations 1000 Base-T (1Gbps Ethernet), 10/100 Base-T (Ethernet), 100Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring Type 3 applications.
Package Includes
- 1000-ft. Cat5e Gray Bulk Patch Cable Stranded PVC 24AWG 350MHz
Features
- Designed for patch (outside wall) cabling applications
- Cabling for category 5 (Cat5) and 5e (Cat5e) applications
- Length: 1,000 ft. Color: gray
- 24 AWG 4-pair stranded UTP cable with PVC CMR jacket
- Rated for 350MHz/ 1Gbps communication
- Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 5e draft 11)
- Available in other lengths
- Available in solid copper cable (N022-01K-GY) and in Cat6 (N222-01K and N224-01K)
Specifications
| OVERVIEW | |
| UPC Code | 037332013057 |
| Technology | Cat5/5e |
| PHYSICAL | |
| Cable Jacket Color | Gray |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CMR |
| Cable Shielding | UTP |
| Cable Outer Diameter (OD) | 5.4 mm |
| Number of Conductors | 4 Pair |
| Conductor Material | Stranded Copper |
| Conductor Gauge | 24 AWG |
| Cable Length (ft.) | 1000 |
| Cable Length (m) | 304.88 |
| Cable Length (in.) | 12000 |
| Cable Length (cm) | 30480 |
| Shipping Dimensions (hwd / in.) | 12.99 x 0.50 x 9.45 |
| Shipping Dimensions (hwd / cm) | 32.99 x 1.27 x 24.00 |
| Shipping Weight (lbs.) | 23.00 |
| Shipping Weight (kg) | 10.43 |
| ENVIRONMENTAL | |
| Operating Temperature Range | -4 to 167 °F (-20 to 75 °C) |
| Storage Temperature Range | 32 to 140 F (0 to 60 C) |
| COMMUNICATIONS | |
| Bandwidth per TIA Standard | 100 MHz |
| Maximum Bandwidth as Tested | 350 MHz |
| Network Compatibility | 1 Gbps (Gigabit) |
| IEEE Standards Supported | 802.3ab |
| CONNECTIONS | |
| Side A – Connector 1 | BARE WIRE |
| Side B – Connector 1 | BARE WIRE |
| Crossover Wiring | No |
| Connector Type | Bare Wire |
| Angled Connector | No |
| FEATURES & SPECIFICATIONS | |
| IP68 Rated | No |
| Snagless Connector | No |
| Antibacterial | No |
| STANDARDS & COMPLIANCE | |
| Product Compliance | RoHS; IEEE 802.3ab 1000Base-T; REACH; Trade Agreements Act (TAA) |
| WARRANTY & SUPPORT | |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
