IKEA TIDIG Ceiling Spotlight with 5 Spots

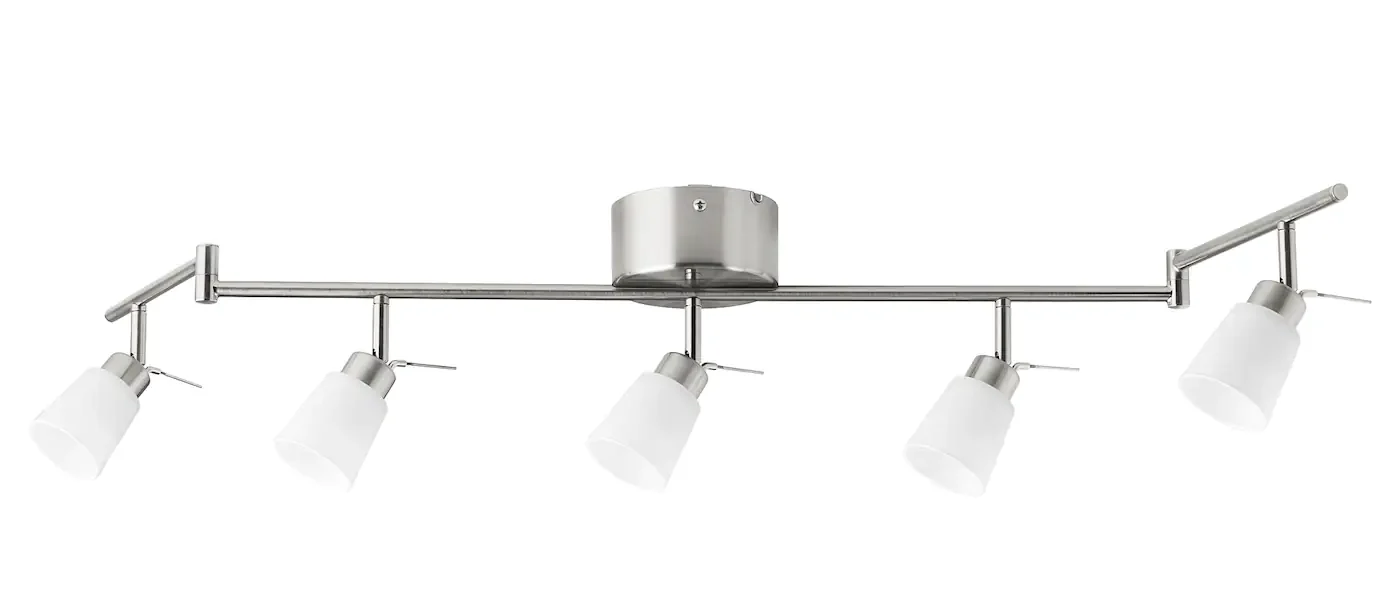

IKEA TIDIG Ceiling Spotlight with 5 Spots featured

IMPORTANT!

Always shut off power to the circuit before starting installation work. In some countries, electrical installation work may only be carried out by a authorised electrical contractor. Contact your local electricity authority for advice.
Different materials require different types of fittings. Always choose screws and plugs that are especially suited to the material.

IKEA TIDIG Ceiling Spotlight with 5 Spots fig1

Minimum safe distance to illuminated object: 0.5 metres. The lamp can cause a fire if the minimum distance is not kept.

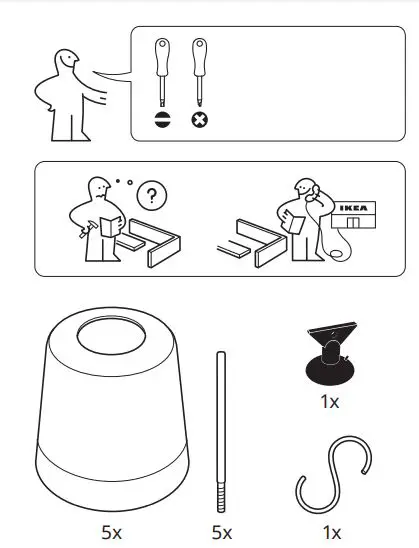

IKEA TIDIG Ceiling Spotlight with 5 Spots fig2

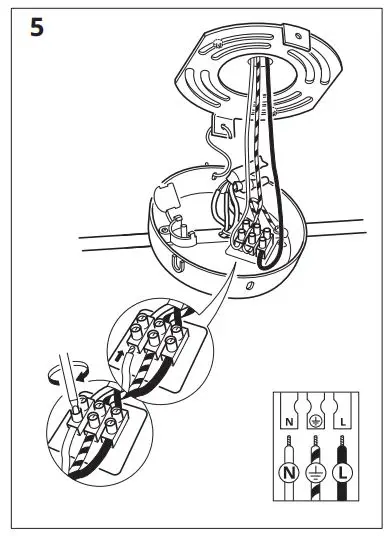

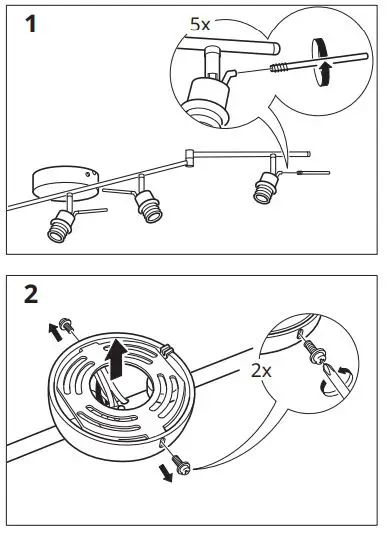

IKEA TIDIG Ceiling Spotlight with 5 Spots fig3IKEA TIDIG Ceiling Spotlight with 5 Spots fig4IKEA TIDIG Ceiling Spotlight with 5 Spots fig5

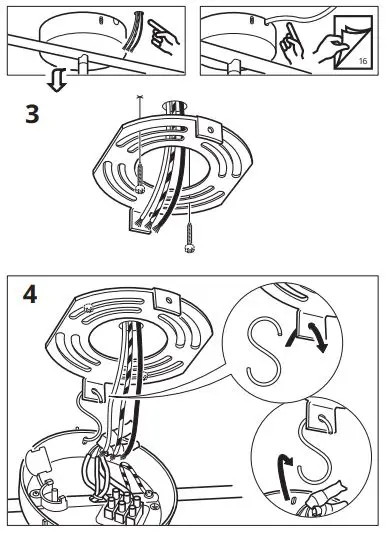

The hook is used to hang the lamp on during installation.

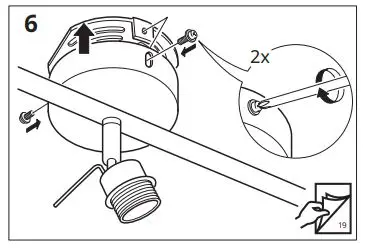

IKEA TIDIG Ceiling Spotlight with 5 Spots fig6

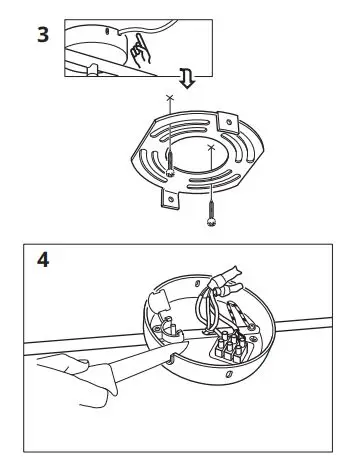

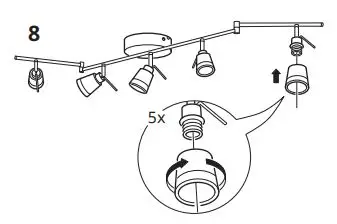

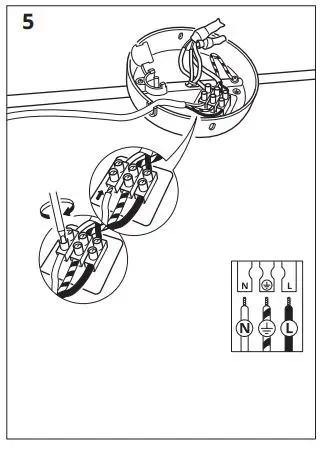

How To Install?

IKEA TIDIG Ceiling Spotlight with 5 Spots fig7IKEA TIDIG Ceiling Spotlight with 5 Spots fig8IKEA TIDIG Ceiling Spotlight with 5 Spots fig9IKEA TIDIG Ceiling Spotlight with 5 Spots fig10

CAUTION

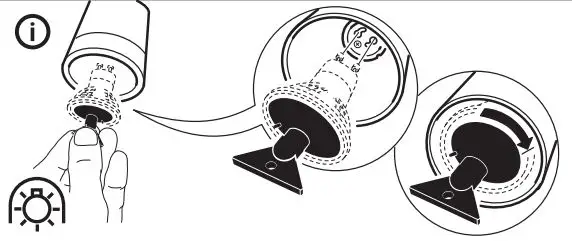

IKEA TIDIG Ceiling Spotlight with 5 Spots fig11

WHEN CHANGING BULBS – Make sure the new lamp is marked with the symbol above. Bulbs get very hot. Allow the lamp to cool before changing bulbs.



Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
