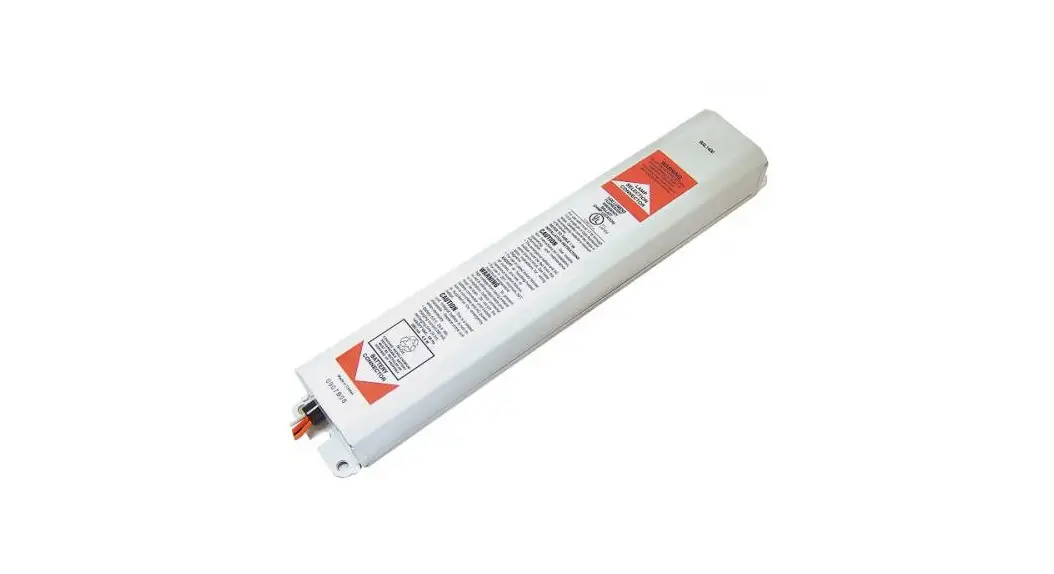

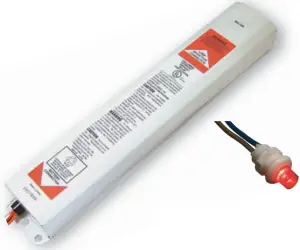

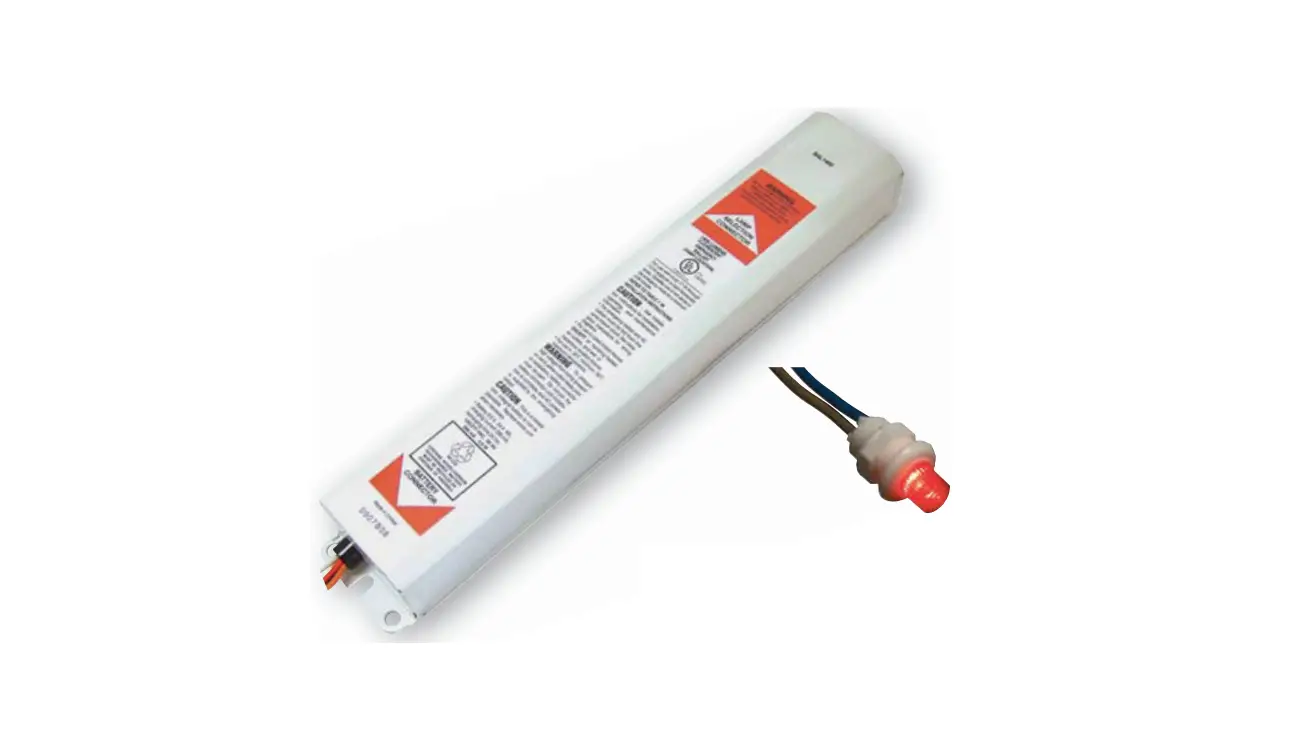

TCP Fluorescent Emergency Ballast 1400 Lumens User Guide

Illumination

• Works with or without an AC ballast to convert new or existing fluorescent fixtures into unobtrusive emergency lighting.
• Operates one or two lamps in the emergency mode for a minimum of 90 minutes.
• Provides a maximum initial lumen output of 1400 lumens.

Electrical

• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 6V long life, maintenance-free, rechargeable sealed NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to fluorescent lamp(s) for minimum 90-minute emergency illumination.
• Full automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
• Time delay enhancement to overcome end-of-life circuit problems.

Mounting

• Suitable for installation inside, on top, or in remote* of the fixture.
• Can be used in both switched and unswitched fixtures.
• UL Listed for factory or field installation.

Housing

• Durable painted steel construction in white finish.
• Compact design fits most fluorescent fixtures.

Options

• CEC Certified to CEC under Title 20 regulations.

Warranty/Listing

• Five year warranty against defects in material and workmanship (lamps excluded).
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State codes.
• UL Listed for damp locations (0ºC –50ºC).
• Suitable for use in sealed and gasketed fixtures.

Lamp Compatibility

• Compatible with most one-, two-, three-, and four-lamp electronic standard and dimming AC ballasts.
• Operates one or two T5, T5HO, T8, T12, T8HO, T12HO, Circular T5/T9, U-bend T8/T12, 4-Pin CFL and long CFL lamps in emergency mode. Refer to the chart below for a list of compatible lamps.

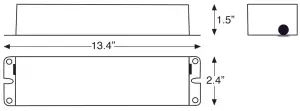

Dimensions

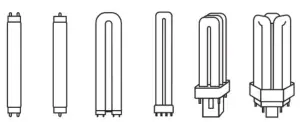

Lamp Compatibility Chart

*When battery packs are remote mounted, the remote distance cannot exceed 1/2 the distance from ballast to lamp specified by the A.C. ballast manufacturer. The maximum allowable remote mounting distance is 50 feet.

NOTE: In 2-lamp operation, lumens are equally split between the two lamps.

NOTE: Refer to the spec sheet for complete chart.
