Anslut 017392 Electric Fireplace Instruction Manual

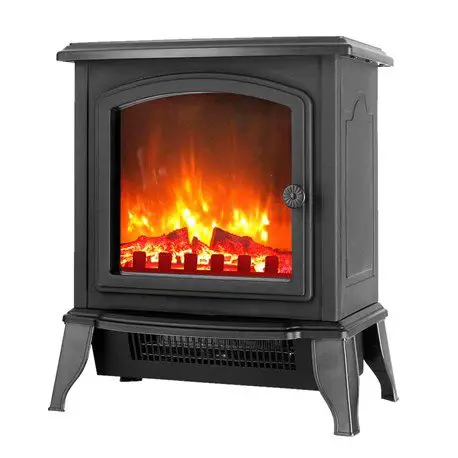

Ansult 017392 Electric Fireplace

SAFETY INSTRUCTIONS

• Keep children less than 3 years old under supervision when they are near the product. The product can be switched on/ off by children from 3 to 8 years old only if it is mounted in the correct position to use, and if they are supervised or receive instructions concerning the safe use of the product and understand the risks involved. Do not allow children from 3 to 8 years old to connect, use, clean or maintain the product.
• Do not use the product outdoors.
• Never cover the product and do not block the ventilation openings on the product – risk of overheating and fire hazard.
• Do not place the product closer than one meter to furniture, curtains or other flammable materials.
• Switch off the product immediately and pull out the plug if the product is not working properly.
• Pull out the plug if the product is not going to be used for some time.
• Do not run the power cord in front of the product.
• Do not route the power cord under carpets etc. Place the power cord so that there is no risk of treading on it, or tripping over it.
• Do not use the product on a fitted carpet, or equivalent.
• The plug must be plugged into a correctly installed and earthed powerpoint.
• Check that the mains voltage corresponds to the rated voltage on the type plate.
• Do not place the product directly below a power outlet.
• Do not use the product near a bath, shower, or swimming pool.
• This product can be used by children from 8 years and upwards and by persons with physical, sensorial or mental disabilities, or persons who lack experience or knowledge if they are supervised or receive instructions concerning the safe use of the product and understand the risks involved. Keep children under supervision to make sure they do not play with the product. Do not allow children to clean or maintain the product without su perv1s1on.
• To avoid the risk of the overheating protection being accidentally reset the product must not be supplied with power via a cable with an external switch, such as a timer, or be connected to a circuit that is regularly switched on and off centrally.
• Do not attempt to dismantle or repair the product. Repairs should be carried out by qualified personnel or an authorized service center. A damaged cord or plug must be replaced by an authorized service center or qualified person to ensure safe use.

WARNING!

• Do not use the product unsupervised in small rooms where there are persons who cannot leave the room without assistance.
•  Do not cover the product, this can result in overheating.
•  Some parts of the product get very hot – the risk of burn injuries. Keep the product under careful supervision when it is used by, or near children or persons with functional disorders.

TECHNICAL DATA

• Rated voltage                230 V ~ 50 Hz
• Output                            400W
• Protection rating             IP20
• Temperature interval        15-35°
• Size                                165 x 320 x 165 mm
• Weight                          1.1 kg

DESCRIPTION

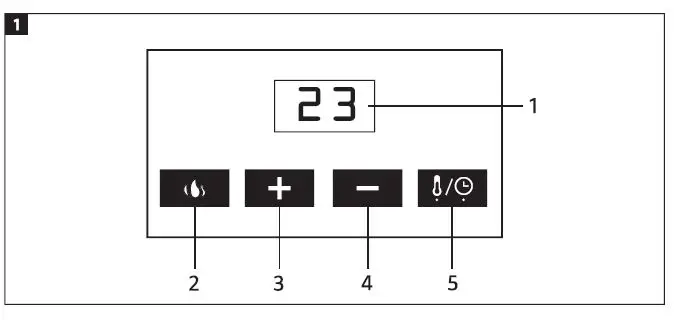

CONTROL PANEL

•  Set temperature
• Button for flame effect on/off
•  Button to increase temperature/run time
• Button to reduce temperature/run time tfo Button to set temperature/run time

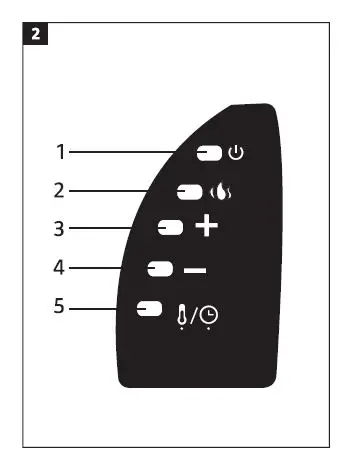

REMOTE CONTROL

• Button on/off (standby mode)
•  Button for flame effect on/off
•  Button to increase temperature/run time
•  Button to reduce temperature/run time to Button to set temperature/run time


USE

The product can be operated with the control panel or with the supplied remote control.

1.  Place the product on a level, stable, dry, and heat resistant surface with free space above and out of the reach of children and pets.
2. Plug the plug into an easily accessible and correctly installed PowerPoint.
3.  Set the power switch on the back of the product to the ON position. The display first shows a numerical value for temperature and then OFF (for off mode). The fan also starts and runs for about 10 to 20 seconds. The product then goes into standby mode.
4. To activate the heating mode, press the button (3) on the remote control or one of the buttons on the product. The display shows the last temperature setting.
5. Press the button (2) to activate the flame effect. Switch off by pressing the button again.
6.  Press the button (5) to change the temperature setting. The numerical value on the display flashes.
7.  Set the required temperature (15 to 35°C) with the+ and – buttons. The numerical value on the display stops flashing when the set temperature is reached. When the product is switched on, heating mode switches off automatically when the setpoint temperature is reached and starts again when the temperature drops.
8.  Switch off the product by putting the power switch in the OFF position. The product can be put in standby mode with the button (1) on the remote control. It takes about 15 seconds before the fan stops after pressing the button. To start the product again, press the button on the remote control or one of the buttons on the product. The display shows the last temperature setting and the heating mode is activated.
9.  Pull out the plug after use.

SETTING THE TIMER

The run time can be set from 1 to 8 hours. The product switches off automatically after the set time.

•  Start the product.
•  Press the button twice (5) twice. OH (for o hours) flashes on the display. Set the required run time with the buttons+ (3) and- (4).
•  The required temperature can be set when the set run time is no longer shown on the display. The display then switches between showing the set run time and the set temperature.
• The heating mode is deactivated automatically when the set run time has passed and the product goes into standby mode.

OVERHEATING PROTECTION
The product has overheating protection, which switches off the product if it overheats.

NOTE: The plug must be unplugged for at least 10 minutes before the product is restarted.

MAINTENANCE

NOTE: Switch off the product, pull out the plug, and allow it to cool before cleaning.

• Wipe the product with a damp cloth.
• Do not use petrol, detergent or solvent.
• Store the product in a dry, clean place and protected from dust when not in use.
