ULINE H-5333 Automatic Paper Crumpler Floor Standing Installation Guide

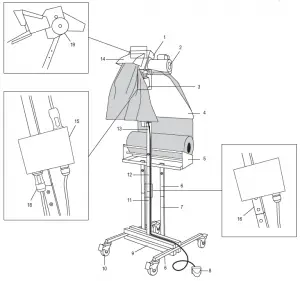

CRUMPLER – FLOOR STANDING

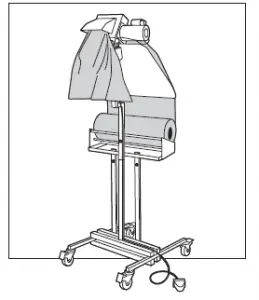

CRUMPLER – FLOOR STANDING
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Paper Machine Head | 1 | H-5336 | PM HEAD |
| 2 | Motor | 1 | H-5357 | MOTOR |
| 3 | Power Box | 1 | ———- | ———- |
| 4 | Paper Ramp | 1 | H-5336RAMP | LPH15 |
| 5 | Paper Cradle | 1 | ———- | ———- |
| 6 | Solid Stabilizer Insert | 2 | ———- | ———- |
| 7 | Tubular Stabilizer Bar | 2 | ———- | ———- |
| 8 | Foot Pedal | 1 | H-5356 | LPE-09 |
| 9 | Floor Base | 1 | H-5333-BASE | FLOOR BASE |
| 10 | Caster | 4 | H-5354 | CASTER |
| 11 | Tubular Center Bar | 1 | ———- | ———- |
| 12 | Solid Center Insert | 1 | ———- | ———- |
| 13 | Machine Body | 1 | ———- | ———- |
| 14 | Exit Shoot | 1 | ———- | ———- |
| 15 | Motor Connector | 1 | ———- | ———- |
| 16 | Top Mast | 4 | ———- | ———- |
| 17 | Teeth | 1 | H-5359 | LPH14 |
| 18 | Foot Pedal Connector | 2 | ———- | ———- |
| 19 | Threading Disk | 1 | ———- | ———- |
| Replacement Hardware Pack (Not Shown) Bolts, Nuts, Washers, Set Screw, Spacer | 6 | H-5355 | FLOOR-HARDWARE | |
| Top Plate (Not Shown) | 9 | H-5333-PLATE | LPH13 | |
| Bottom Drive Shaft for Paper Crumpler (Not Shown) | 6 | H-5353 | LPH04 ASSY | |
| Top Drive Shaft for Paper Crumpler (Not Shown) | 2 | H-5360 | LPH03 ASSY |
