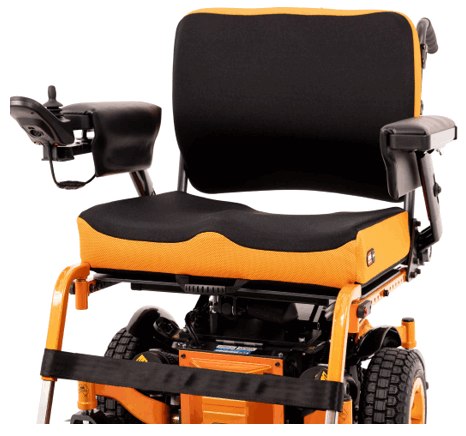

XLella Bariatric Seating
XLELLA
SCRIPTING AND ORDERING GUIDE
XLella Bariatric Seating

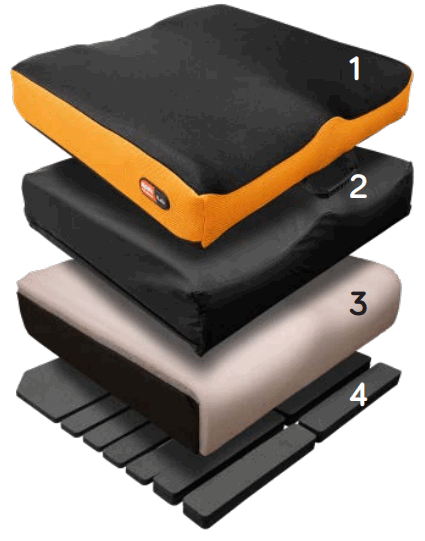

PACKAGE INCLUDES:
- Outer Cover
- Incontinence Cover
- Cushion Foam Unit
- Positioning Pad Kit (SpexClassic Cushions only)
SELECT XLELLA CUSHION STYLE

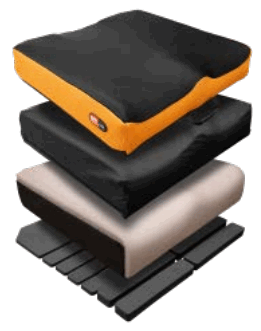

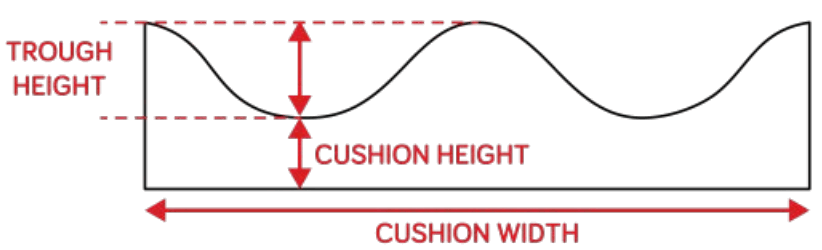

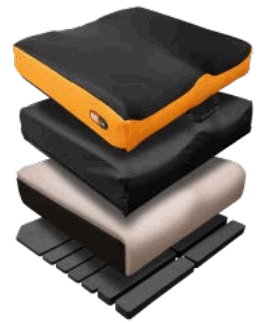

| Vigour Standard Contour | Spex Classic Standard Contour | Spex Classic High Contour |
 |  |  |
| 1103-WWDD-0SC | 1105-WWDD-0SC | 1105-WWDD-0HC |

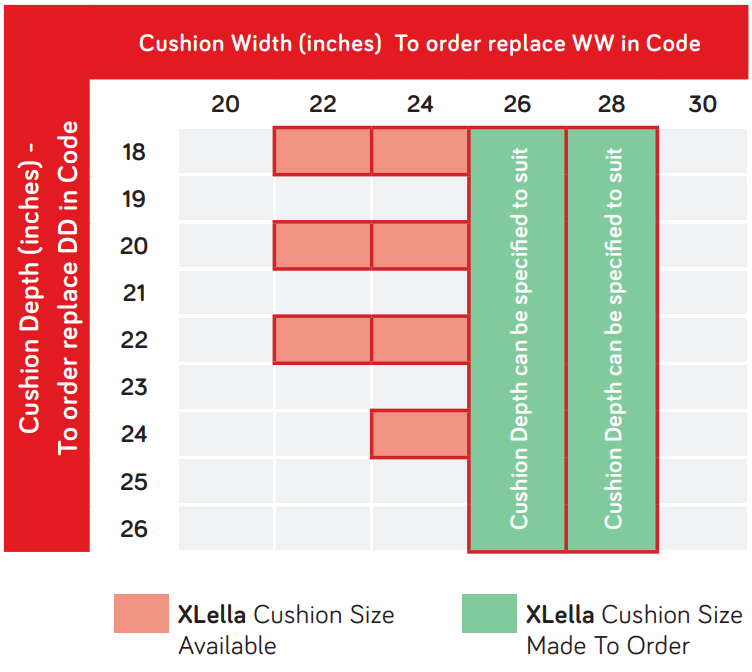

SELECT SIZING

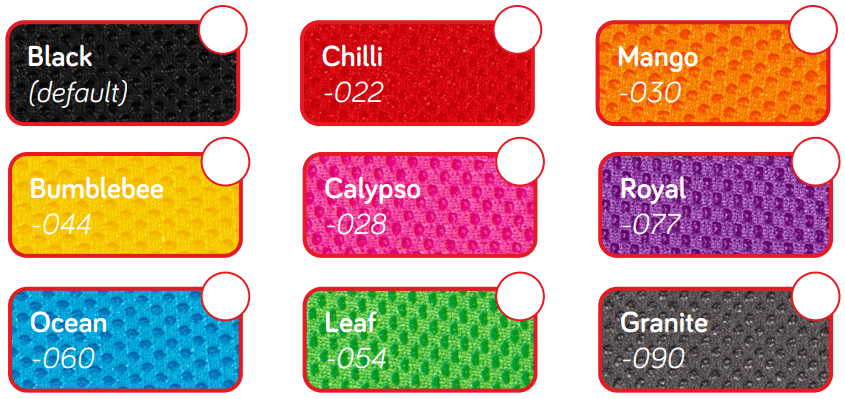

SELECT COLOUR
Your colour selection applies to any extra covers ordered
SELECT ACCESSORIES
| ACCESSORY | IMAGE |

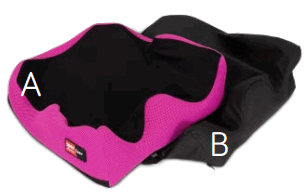

| Extra Outer Cover (A) Vigour Std: 1123-WWDD-6SC Classic Std: 1125-WWDD-6SC Classic High: 1125-WWDD-6HC (insert width & depth as relevant) Extra Incontinence Cover (B) Vigour Std: 1133-WWDD-7SC Classic Std: 1135-WWDD-7SC Classic High: 1135-WWDD-7HC (insert width & depth as relevant) |  |
| Extra Positioning Kit (Spex Classic Cushions only) 1111-0273-000 |  |
CUSTOMISE
| CUSTOMISATION | IMAGE |
| Remove Medial Thigh Contouring 1111-0335-000 Achieve flat front surface without any contouring. Ideal relief for excess tissue and to facilitate easy transfers. |  |
| Front Surface Cut-Back U = _______ 1111-0281-000 Sloping front for users with excess tissue or to provide relief when transferring and/or foot propelling. |  |
SELECT XLELLA STYLE

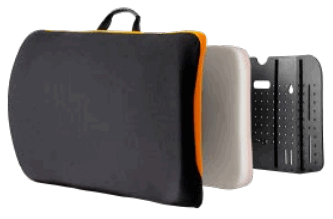

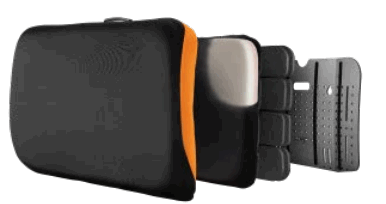

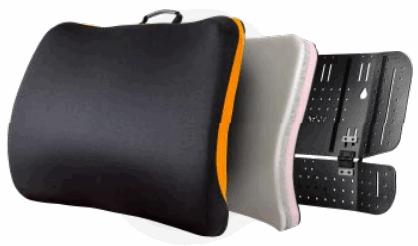

| XLella, Vigour Padding | XLella, Classic Padding | XLella2, Biangular |
 |  |  |
| 1258-WWHH-00H | 1258-WWHH-0SS | 1258-WWHH-200 |

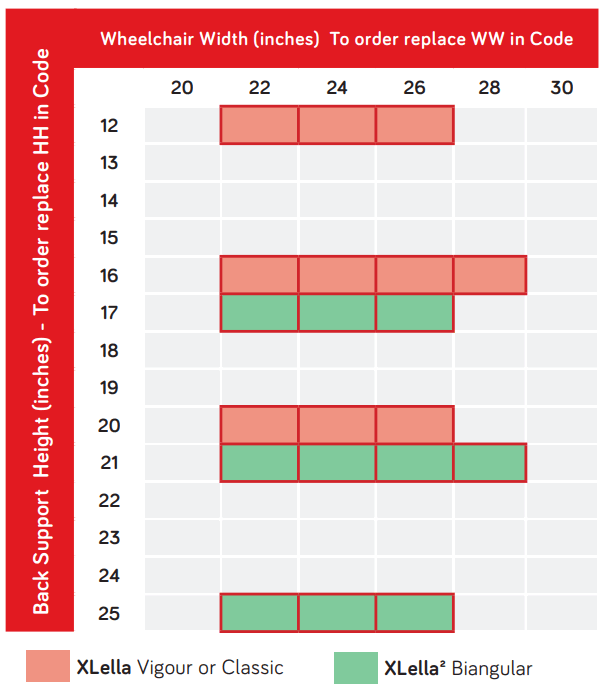

SELECT SIZING
SELECT COLOUR
SELECT HARDWARE – FOR XLELLA
| ITEM | IMAGE |

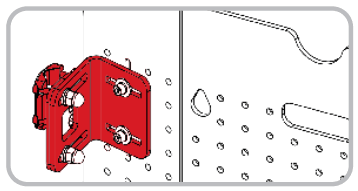

| Fixed Bariatric Hardware (default) 1259-2500-100 |  |

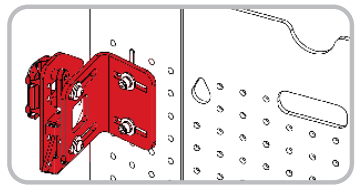

| Quick-Release Bariatric Hardware 1259-2505-100 |  |
SELECT UPGRADES & ACCESSORIES
| ITEM | IMAGE |

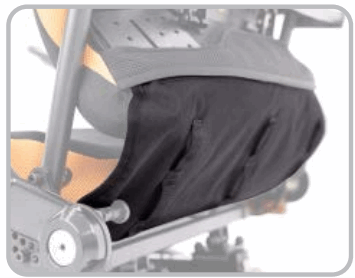

| Cover Extension 22” 1258-2200-500 24” 1258-2400-500 26” 1258-2600-500 28” 1258-2800-500 |  |

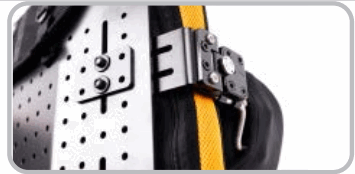

| Reinforcement Plate for Lateral Supports (forceful side leaning or users over 100kg) 1266-2450-100 |  |

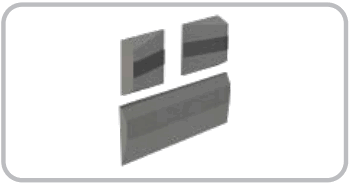

| Back support lumber pad and lateral stability wedges 1209-2713-300 |  |

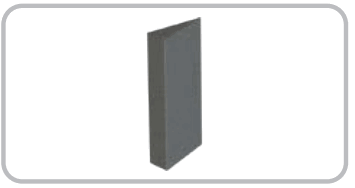

| Asymmetric narrow contour wedge (200mm x 100mm x 40mm) 1209-2722-300 |  |

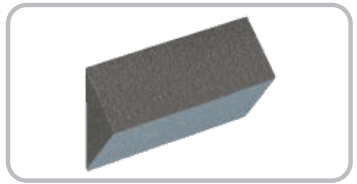

| Asymmetric bi-angular contour wedge (200mm x 100mm x 40mm) 1209-2723-300 |  |

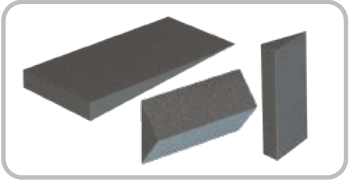

| Asymmetric contour kit 1209-2720-300 |  |

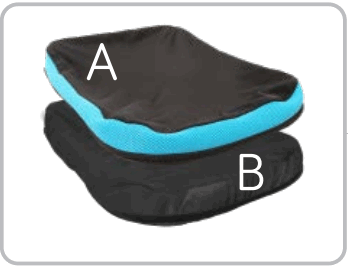

| Extra Outer Cover (A) |  |
| Incontinence Cover (B) | |

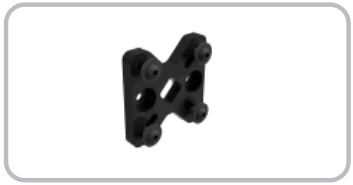

| Heavy-Duty kit for Stylo Head Support 1274-0000-HDK |  |

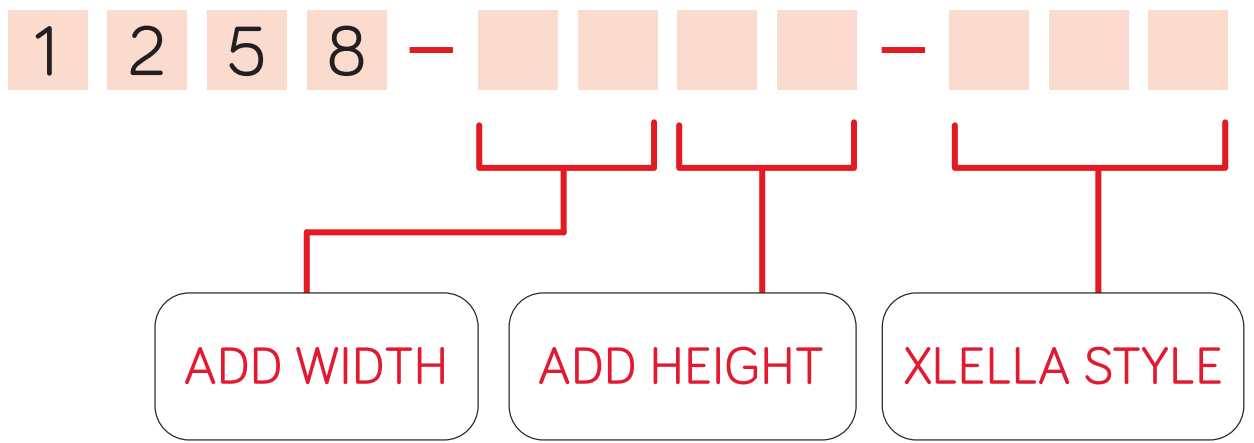

BUILD CODE
REFER TO THE XLELLA BACK SUPPORT CODES ABOVE
Spex Ltd
32 Detroit Drive
Rolleston 7675
New Zealand
+64 3 307 9790
[email protected]
www.spexseating.com
Spex – Clinical Wheelchair Seating for Faster Results
