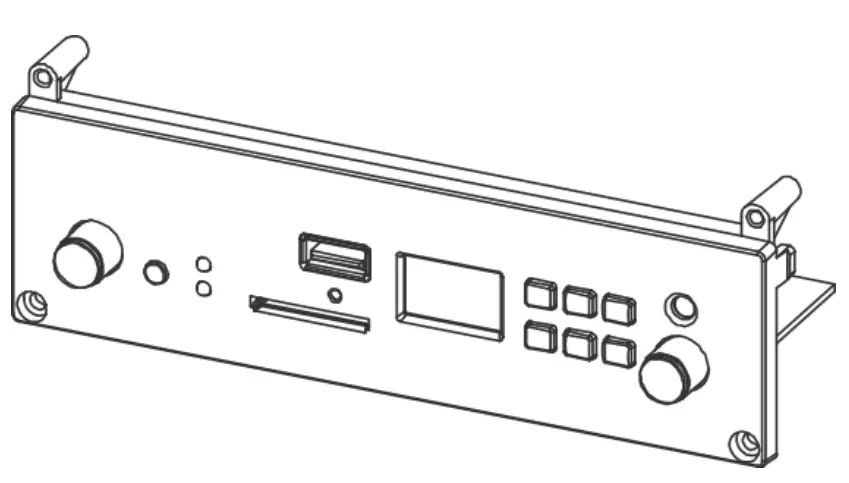

DPRB-600/500M MP3 Recorder Player + Bluetooth Receiver Module

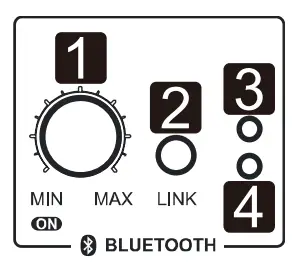

Bluetooth receiver section (LEFT)
- Power/volume control
- LINK button
- LOCK LED
- SCAN LED
Linking instruction
- Turn on the Bluetooth receiver and the LOCK LED will flash GREEN.

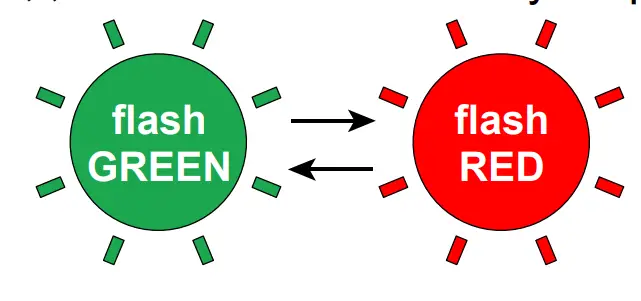

- Approximately 9 seconds later, the LOCK and SCAN LEDs will flash GREEN and RED, , which means it is ready for pairing.
- Activate BLUETOOTH on your device (phone, tablet, PC., etc) and pair with external BLUETOOTH device named “BT AUDIO”. After successful linking, the LOCK
LED will be solid GREEN and you can play your music.

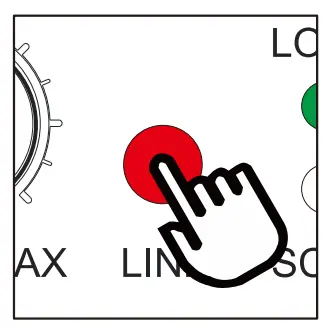

- Pressing LINK button can cut the connection.
Important
- Press SWITCH button for disconnection and getting ready for new pairing.
- The BLUETOOTH can memorize and automatically connect to last-paired device.

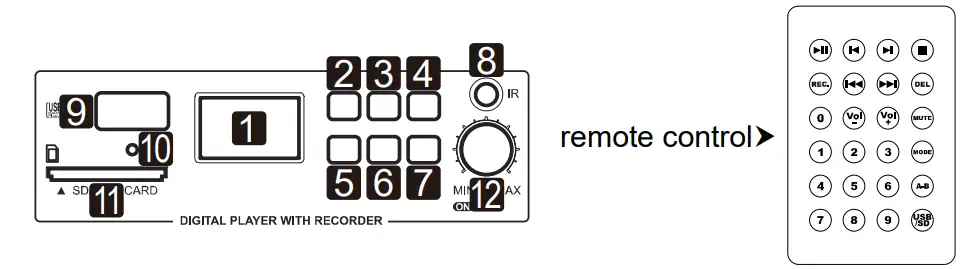

Digital recorder player section (RIGHT)
- LCD display
- Press to return to previous track, press and hold to fast reverse.
- Press to play/pause or stop recording. (readable formats: mp3, wav and wma)
- Press to go to next track, press and hold to fast forward.
- Press to record.
- Press to switch repeat modes.
- Press to stop playing or recording.
- IR sensor area
- USB input
- USB/SD indicator: The LED flashes greeduring playing and red during recording.lights red if there is no track to play, lightigreen when playing or recording stops.
- SD card input
- Power switch/volume control
Operating functions on the panel and the remote
| Operating function | On the panel | On the remote |
| Play/pause | Press | Press  |
| Record | Press to record and or  to stop. | Press  to record and or  to stop. |
| Skip forward | Press | Press |
| Fast forward | Press and hold | Press and hold |
| Skip backward | Press | Press |
| Fast backward | Press and hold | Press and hold  |
| Next folder | – | Press |
| Previous folder | – | Press |
| Track select (#0-9) | – | input track number, then press |
| USB/SD switch | – | Press |
| Repeat mode switch (ALL / SINGLE FOLDER) | Press | Press  |
| Volume control | – | Press  |
| A-B section play | – | Press  to start, again to playsection and again to stop |
| Delete tracks | – | Press  to delete track and again to confirm your delete |
| Mute | – | press to mute/recover |
Note:
- Supports FAT and FAT32 file systems only.
- Supports MP3, WAV and WMA music formats only
- Record track format: MP3; Bit rate: 128kbps; Sampling frequency: 44kHz
- Recordable only when USB/SD is detected.
- Record files will be stored in the RECORD folder of USB/SD.
- The files will be named as FILE_001, FILE_002, FILE_003…etc.
- The name of a deleted track won’t be applied to its next one.
- Recordable until FILE_999 appears with LCD displaying “Num Full”.
- LCD displays USB FULL or “SD FULL” when insufficient memory left.
- LCD displays SD LOCK if the SD is locked.
- Don’t remove the USB/SD during the recording process in case the interrupted track might be damaged.
