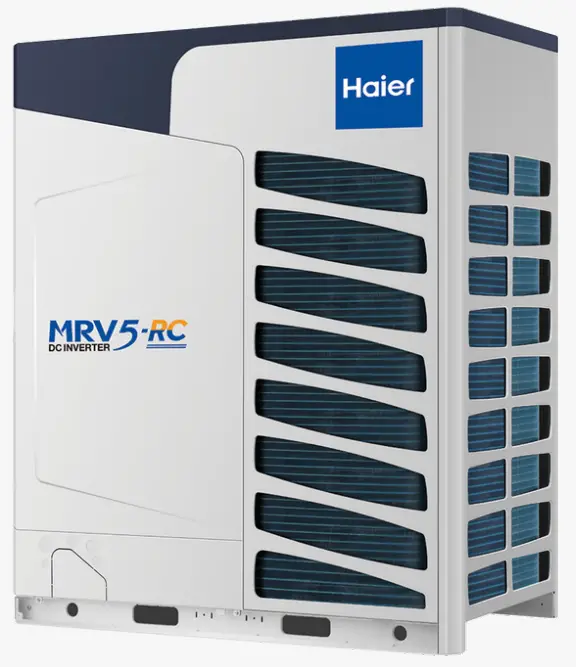

Haier’s heat recovery outdoor unit and new valve box offer simultaneous cooling and heating in one system, with multiple indoor unit choices.
Three-pipe full DC inverter heat recovery system
Heating and cooling, with an operational range from -23°C to 50°C Outdoor units can work in parallel to power a range of indoor units
Total connected pipe length up to 1000m with 110m lift height

Commercial scale solutions

Outdoor units can work in parallel, providing combined cooling or heating capacity up to 224kW and connecting to up to 64 indoor units of varying capacity and style.

Heat recovery

The MRV-5-RC outdoor unit and three-pipe valve box can heat and cool simultaneously using heat recovery. In a three-pipe system, heat absorbed from a cooling indoor unit can be recovered and used by another indoor unit for heating, and vice versa.

Efficiency

With full DC-inverter technology and a new four-way heat exchanger, MRV-5-RC is designed to heat and cool large spaces efficiently.

Choose your indoor unit

Choose from our wall mount, slim duct, high static duct, compact cassette, and large cassette indoor air conditioner units to suit your environment.

Simple maintenance

The electrical control box is designed with a hinge to easily lift and swing open for faster servicing and diagnostics.

Optional central controller

For personalized control of the whole system, a wall-mounted controller lets you manage individual indoor units, groups, or zones from a single point.

Capacity

Consumption

Features

Installation

Performance

Power Requirements

Depth 750 mm
QUICK REFERENCE GUIDE > AV16IMAURA
Height 1690 mm
Net weight 385kg mm
Width 1410 mm
SKU 51530
The product dimensions and specifications on this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time.
