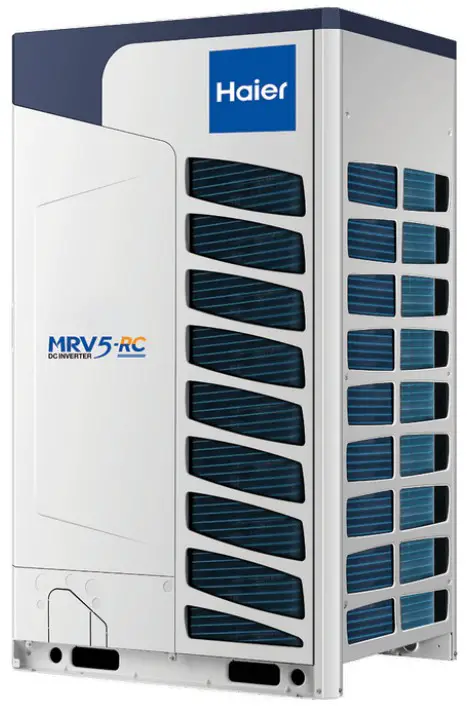

MRV-5-RC Heat Recovery
Outdoor, 33kW
White
QUICK REFERENCE GUIDE > AV12IMAURA
AV12IMAURA MRV-5-RC Heat Recovery Outdoor, 33kW
Haier’s heat recovery outdoor unit and new valve box offer simultaneous cooling and heating in one system, with multiple indoor unit choices.
- Three-pipe full DC inverter heat recovery system
- Heating and cooling, with an operational range from -23°C to 50°C
- Outdoor units can work in parallel to power a range of indoor units
- Total connected pipe length up to 1000m with 110m lift height
DIMENSIONS
| Height | 1690 mm |
| Width | 980 mm |
| Depth | 750 mm |
FEATURES & BENEFITS
Commercial scale solutions
Outdoor units can work in parallel, providing combined cooling or heating capacity up to 224kW and connecting to up to 64 indoor units of varying capacity and style.
Heat recovery
The MRV-5-RC outdoor unit and three-pipe valve box can heat and cool simultaneously using heat recovery. In a three-pipe system, heat absorbed from a cooling indoor unit can be recovered and used by another indoor unit for heating, and vice versa.
Efficiency
With full DC-inverter technology and a new four-way heat exchanger, MRV-5-RC is designed to heat and cool large spaces efficiently.
Choose your indoor unit
Choose from our wall mount, slim duct, high static duct, compact cassette and large cassette indoor air conditioner units to suit your environment.
Simple maintenance
The electrical control box is designed with a hinge to easily lift and swing open for faster servicing and diagnostics.
Optional central controller
For personalised control of the whole system, a wall-mounted controller lets you manage individual indoor units, groups or zones from a single point.
SPECIFICATIONS
| Capacity | |
| Cooling capacity (kW) | 33.5kW |
| Heating capacity (kW) | 35kW |
| Consumption | |
| COP | 3.78 |
| EER | 3.65 |
| Features | |
| Compressor type | DC INV. SCROLL |
| Inverter controlled compressor | • |
| Installation | |
| Connectible indoor unit ratio | 50-130% |
| Liquid line | 12.7mm |
| Maximum number indoor units | 20 |
| Suction line | 25.4mm |
| Performance | |
| R410a refrigerant | • |
| Sound power SWL (outdoor) | 85dBA |
| Working temperature cooling | -5°C ~ +50°C |
| Working temperature heating | -23°C ~ +21°C |
| Power Requirements | |
| Power phase | 3 |
| Power supply | 50Hz |
| Supply voltage | 400V |
| Product dimensions | |
| Depth | 750 mm |
| Height | 1690 mm |
| Net weight | 267kg mm |
| Width | 980 mm |
| SKU | 51528 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
