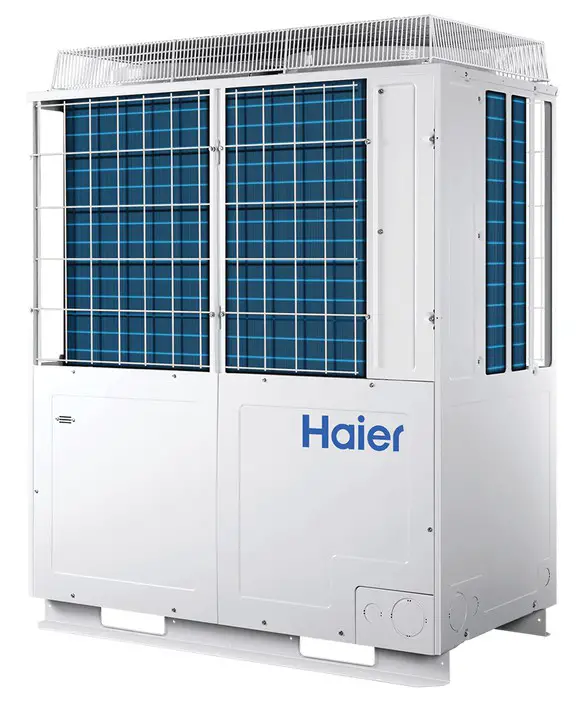

QUICK REFERENCE GUIDE > AV10NMMEUA
MRV-IV-C, 28.0 kW
White
DIMENSIONS
| Height | 1690 mm |
| Width | 1350 mm |
| Depth | 720 mm |
SPECIFICATIONS
| Capacity | |
| Cooling capacity (kW) | 28kW |
| Heating capacity (kW) | 31.5kW |
| Consumption | |
| COP | 3.75 |
| EER | 3.56 |
| Features | |
| Compressor type | Rotary |
| Inverter controlled compressor | • |
| Installation | |
| Connectible indoor unit ratio | 50-160% |
| Liquid line | 9.52mm |
| Maximum number indoor units | 20 |
| Performance | |
| R410a refrigerant | • |
| Sound power | 57dBA |
| Sound pressure | 73dBA |
| Working temperature cooling | -23°C ~ +21°C |
| Working temperature heating | -20°C ~ +27°C |
| Power Requirements | |
| Power supply | 220-240vac |
| Product dimensions | |
| Depth | 720 mm |
| Height | 1690 mm |
| Net weight | 276kg mm |
| Width | 1350 mm |
| SKU | 51413 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
