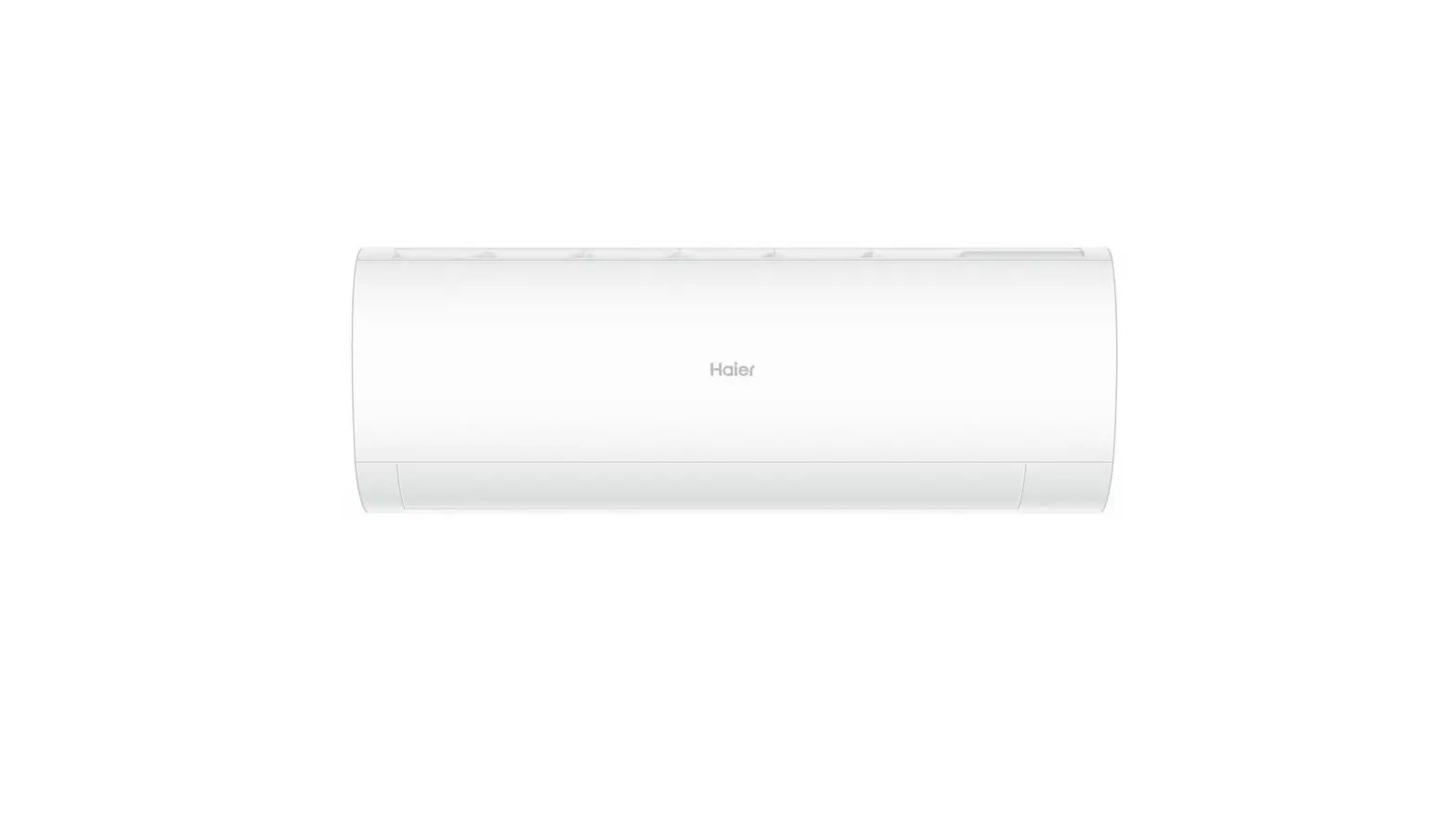

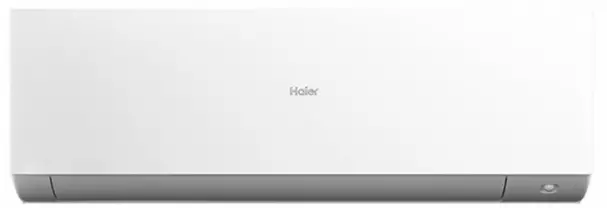

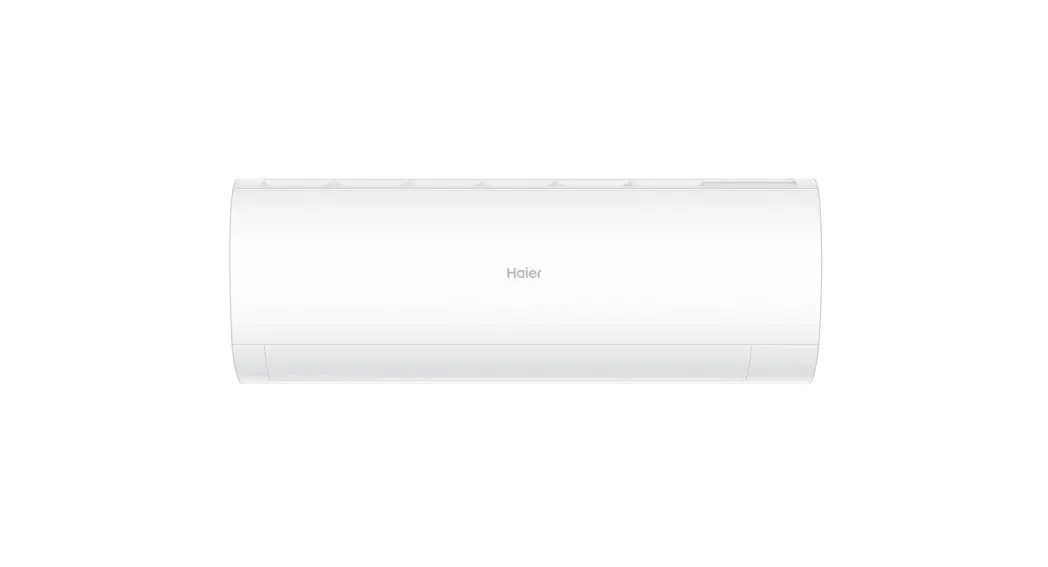

Haier AS35XCAHRA Air conditioner EXPERT Plus DC Inverter Super
Residential MonoSplit Inverter
- Easy Installation
- I feel
- Self-Clean
- Eco Sensor
- Wi-Fi control integrated
- Easy to Clean
- 2-Way Pipe Design
- UVC Pro
| INDOOR UNIT | Model | AS25XCAHRA | AS35XCAHRA | AS50XCAHRA | |
| OUTDOOR UNIT Performance data | Model | 1U25S2SM1FA-2 | 1U35S2SM1FA-2 | 1U50S2SJ2FA | |
| Output power – COOLING | nom (min-max) | kW | 2,80 (0,80-3,20) | 3,50 (1,00-4,00) | 5,00 (1,40-5,50) |
| Output power – HEATING | nom (min-max) | kW | 3,20 (0,80-4,20) | 4,20 (1,00-5,20) | 5,60 (1,70-6,20) |
| Absorbed power – COOLING | nom (min-max) | kW | 0,651 (0,20-1,20) | 0,875 (0,30-1,40) | 1,470 (0,50-2,00) |
| Absorbed power – HEATING | nom (min-max) | kW | 0,761 (0,30-1,50) | 1,037 (0,50-1,60) | 1,509 (0,52-2,30) |
| Energy class | EER | W/W | 4,30 | 4,00 | 3,40 |
| COP | W/W | 4,20 | 4,05 | 3,71 | |
| COOLING Pdesign | 35 °C | kW | 2,80 | 3,50 | 5,00 |
| HEATING Pdesign | (-10 °C) | kW | 2,50 | 2,80 | 4,60 |
| Energy class | SEER | 8,80 (A+++) | 8,50 (A+++) | 6,60 (A++) | |
| SCOP | 4,75 (A++) | 4,75 (A++) | 4,30 (A+) | ||
| Annual Energy Consumption – COOLING | kWh/a | 111 | 144 | 265 | |
| Annual Energy Consumption – HEATING | kWh/a | 737 | 825 | 1498 | |
| Indoor Unit | |||||
| Power supply | Ph/V/Hz | 1/220~240/50 | 1/220~240/50 | 1/220-240/50 | |
| Treated air volume | H | m3/h | 730 | 800 | 880 |
| Dehumidification | L/h | 1,2 | 1,6 | 2,0 | |
| High sound power – COOLING | dB | 56 | 57 | 60 | |
| High sound power – HEATING | dB | 56 | 57 | 60 | |
| Sound pressure – COOLING | dB(A) | 39/32/25/16 | 40/33/26/17 | 45/37/29/20 | |
| Sound pressure -HEATING | dB(A) | 39/32/25/16 | 40/33/26/17 | 45/37/29/20 | |
| Net dimensions | WxDxH | mm | 895x313x236 | 895x313x236 | 895x313x236 |
| Packaging dimensions | WxDxH | mm | 964x386x316 | 964x386x316 | 964x386x316 |
| Net/gross weight | kg | 11,3/14,0 | 11,3/14,0 | 11,6/14,2 | |
| Outdoor Unit | |||||
| Power supply | Ph/V/Hz | 1/220~240/50 | 1/220~240/50 | 1/220-240/50 | |
| Power cable | N x mm2 | 3 x 1,5 | 3 x 1,5 | 3 x 2,5 | |
| Interconnection cable | N x mm2 | 4 x 1,0 | 4 x 1,0 | 4 x 1,0 | |
| Sound power | H | dB | 59 | 61 | 63 |
| Sound pressure | H | dB(A) | 48 | 49 | 51 |
| Running current cooling/heating | Max | A | 6,8/6,8 | 7,2/7,2 | 10,3/10,3 |
| Starting current cooling/heating | Max | A | 1,5/1,5 | 1,5/1,5 | 2,0/2,0 |
| Net dimensions | WxDxH | mm | 800x275x553 | 800x275x553 | 820x338x614 |
| Packaging dimensions | WxDxH | mm | 908x405x625 | 908x405x625 | 993x413x685 |
| Net/gross weight | kg | 27,6/30,4 | 30/32,9 | 37,8/41,5 | |
| Compressor type | Rotary Inverter | Rotary Inverter | Twin rotary inverter | ||
| Installation data | |||||
| Refrigerant | R32 | R32 | R32 | ||
| Liquid pipe | Ø | mm (inch) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) |
| Gas pipe | Ø | mm (inch) | 9,52 (3/8) | 9,52 (3/8) | 12,70 (1/2) |
| Standard pipe length without refrigerant charge | m | 7 | 7 | 7 | |
| Maximum pipe length | m | 20 | 20 | 25 | |
| Maximum IU – OU elevation | m | 10 | 10 | 15 | |
| Refrigerant charge in the factory | kg | 0,63 | 0,78 | 0,95 | |
| Refrigerant charge in the factory | TCO2eq | 0,43 | 0,53 | 0,64 | |
| Additional ref. charge over std length | g/m | 20 | 20 | 20 | |
| Operating limits – COOLING (in/out) | min-max | °C | 21~35ºC/-20~43ºC | ||
| Operating limits – HEATING (in/out) | min-max | °C | 10~27ºC/-20~24ºC | ||
The data in this catalogue is purely indicative as the data may vary. Please be advised to check the accuracy of the data with the supplier before purchasing products.
WI-FI CONTROL
Haier’s new Wi-Fi “hOn” app, enables you to take control of all the Haier group appliances in your Smart Home from a single app on your smartphone or tablet.
The hOn app allows you to manage all the basic functions and much more. The app can also respond to voice commands because it is compatible with Google Assistant and Alexa.
TECHNOLOGY
Integrated Wi-Fi module
The Wi-Fi module is already built into the air conditioner.
In order to control the units via smartphone or tablet it is necessary to download the hOn spp from the App StoreGoogle Play and Huawei AppGallery. You can also use the QR Code here to locate the app.
BENEFIT
Customised Service
Here are some of the functions you can enjoy with “hOn” app.
Group Control
Control multiple units on one single smart phone device.
Error Alert
Error code is shown on the app when it malfunctions.
Voice In APP
Built-in voice control for easy for the interaction.
Smart Reminder
Sends regular notifications to user to clean the filter mesh.
Convenient Control
Controls air conditioner from anywhere and anytime via network.
Holiday Mode
Set holiday mode with one simple touch.
Weekly Timer
Sets temperature and fan speed for the week ahead.
Custom Program
One button for user DIY program.
Energy Consumption
Know your electricity consumption in real time.

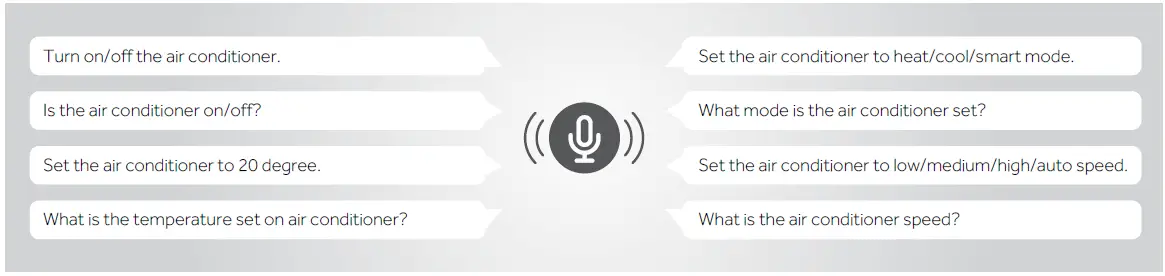

Total comfort is also when words are worth more than actions. With Haier’s voice control function, you can manage the main functions of one or more air conditioners, simply through verbal communication.
To use this function, you must ensure that the Haier air conditioning units are connected to the Wi-Fi network and configured with a Smart Home. (Smart Home device not supplied by Haier for compatible devices, please contact head office).
TECHNOLOGY
hOn App
The new hOn App is a single digital environment to control, manage and enjoy, getting the most out of all Haier group products.
With the hOn App, it is possible to control all your Haier Group smart appliances, using voice control via the most popular voice assistants. It was created, using the latest technologies for smart appliances, to make it simpler and easier to use.
BENEFIT
Customised Service
Here are some of the functions you can enjoy with “hOn” app.
ECO SENSOR
TECHNOLOGY

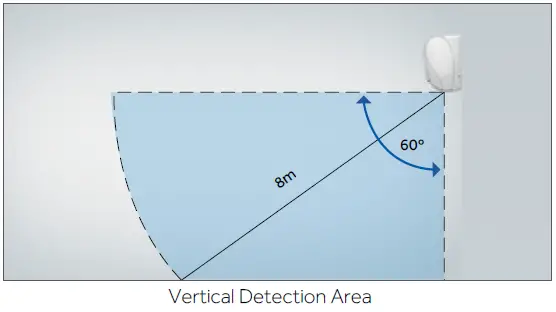

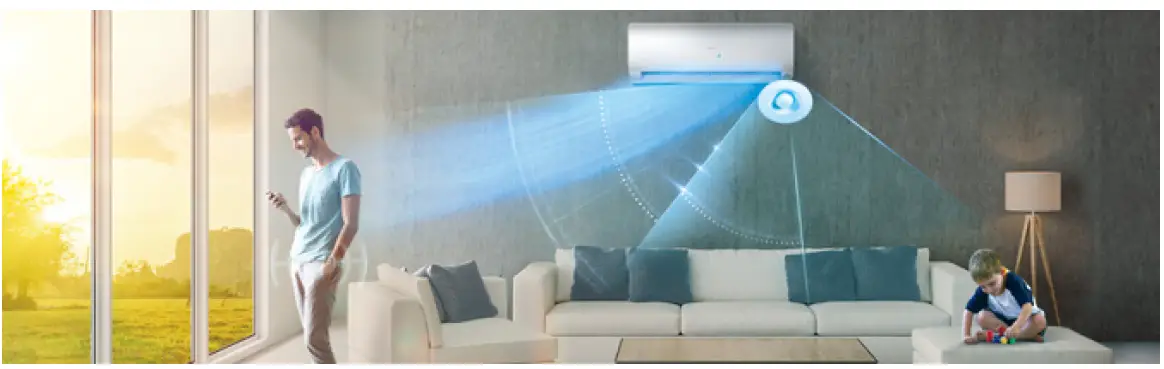

The smart sensor detects the condition of air and people’s movement in real time, automatically adjusting the operating mode of the air conditioner to improve energy efficiency and optimise the users experience.

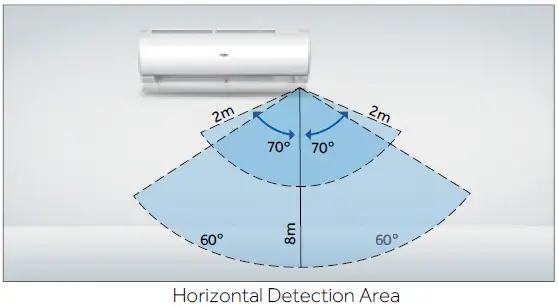

With two built-in modules, the Eco sensor uses a double area detection with a maximum angle of 120 degrees and a distance of 8m. The sensor automatically detects the presence of people inside a room and adjusts the air flow by activating the “Follow” or “Avoid” mode according to your specific needs.
A larger area of detection and the identification of people’s exact location ensure the best possible user experience. The brightness sensor detects any change in light intensity. When night falls or the light goes out, the air conditioner enters “sleep” mode.
BENEFIT

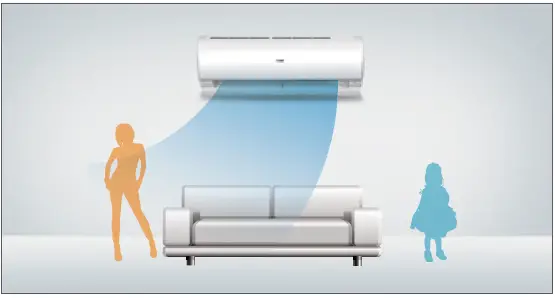

Increased Comfort
If a high body temperature is detected, the fresh air flow is directed towards the person. If a low body temperature is detected, the air flow is diverted.
Energy Saving

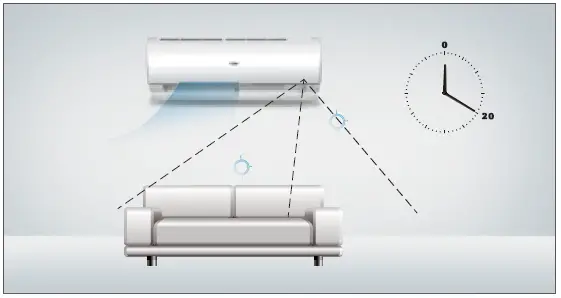

The Echo sensor automatically detects the location and movements of people in the room. If the room is empty, the air conditioner activates the power saving mode within 20 minutes.

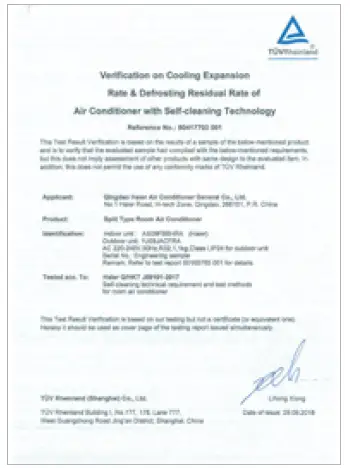

SELF-CLEAN FUNCTION
During operation, dirt accumulates on the evaporator. If the evaporator is not cleaned regularly, accumulated dirt reduces the thermal exchange by 15-30% and also promotes the proliferation of bacteria and mould.
TECHNOLOGY
Cold expansion technology
The layer of frost that forms on the evaporator/condenser generates a strong force of cold expansion that easily removes dirt from the surface.

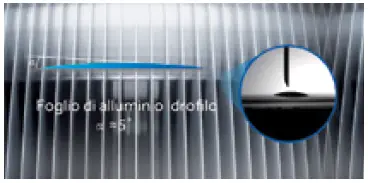

Express washing technology
Low-angle hydrophilic aluminium foil speeds up water drainage by 20%.

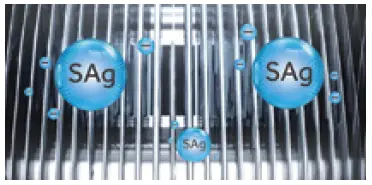

Antibacterial technology
The coating contains silver nanoparticles capable of effectively killing 99% of the bacteria by inhibiting their proliferation.
The new Self Clean technology is the first of its kind to integrate the self-cleaning function of both the evaporator and the condenser. It starts with cleaning the evaporator, then switches to cleaning the condenser without stopping the compressor.

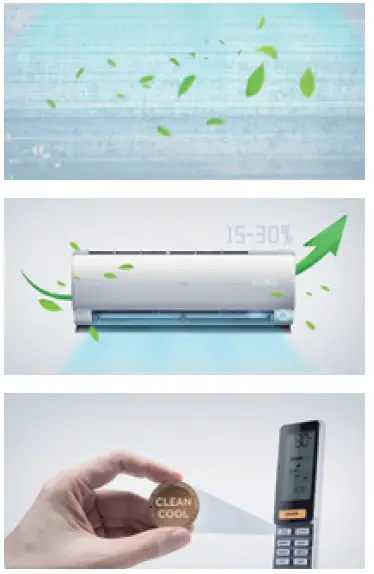

BENEFIT
Cleaner air
This innovative technology allows you to kill bacteria and keep the evaporator clean.
Increased energy efficiency
Our air conditioner always works at maximum cooling capacity with very high energy efficiency.
Savings on cleaning costs
The automated cleaning process eliminates the frequency of manual cleaning by a service engineer.

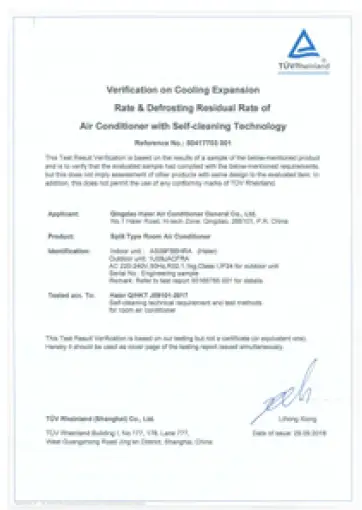

TUV Certification
UVC STERILISATION

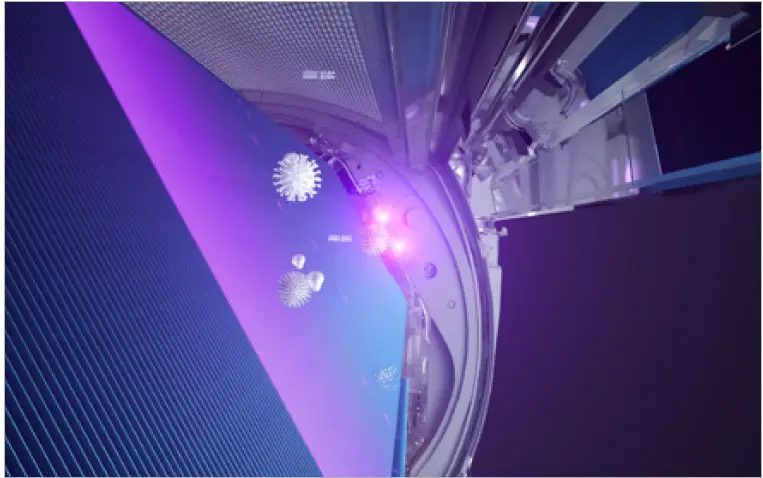

The built-in LED UV light kills airborne hazards when the air circulates from air inlet, and delivers healthy air to your room. Haier integrates UVC technology to the Commercial range, allowing duct systems to sterilize the air we breathe in offices, hotels and other commercial buildings.
TECHNOLOGY
UVC Wavelength
UVC is the shorter, and more energetic wavelength ranging from 200-280nm of the sunlight spectrum. It is particularly efficient in destroying genetic material.
Built-in UV Lights
The UV lights emit rays near the air inlet where room air circulates into the AC. The airborne hazards are instantly killed when passes through the area.
Safety Lock
When the front panel is open, the air conditioner will automatically turn off the UVC lights. It avoids potential risks of direct exposure.
BENEFIT
Safe, Reliable Operation
It eliminates airborne hazards, with no harmful chemicals, no residuals, and no burden to the environment.
Efficient Sterilisation
Haier UVC sterilisation utilises the wave-length between 265-275 nm, which is stronger in destroying the invisible pollutants in the air.
TUV Certification*
UVC STERILISATION
Haier’s UVC generator has received a Certificate of Inactivation on the Novel Coronavirus, from leading Texcell S,A, an independent viral testing laboratory in France.
The global research organisation, concluded that the Haier UVC generator inhibits 99.998% of Novel Coronavirus (SARS-CoV-2) within their sealed test facilities.
The test was conducted in a 45L enclosed box in laboratory conditions, where the Haier UVC GENERATOR effectively inhibited SARS-CoV-2, with an efficiency up to 99.998% in 1 hour.

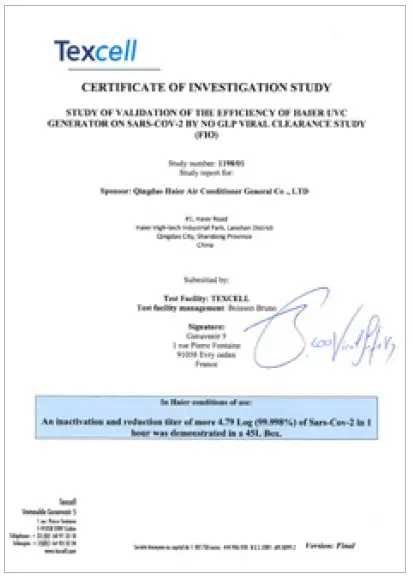

TEXCELL Certification*
UVC PRO

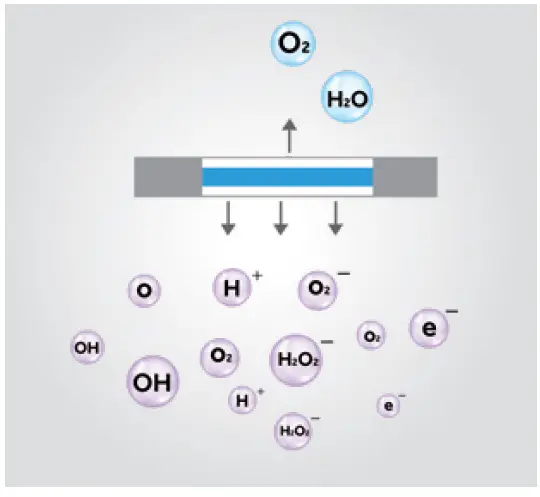

UVC Pro is a technology that works in the UV ray spectre and, in particular, in two wavelengths:
- UVC rays inhibit bacteria and virus present in the airflow that goes through the rays generated by the lamp.
- Vacuum UV rays generate hydroxyl radicals that release into the environment improving the efficiency of airborne virus and bacteria inhibition.
BENEFIT
Powerful air purification
Doubles the efficiency in air purification with UVC rays and the hydroxyl radicals generated through photolysis. Furthermore, no substance is released into the air making it environmentally conscious.
Easy to activate and manage
This function is available through the hOn APP and can be activated with a simple touch.
The UV Vacuum ray absorption induces the osmose and the following ionization of the water molecules. Several studies show that the irradiation of the water molecule with a lamp that has a wavelength of 185nm causes a quick elimination of the microscopic organisms, caused by the decomposition of the organic molecules present in the environment.

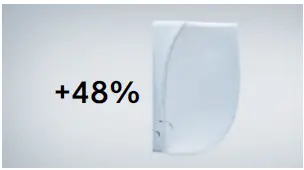

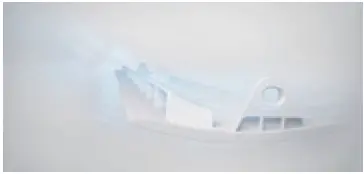

COANDA PLUS AIRFLOW

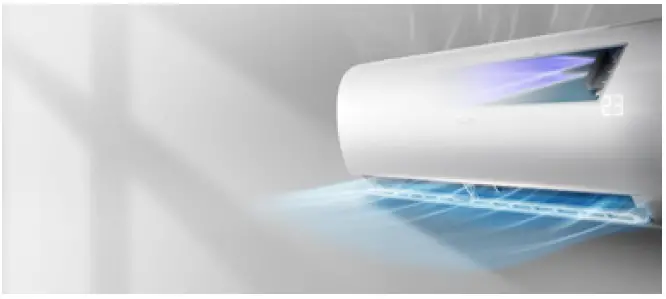

Coanda Plus Airflow enables the air to flow further, faster and strong for even air distribution through out the room.
TECHNOLOGY
The Coanda plus airflow, made up of 3 parts under micro-perspective, delivers air in a more intuitive way, and forms the all-space circulation.

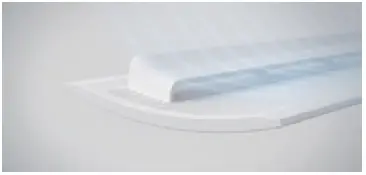

Air deflection
The application of the dual-layer wind deflector structure creates the unique Archimedean spiral that directs the cold airflow to the ceiling with 35° elevation.
Air speeds up
The optimal pressure expansion duct that is narrow inside and wide outside between dual layers where Venturi Effect occurs when air flows through the duct. Thus, the airflow is instantly released at high speed.
Supplemented Airflow
The airflow below the air deflector, absorbed tightly by the negative pressure generated by the faster airflow in-between, joins the main airflow and makes it even more stronger.
BENEFIT

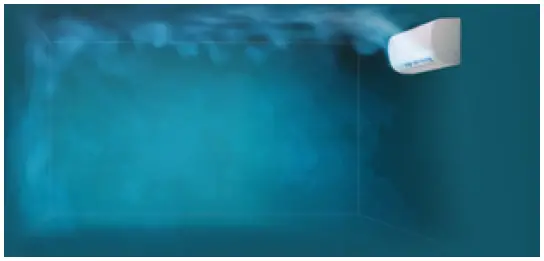

Archimedean Spiral
When the cooling mode is turned on, the cool air rises with 35° elevation to the ceiling, so users can avoid direct exposure to the cold airflow blowing out of the air conditioner. It is evenly dispersed from the ceiling to the floor of your room in a much more faster and more comfortable way.

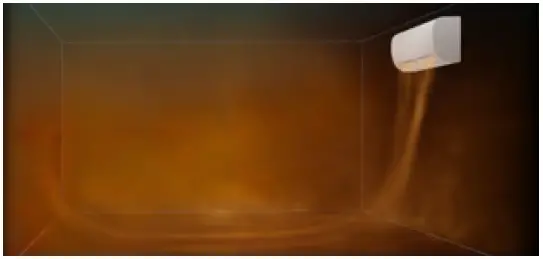

Venturi Effect
When the heating mode is turned on, the warm air is delivered directly to cover the floor. And then the warm air circulates to the whole space, and ensures the temperature is balanced at every corner of your room.
INVERTER PLUS
Compared to conventional inverter technology, Haier Inverter Plus integrates the TLFM, PID and A-PAM inverter controls to achieve intelligent control of the air conditioner, and at the same time provide maximum comfort, reliability and highly efficient performance.
TECHNOLOGY

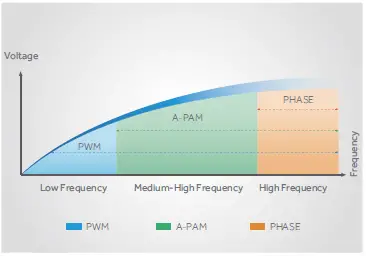

TLFM Inverter Control
TLFM (Triple Link Frequency Modulation) technology uses 3 different voltage controls to optimally manage operational efficiency at each frequency stage.

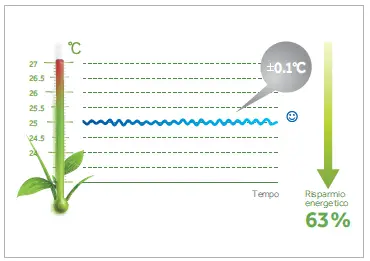

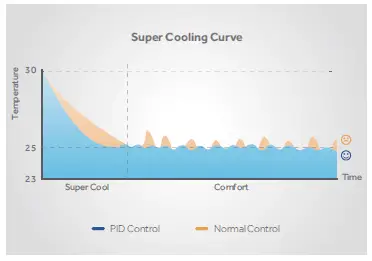

PID Inverter Control
The PID (Proportion Integration Differentiation) regulation technology optimises the operating frequency before reaching the desired temperature and then constantly makes real-time adjustments to keep the air temperature at the desired temperature.
A-PAM Inverter Control
The A-PAM (Adoption-Pulse Amplitude Modulation) inverter control technology automatically adjusts the voltage of the DC bus based on the compressor load, increasing the range of operating voltage.
BENEFIT
Energy saving Performance

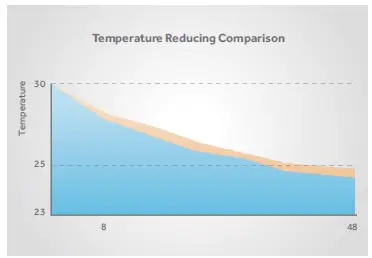

Inverter Plus reaches high operational efficiency at all frequency stages.
The cooling/heating performance is much faster and more powerful.
Fresh & comfortable airflow
When the air conditioner is on, Inverter Plus reaches the desired temperature much faster than a traditional system, Keeping it at a difference of ±0,1 ºC thanks to a precise temperature control.

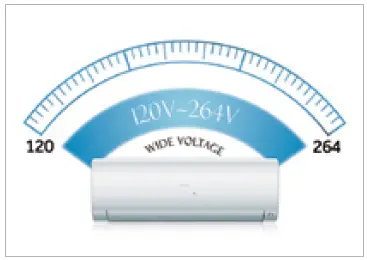

Reliability
Inverter Plus adjusts the CC voltage by achieving stable operation between 120V-264V and ideal voltage control. The fresh air is able to reach even the most distant points of the room despite the current changes.
I FEEL

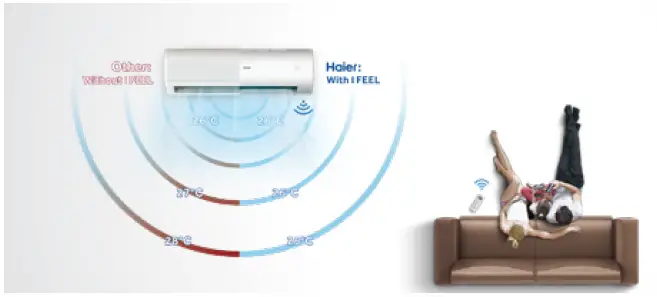

Detects the temperature around you with the remote controller no matter where you are in the room. So the air conditioner will optimise its operation based on the information to provide better air conditioning experience.
TECHNOLOGY
The performance of air conditioner may vary in different working conditions. If the room temperature is higher/lower than expected, you will feel uncomfortable. I FEEL is the least innovation in Haier’s design to bring you total comfort.
Built-in Temperature Sensor
With the high definition temperature sensor built inside, the remote controller of the air conditioner can precisely monitor the temperature around the room.
Easy Control
With a simple click on the I FEEL button on the remote controller, the air conditioner receives real-time temperature data and optimise working conditions to match the desired temperature set by users.
BENEFIT
Comfortable Experience
The function optimises the working conditions of the air conditioner to deliver airflow at the best temperature that you need.
EASY INSTALLATION
TECHNOLOGY

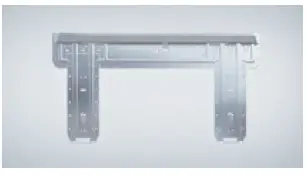

Positioning specifications
Install the mounting plate and fix the air conditioner at the appropriate height.
Easy clip (larger tubing space)
Facilitates installation with a larger workspace.

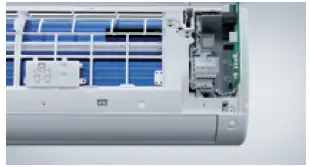

Easily accessible control panel
Simplified disassembly and maintenance without the need to dismantle the housing.
More spacing for pipes
Reduces installation time by increasing operating space to easily access the piping and electrical connections area.
Easily accessible fan motor
Simplifies disassembly and maintenance without the need to remove the evaporator.

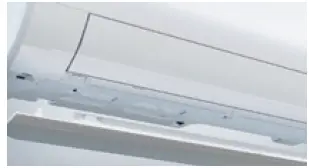

Removable bottom panel
Allows the installer to connect pipes and cables without the aid of a screwdriver.

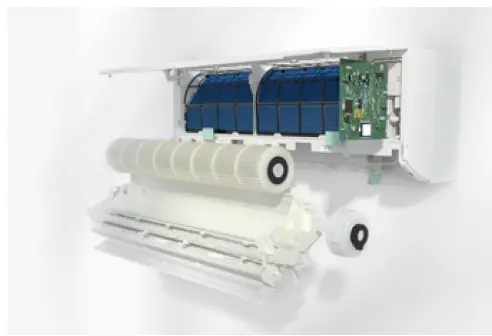

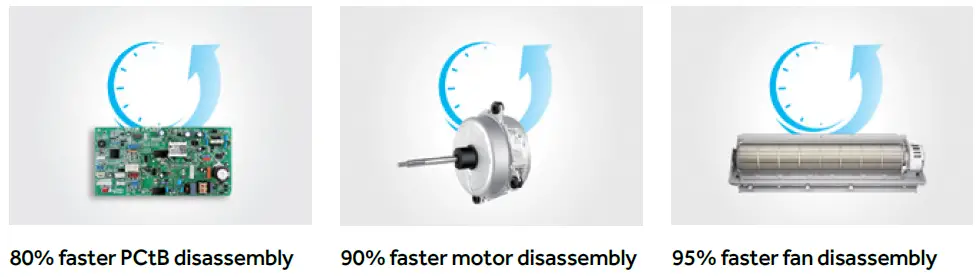

EASY-TO-DISASSEMBLE
TECHNOLOGY
PCB Disassembly
- Open the front panel
- Open the PCB cover
- Unplug the terminals and take out the PCB

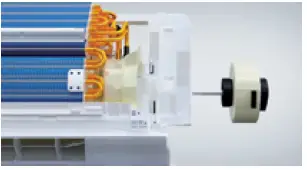

Fan and Motor Disassembly
- Open the front panel
- Detach the bottom cover
- Unplug the terminals and take out the motor and fan
BENEFIT
