QUICK REFERENCE GUIDE > AS24NS3HRA

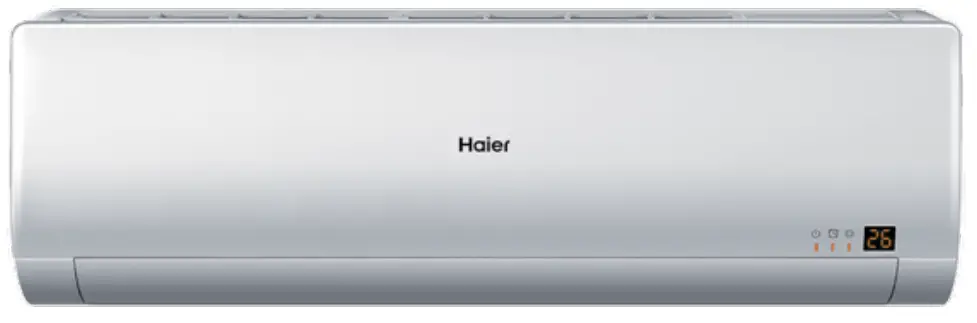

High Wall, 7.0 kW
White
DIMENSIONS
| Height | 336 mm |
| Width | 1115 mm |
| Depth | 248 mm |
SPECIFICATIONS
Capacity
| Cooling capacity (kW) | 7kW |
| Heating capacity (kW) | 7.5kW |
Features
| 24 Hour timer | • |
| Blue fin coils | • |
| Intelligent air | • |
| Power mode | • |
| Sleep mode | • |
| Standard controller | YR-HG |
| Wi-Fi controller compatible | • |
Installation
| Liquid line | 9.52mm |
| Suction line | 15.88mm |
Performance
| Airflow | 330l/s |
| Self cleaning evaporator | • |
| Sound power | 62dBA |
| Sound pressure | 47dBA |
Power Requirements
| Supply frequency | 50Hz |
| Supply voltage | 230V |
Product dimensions
| Depth | 248 mm |
| Height | 336 mm |
| Net weight | 16kg mm |
| Width | 1115 mm |
Warranty
| Parts and labour | 5 years |
| SKU | 51036 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
