QUICK REFERENCE GUIDE > AS18NS3HRA
High Wall, 5.2 kW
White

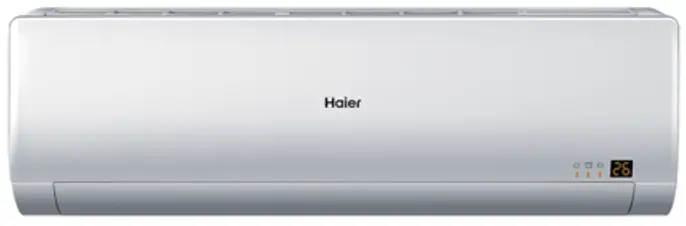

AS18NS3HRA 5.2kW High Wall Air Conditioner
DIMENSIONS
| Height | 322 mm |
| Width | 997 mm |
| Depth | 235 mm |
SPECIFICATIONS
| Capacity | |
| Cooling capacity (kW) | 5.2kW |
| Heating capacity (kW) | 5.8kW |
| Features | |
| 24 Hour timer | • |
| Blue fin coils | • |
| Intelligent air | • |
| Power mode | • |
| Sleep mode | • |
| Standard controller | YR-HG |
| Wi-Fi controller compatible | • |
| Installation | |
| Liquid line | 6.35mm |
| Suction line | 12.7mm |
| Performance | |
| Airflow | 250l/s |
| Self cleaning evaporator | • |
| Sound power | 57dBA |
| Sound pressure | 47dBA |
| Power Requirements | |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
| Product dimensions | |
| Depth | 235 mm |
| Height | 322 mm |
| Net weight | 13kg mm |
| Width | 997 mm |
| Warranty | |
| Parts and labour | 5 years |
| SKU | 51030 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and pecifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
