MONSTER Pilot Seat – Mps-1 Blackbird

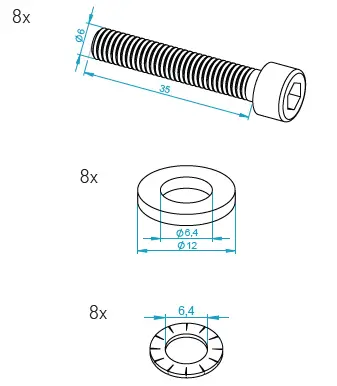

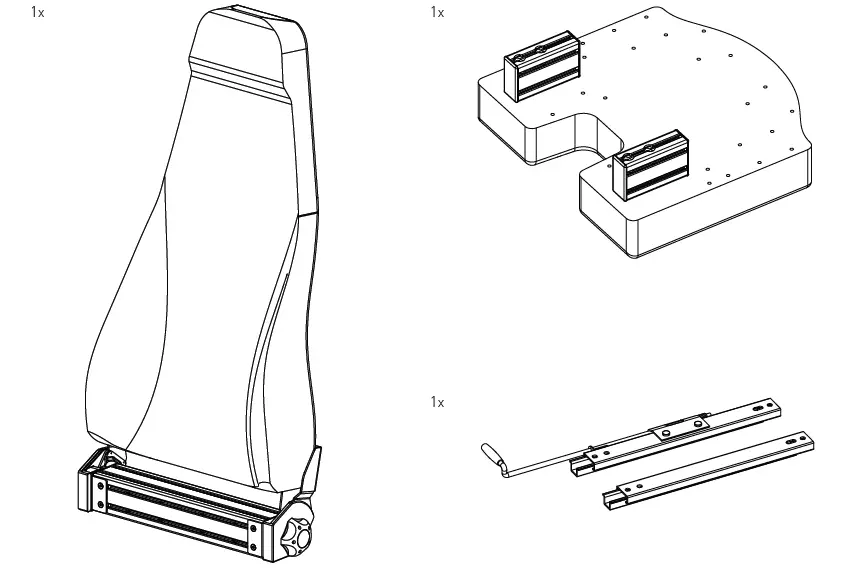

PARTS

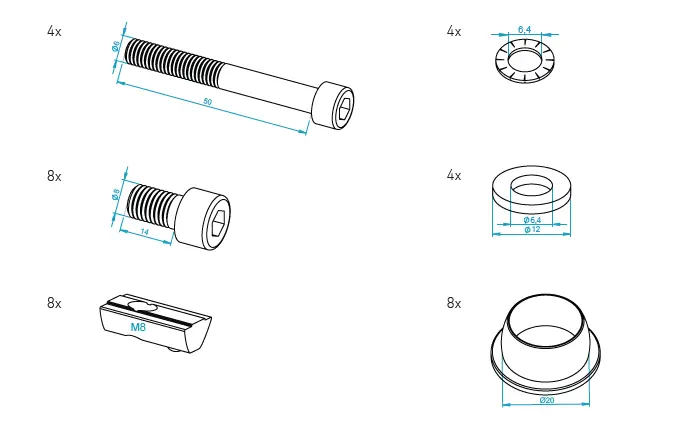

[dimensions in mm / different scales] No extra or spare parts listed!

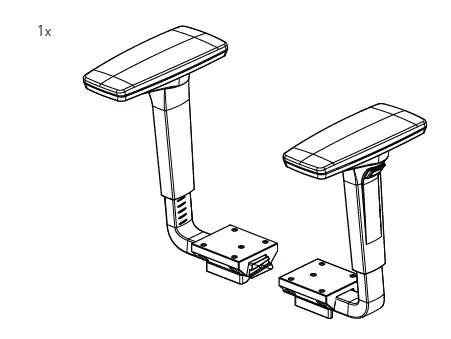

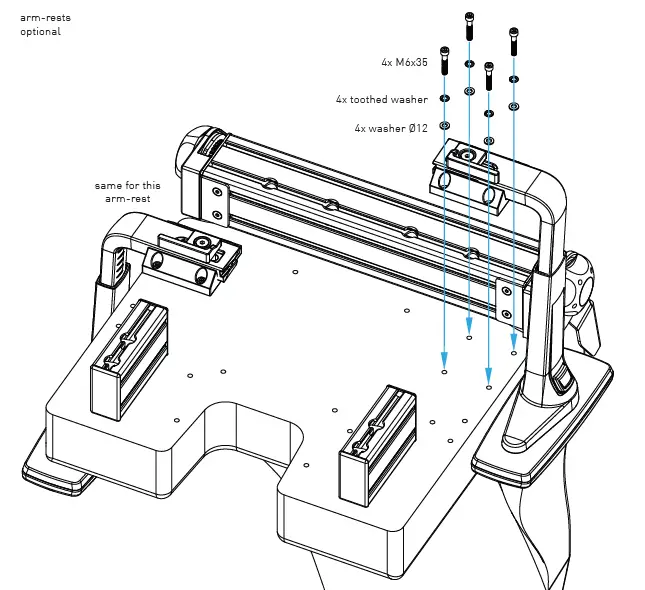

PARTS FOR OPTIONAL ARM-RESTS
Already positioned in the appropriate threads under the seat (unscrew first)

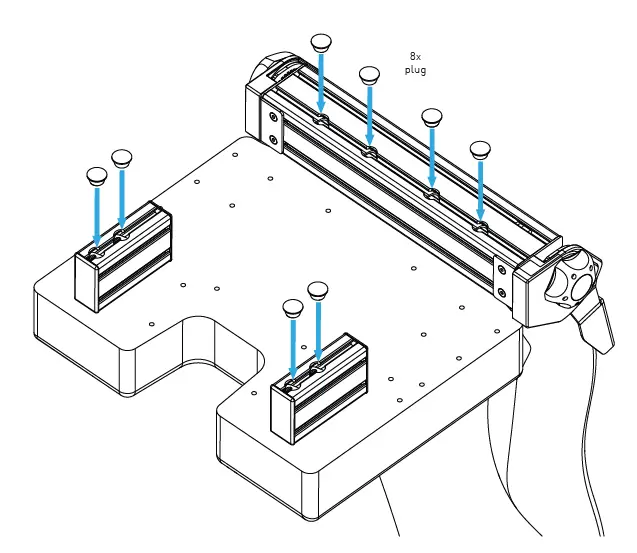

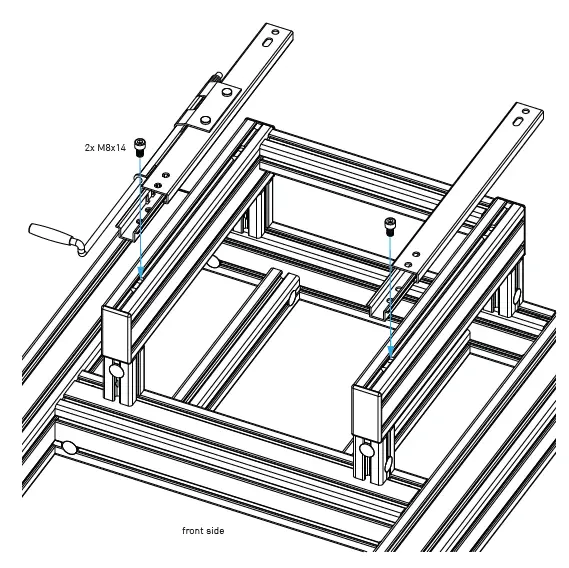

ASSEMBLY
It is not recommended to use power tools.
Please make sure the screws are running smoothly in the threads. If not readjust the screw.
Do not use too much downward pressure.

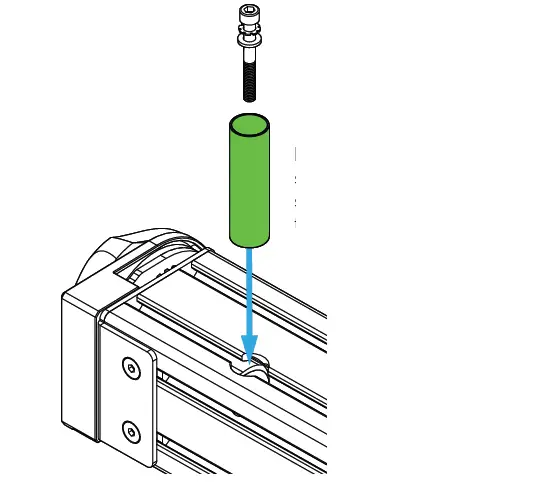

Put the tube in the bore before you insert the screw to prevent the screw from slipping into the cavities of the profile.
arm-rests optional

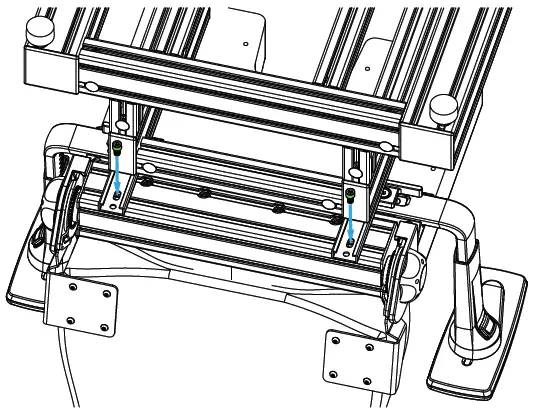

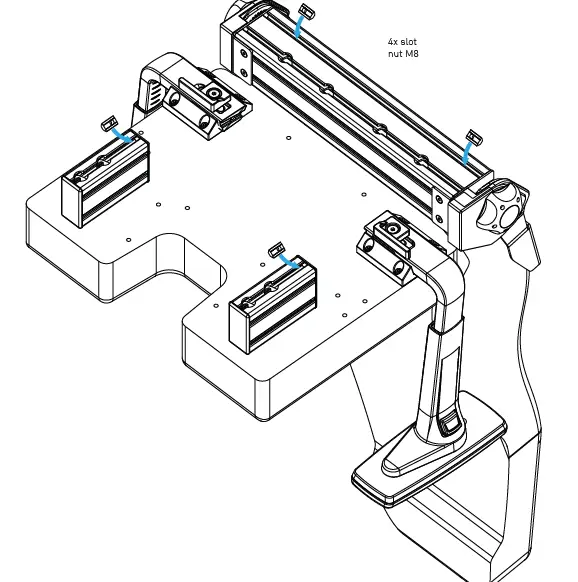

bottom view

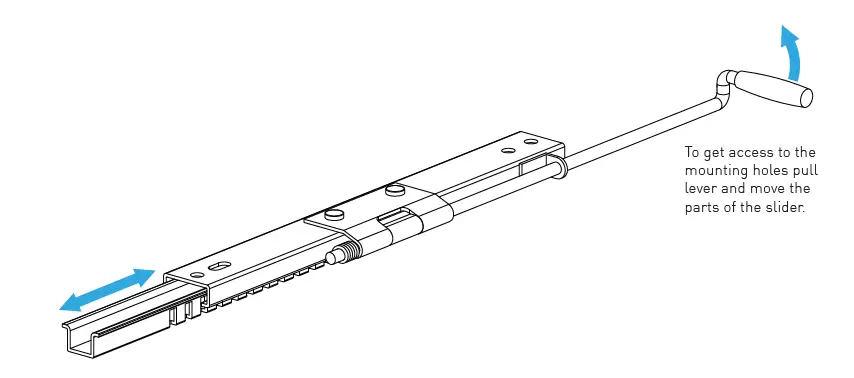

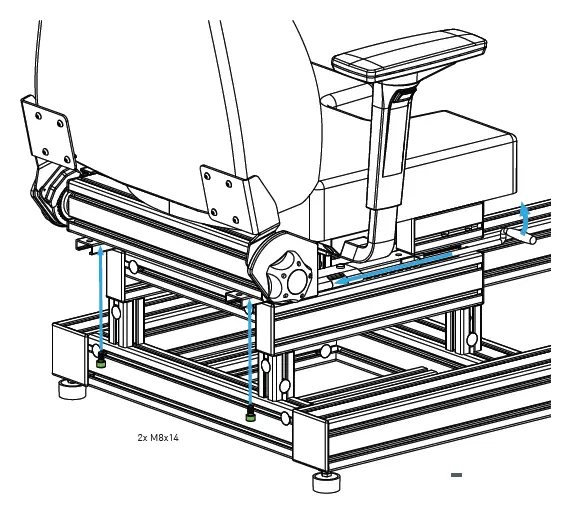

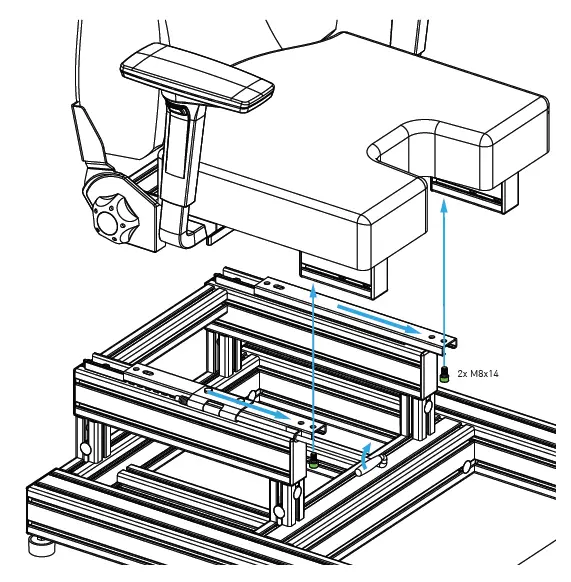

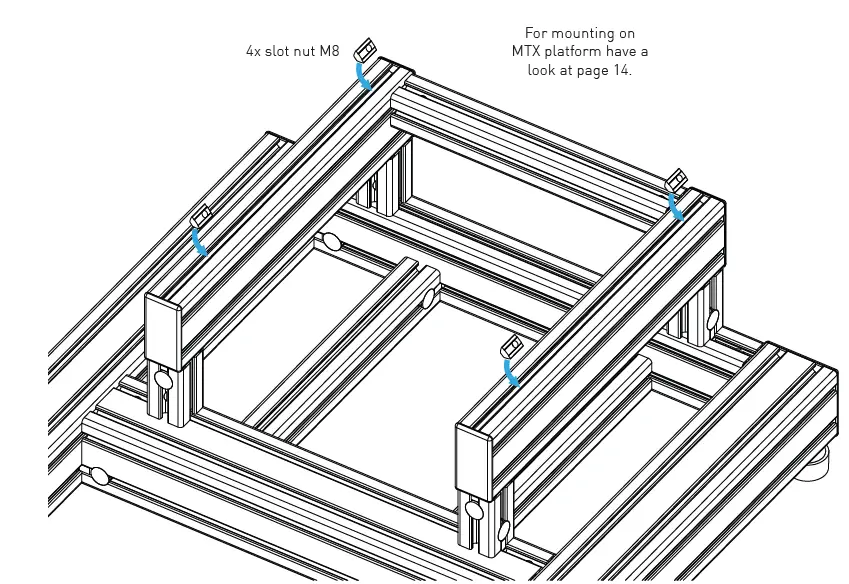

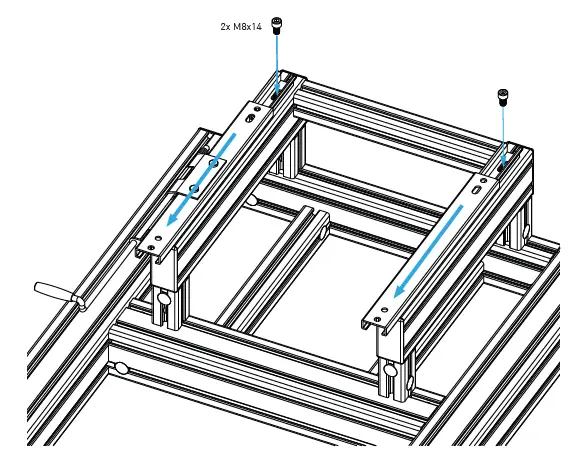

Mounting on MTX platform

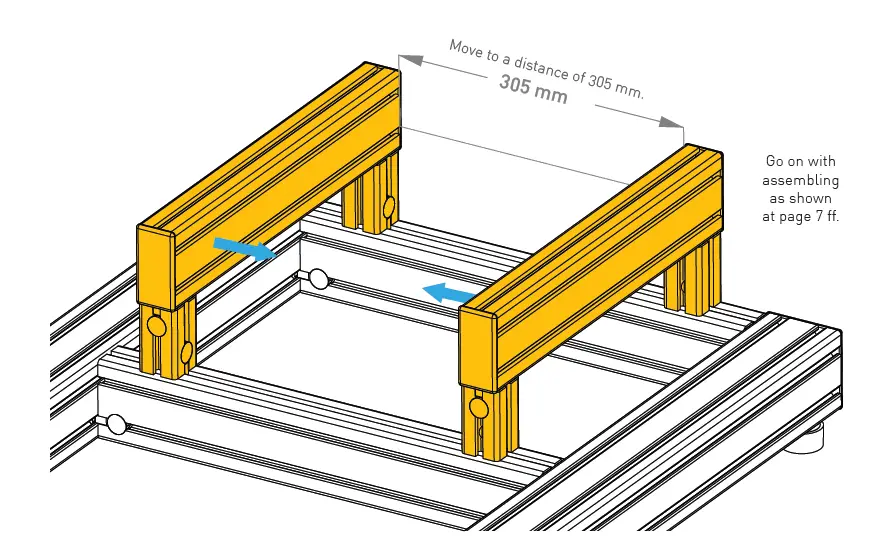

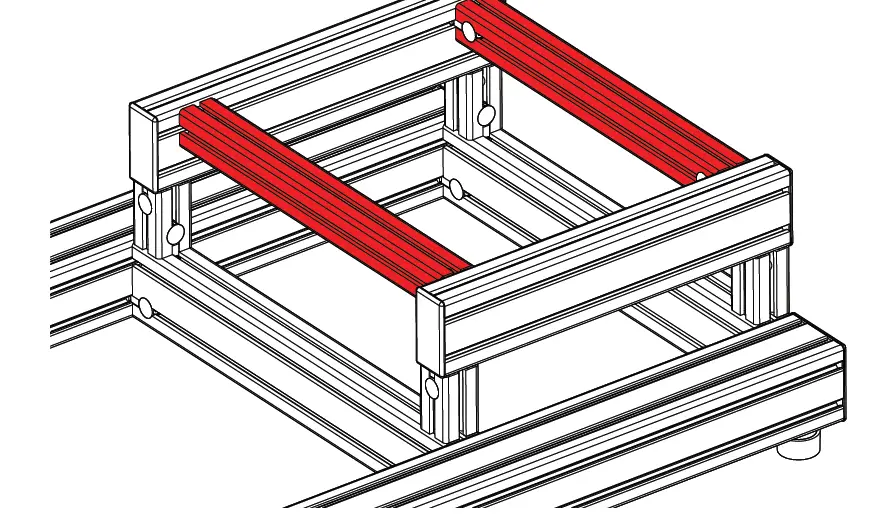

Remove the red marked profiles to prepare the MTX seat underframe for the new pilot seat.
