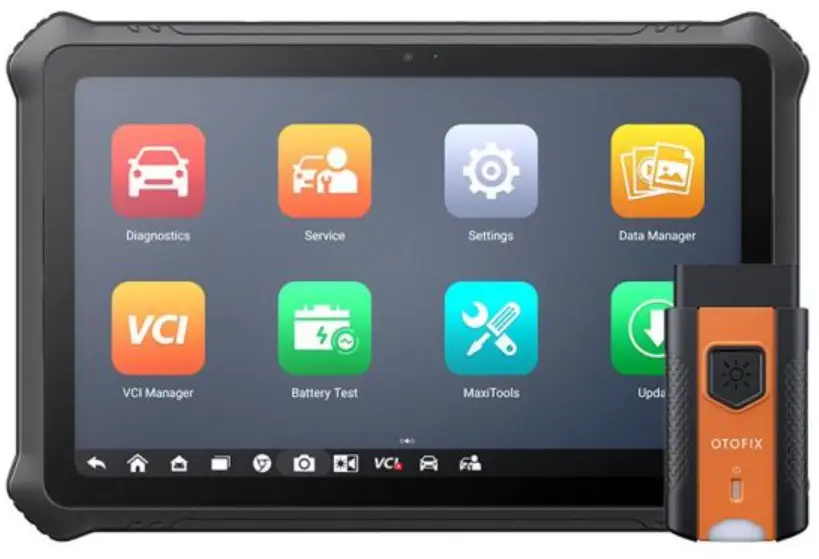

OTOFIX D1 Plus Diagnostic Tablet
Thank you for purchasing OTOFIX D1 Plus diagnostic tool. This tool is manufactured to a high standard and will provide years of trouble-free performance when used in accordance tothese instructions and properly maintained.
Functional Description

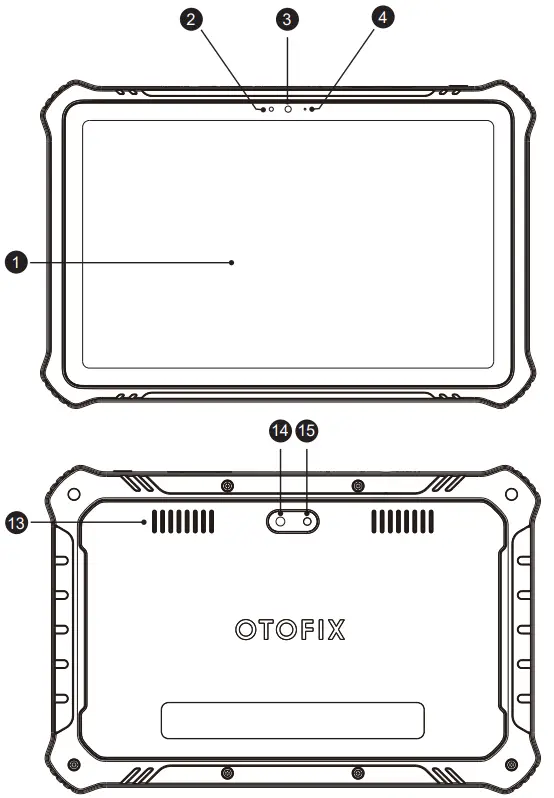

- 10.4-inch Touchscreen
- Ambient Light Sensor – detects ambient brightness
- Front Camera
- Power LED

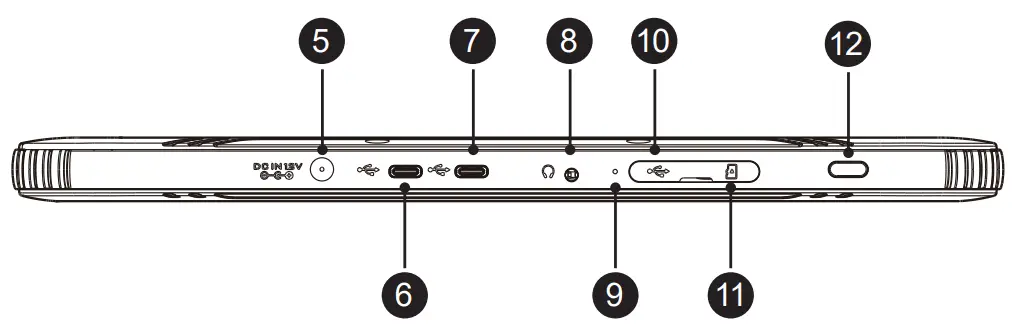

- DC Power Supply Input Port
- USB Port
- USB Port
- Headphone Jack
- Microphone
- Mini USB Port
- SD Card Slot
- Lock/Power Button – turns the device on & off with long press, or locks the screen with short press
- Speaker
- Rear Camera
- Camera Flash
OTOFIX V1

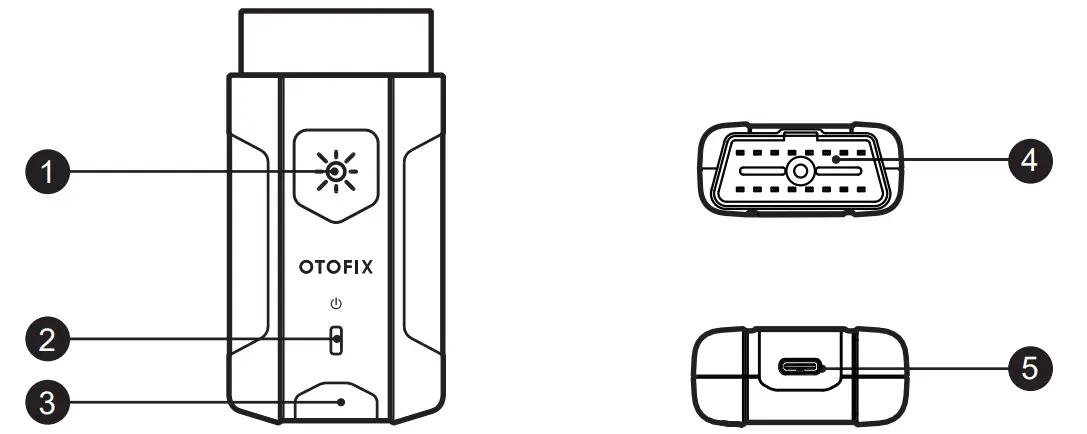

- Flashlight Button
- Power LED
- Vehicle/Connection LED
- Vehicle Data Connector (16-pin)
- USB Port
OTOFIX V1 Description
| LED | Color | Description |
| Power LED | Yellow | VCI is powered on and performing self-check. |
| Green | VCI is ready for use. | |
| Flashing Red | Firmware is updating. | |
| Vehicle/Connection LED | Green |
|
| Blue |
|
Getting Started
 | IMPORTANT: Before operating or maintaining this unit, please read the Quick Reference Guide and User Manual carefully, paying extra attention to the safety warnings and precautions. Failure to use this unit correctly may cause damage and/or personal injury and will void the product warranty |

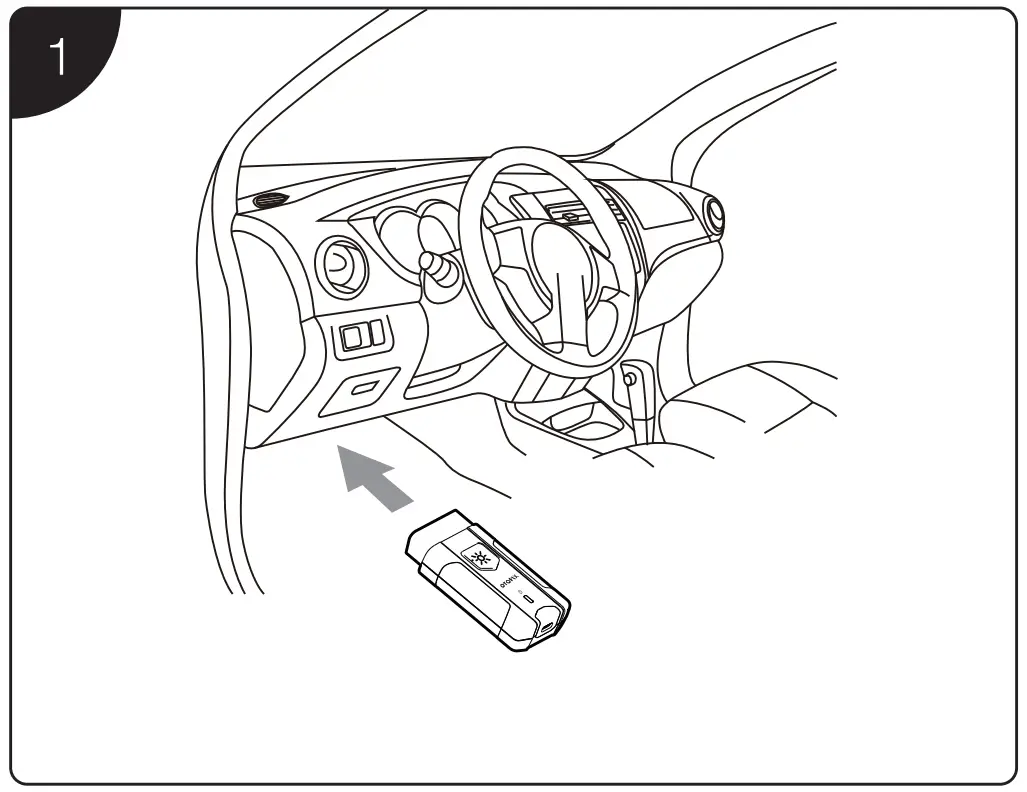

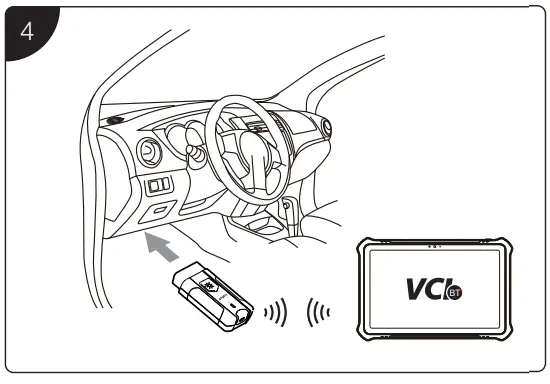

- Insert the V1 into the OBDII port, which is generally located under the vehicle dashboard.

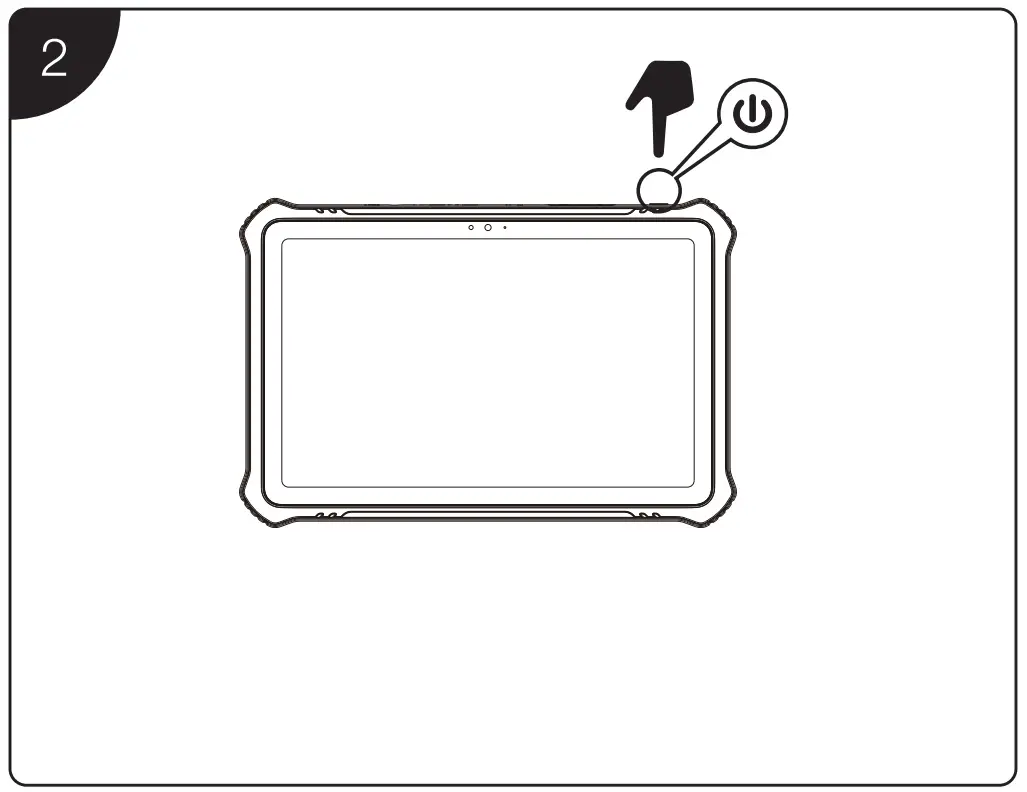

- Long press the Lock/Power button to power up the diagnostic tablet. Ensure the tablet has a charged battery or is connected to the DC power supply.

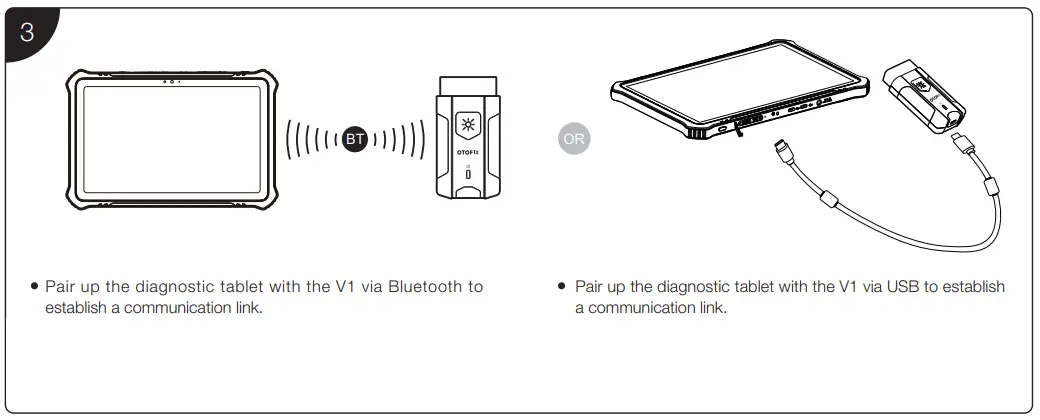

NOTE: The diagnostic tablet and the V1 are configured to automatically synchronize with each other on the initial use, therefore, the pair up is not required.
- When the V1 is properly connected to the vehicle and the diagnostic tablet, the VCI status button at the bottom bar on the screen displays a green badge. This indicates your diagnostic tablet is ready to start vehicle diagnosis.
