Whirlpool W7x 92o Ox H Freestanding Refrigerator With Freezer User Guide

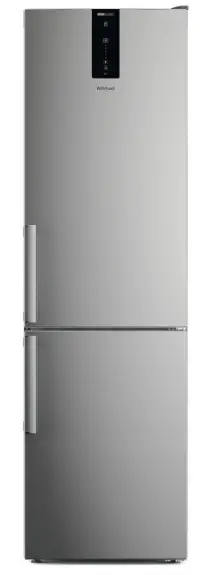

Whirlpool W7X 92O OX H Freestanding Refrigerator with Freezer

Product Information

The product is a refrigerator with both fridge and freezer compartments. The ideal temperature settings for the appliance are  preset from the factory. The control panel includes an on/off button, fridge temperature indicator, fridge temperature setting,  fast freeze indicator light, and fast freeze button. The fridge compartment has a light source of energy efficiency class F. The product has different storage zones for storing different types of food and beverages, including a temperate zone, cool zone, coolest area, fruit & vegetable drawer, freezer drawers, and freezing zone drawer. The product also includes a foldable shelf and humidity control.

Product Usage Instructions

1. Before using the appliance, carefully read the safety instructions.
2. After installation, wait at least two hours before connecting the appliance to the power supply.
3. Press the on/off button for 2 seconds to turn on the whole product (both fridge and freezer compartments). The last set value is indicated on the interface. Press this button to turn off the device.
4. After turning the appliance on, wait 4-6 hours for it to reach the correct food storage temperature.
5. The fridge temperature indicator light shows the temperature of the fridge compartment.
6. If the LED light system does not work, contact the service toreplace it.
7. The fast freeze indicator light illuminates when the fast freeze button is pressed. Do not press the fast freeze button repeatedly as it may cause the temperature of the appliance to increase to values that cannot guarantee safe storage of food.
8. Store fresh food and beverages in the suggested storage
   zones:
   • Temperate zone: suggested for storage of tropical fruit, cans, drinks, eggs, sauces, pickles, butter, jam.
   • Cool zone: suggested for the storage of cheese, milk, daily food, delicatessen, yogurt.
   • Coolest area: suggested for storage of cold cuts, desserts, meat and fish. The drawer is available only on certain models.
   • Fruit & vegetable drawer: use to store fruits and vegetables.
   • Freezer drawers: use to store frozen food. One drawer is available in models lower than 1.7m.
   • Freezing zone drawer (max cool zone): use to freeze fresh/cooked food.
9. The refrigerator compartment defrosts automatically. Droplets of water on the rear wall inside the refrigerator compartment indicate that the automatic defrost phase is in progress. The defrost water is automatically run into a drain hole and collected in a container, where it evaporates.
10. The foldable shelf can be used in three different ways: full-depth, half-depth, or flipped up. Use it to create space for tall or bulky items.
11. Use the humidity control to adjust the humidity level inside the appliance. Turn on the humidity regulator (position B) if you want to store food in a less humid environment, like fruit, or turn it off (position A) if you want to store food in a more humid environment, like vegetables.

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT In order to receive a more complete assistance, please register your product on www . whirlpool . eu/ register
Before using the appliance carefully read the Safety Instruction.

FIRST TIME USE

After installation, wait at least two hours before connecting the appliance to the power supply. Once connected, it will start working automatically. The ideal temperature settings are preset from the factory.
After turning the appliance on, wait 4-6 hours for it to reach the correct food storage temperature.

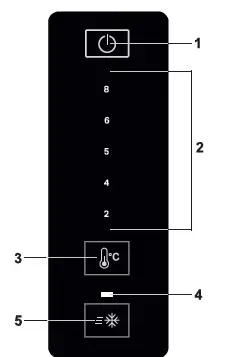

CONTROL PANEL

1. On/off
2. Fridge temperature indicator
3. Fridge temperature setting
4. Fast freeze indicator light
5. Fast freeze button (rapid freezing)

ON/OFF
The whole product (both fridge and freezer compartments) can be turned on by pressing this button for 2 seconds. The last set value is indicated on the interface. Press this button to turn off the device.

FRIDGE TEMPERATURE INDICATOR LIGHT
It shows the temperature of the fridge compartment.

FRIDGE TEMPERATURE SETTING
It allows you to change the fridge temperature value, in a cyclical way; it also confirms the selected temperature on the interface. Recommended setting for the refrigerator compartment is +4°C.

FAST FREEZE INDICATOR LIGHT
lluminates when the Fast freeze button is pressed.

FAST FREEZE FUNCTION
This function is recommended for freezing fresh food. Fresh food should be frozen as quickly as possible, for the best possible preservation and for keeping its nutritional value. Press the Fast freeze button when you need to freeze fresh food; the Fast freeze indicator will come on.
We recommend you press the Fast freeze button 24 hours before putting the food in, in order to prepare the freezer compartment for the best possible freezing conditions. We recommend you use the bottom drawer to maximize the freezing capacity.
The Fast freeze function is automatically deactivated after 48 hours, or you can disable it manually by pressing the Fast freeze button.
* Available only on certain models

LED LIGHT
This product contains a light source of energy efficiency class F.
If the LED light system does not work, please contact the Service to replace it.
Important: The refrigerator compartment light switches on when the refrigerator door is opened. If the door is kept open for more than 8 minutes the light will be automatically switched off.

6th SENSE
This function automatically works to ensure the optimal conditions to preserve the stored food. The “6th Sense” function is automatically activated when:

• a large amount of food is loaded into the refrigerator
• the refrigerator door is left open for a long time
• a prolonged power failure takes place, causing the internal temperature of the appliance to increase to values that cannot guarantee safe storage of food.

* The number and type of door balconies depends on the model

REFRIGERATION COMPARTMENT
Refrigerator compartment defrosting is completely automatic. Droplets of water on the rear wall inside the refrigerator compartment indicate that the automatic defrost phase is in progress.
The defrost water is automatically run into a drain hole and collected in a container, where it evaporates.

Fresh Box 0°C drawer
The Fresh Box 0°C it is a drawer (b) ideal to store meat and fish. By decreasing/increasing the fridge temperature, you impact the Fresh Box 0°C compartment temperature as well. Keep in mind that this compartment is a mechanical feature operating all the time and it cannot be switched off.

Humidity Control
Turn on the humidity regulator (position B) if you want to store food in a less humid environment, like fruit, or turn it off (position A) if you want to store food in a more humid environment, like vegetables.

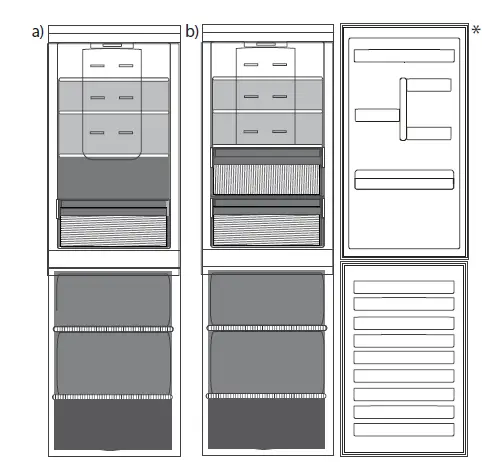

Legend

• TEMPERATE ZONE
  Suggested for storage of tropical fruit, cans, drinks, eggs, sauces, pickles, butter, jam
• COOL ZONE
  Suggested for the storage of cheese, milk, daily food, delicatessen, yogurt
• COOLEST AREA
  • Suggested for storage of cold cuts, desserts, meat and fish
  • Suggested for storage of meat and fish.
    The drawer available only on certain model
• FRUIT & VEGETABLE DRAWER
• FREEZER DRAWERS (One drawer in models lower than 1,7m)
• FREEZING ZONE DRAWER (Max cool zone) Suggested to freeze fresh / cooked food

Foldable shelf*
This shelf can be used in three different ways:

1. Full-depth, to use the entire surface.

2. Half-depth, to use the rear part and at the same time create space for taller items (like bottles and jugs) on the shelf below. To adjust the shelf to half-depth, slightly raise the front part then pull it in.

3. Flipped up if you need to make space for tall or bulky items on the shelf below. To flip the shelf up, first adjust it to the halfway position from half-depth. Flip the shelf down to go back to using it in half-depth and full-depth.


FREEZER COMPARTMENT
Total No Frost freezers provide chilled air circulation around the storage areas, and prevent the formation of ice, thereby completely eliminating the need for defrosting.
Frozen items don’t stick to the walls, labeling stays legible and storage space remains neat and clear.
The freezer compartment allows for the storage of frozen food and the freezing of fresh food.
The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Arrange the fresh food in the freezing area inside the freezer compartment, leaving enough space around it to allow air to circulate freely. Avoid allowing fresh food to come into direct contact with frozen food. Load limits are determined by baskets, flaps, drawers, shelves etc..
Make sure that these components can still close easily after loading. The freezing zone’s drawer/compartment is shown in the picture above. To optimize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers and the food can be placed directly on the bottom of the compartment. To avoid food waste, please refer to the recommended setting and storage found in the online user manual.

Ice cubes
Fill 2/3 of the ice tray with water and place it back in the freezer compartment. Do not use sharp or pointed objects to remove the ice.

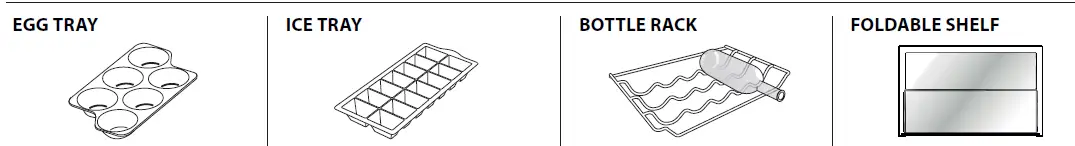

ACCESSORIES

GENERAL INFORMATION

The drawers, baskets, and shelves should be kept in their current position unless otherwise specified in this quick guide.
The light system inside the refrigerator compartment uses LED lights, which provide better lighting and use less energy than traditional bulbs. Doors and lids of the refrigerator should be removed before disposal, to avoid children or animals getting trapped inside.

TROUBLESHOOTING

ALARM TABLE

* Available only on certain models
Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Visiting our website docs . whirlpool . eu and parts – selfservice . whirlpool . com
• Using QR Code

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product’s identification plate.

The model information can be retrieved using the QR-Code indicated on the energy label. The label also includes the model identifier that can be used to consult the https://eprel.ec.europa.eu database portal.
