VULCAN logoQUICK START UP GUIDE
Combi Fast PAD

490059 Combi FastPAD

ON / OFF

VULCAN 490059 Combi FastPAD - SwitchSwitch on: Push the coder 1 second
Switch off: Push the coder 3 seconds
Settings / adjustments: rotate the coder
Settings validation: One push on the coder

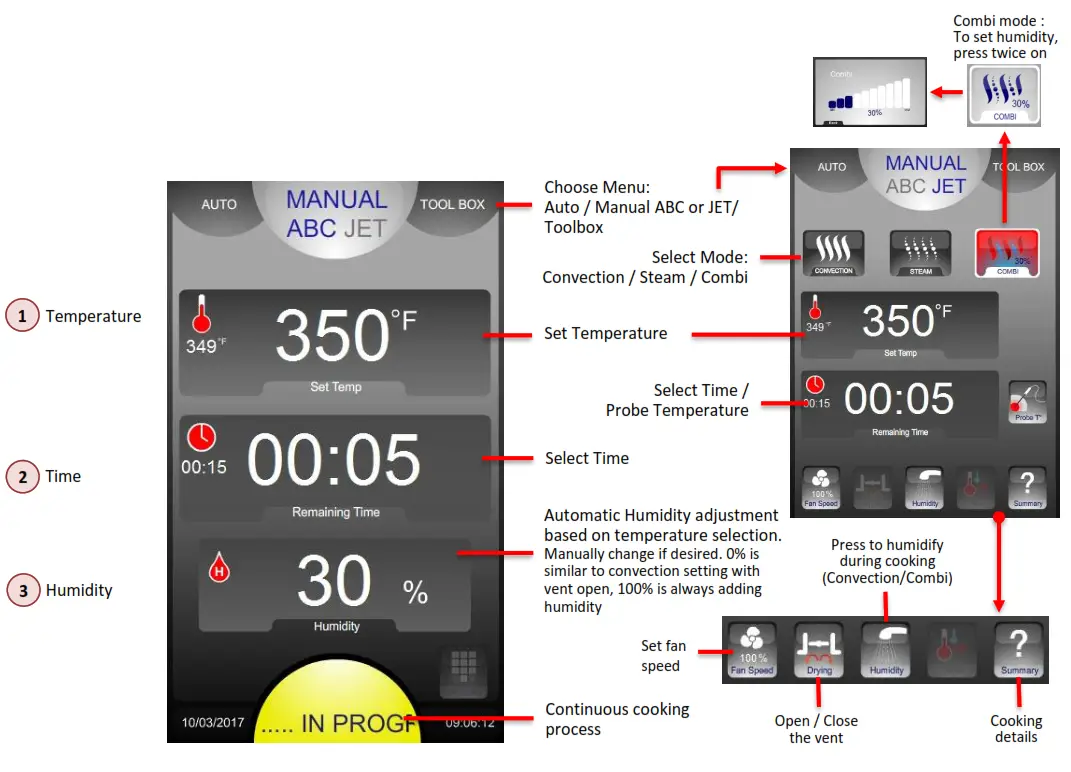

MANUAL MODE

VULCAN 490059 Combi FastPAD - Temperature

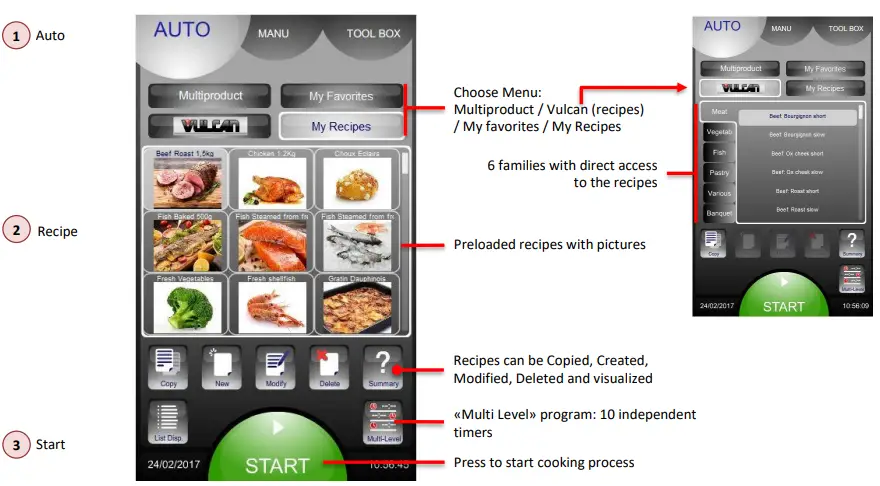

AUTO MODE

VULCAN 490059 Combi FastPAD - Temperature1

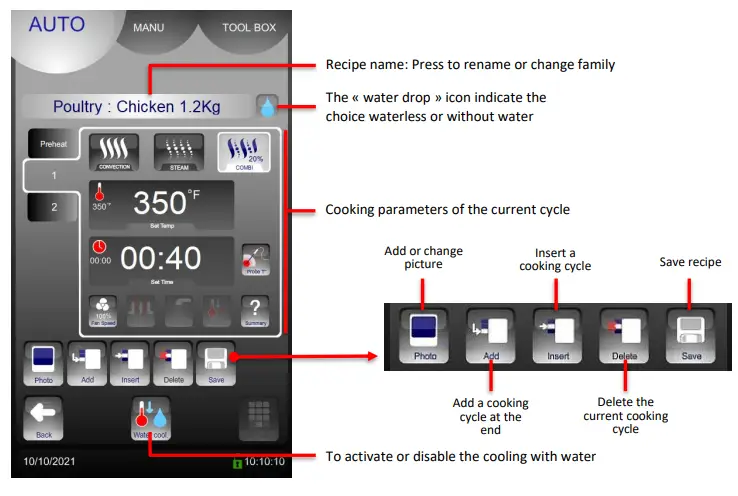

RECIPE DETAIL – AUTO MODE

VULCAN 490059 Combi FastPAD - RECIPE DETAIL

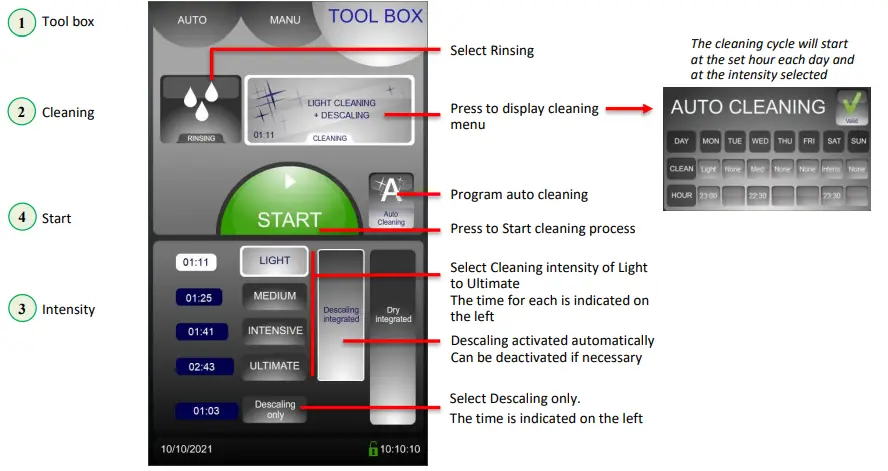

CLEANING / RINSING

CAUTION: Never use descaling product into the automatic cleaning system.

VULCAN 490059 Combi FastPAD - Tool box

Note: refer to manual for cleaning and descaling product type to use.

VULCAN logo12/2021 Code 490059 / F49544
