Seville Classics Web562 Commmercial-grade 5-tier Nsf Steel Wire Shelving Instruction Manual

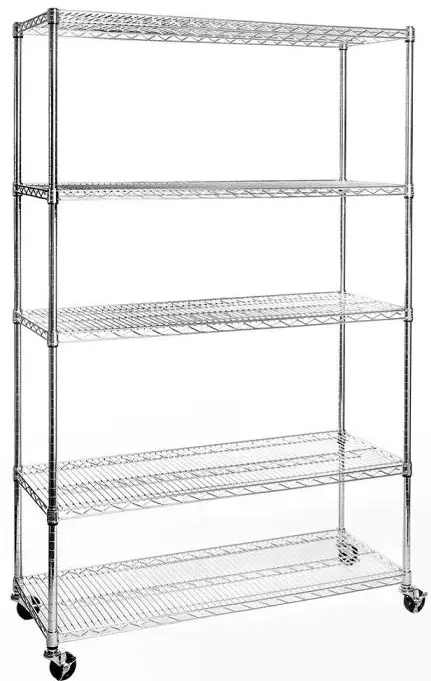

Seville Classics WEB562 Commmercial-Grade 5-Tier NSF Steel Wire Shelving Instruction Manual

Model #: WEB562
Thank you for choosing Seville Classics! We hope that you enjoy your commercial-grade steel wire shelving! Please read through this guide for parts list, assembly instructions, frequently asked questions and further contact information.

Additional parts and accessories are available for purchase online at: www.SevilleClassics.com

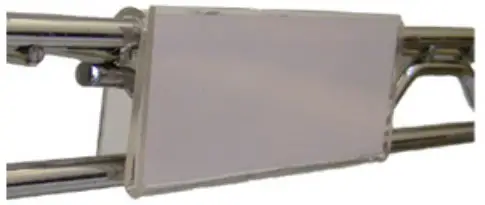

• Shelf Labels

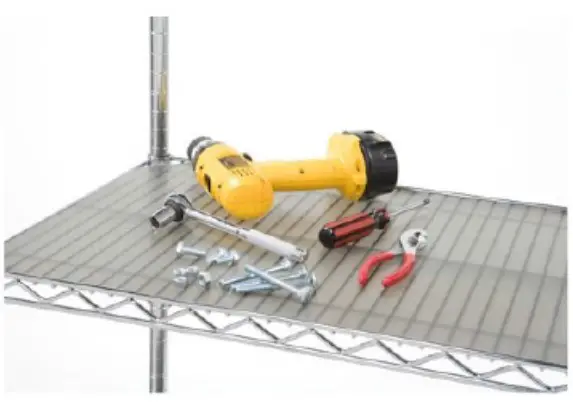

• Shelving Liners 48″ x 18″ (2-Pack) Model No.: WEB047

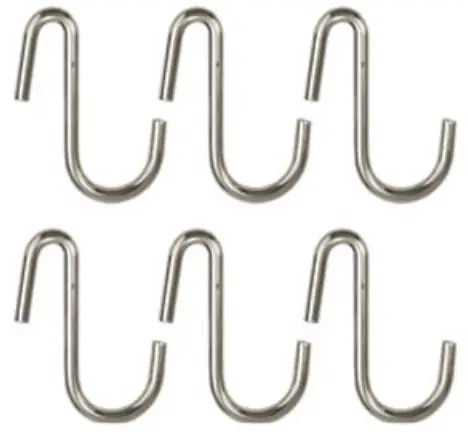

• S-Hook (6-pack) Model No.: WEB232

• UltraDurable Shelf 48″ x 18″ Model No.: SHE18476


View assembly online here: https://www.youtube.com/watch?v=N6iRVVqBG

Caution

• Place heavier items on the lower shelves and lighter ones on the top.
• Do notstand or climb on the shelving system.
• Do not drop heavy items on the system.
• Do not move the system while loaded.

Specificañons

Assembled Dimensions: 48″ W x 18″ D x 72″ H (75″ H on wheels), 1″ Pole Diameter

Parts List

Please make sure you have all the parts on this list.

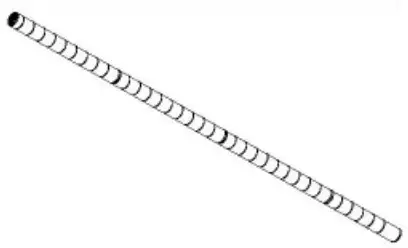

A. Bottom poles (4) (Threaded end)

B. Top poles (4) (Plastic cap on end)

C. Connectors (4) (May be attached to poles)

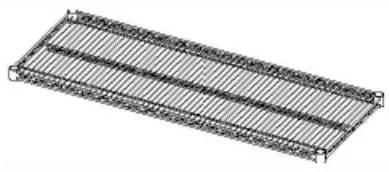

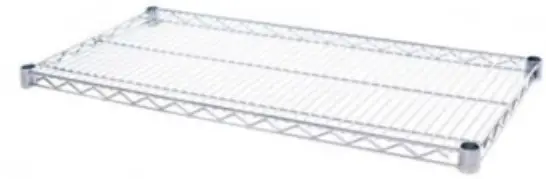

D. Shelves (5)

E. Slip sleeves (20)

F. Leveling feet (4)

G. Wheels (2)

H. Locking wheels (2)

Assembly Instructions

STEP 1.

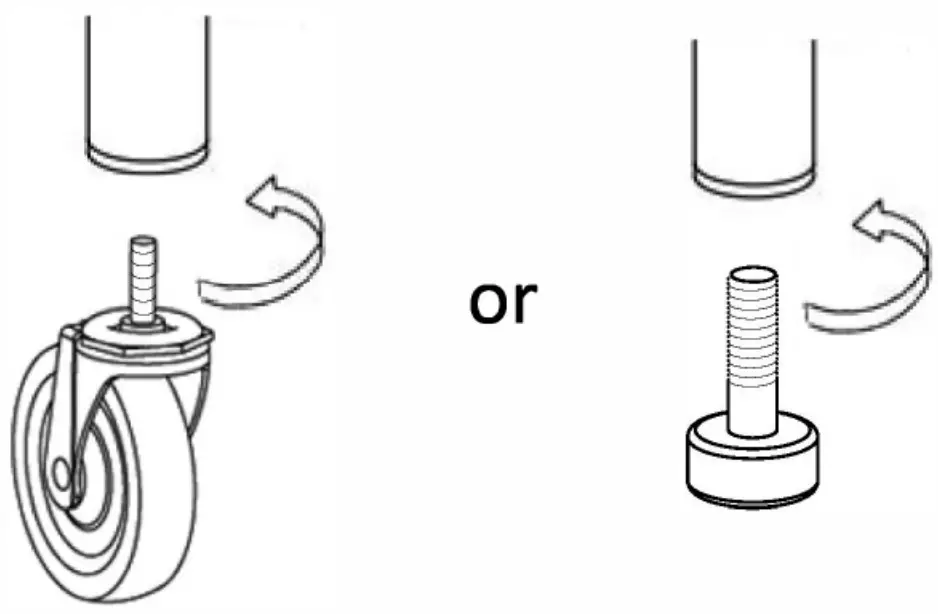

Screw LEVELING FEET (F) or WHEELS (G, H) into base of bottom poles. OF Repeat for all bottom poles.

STEP 2.

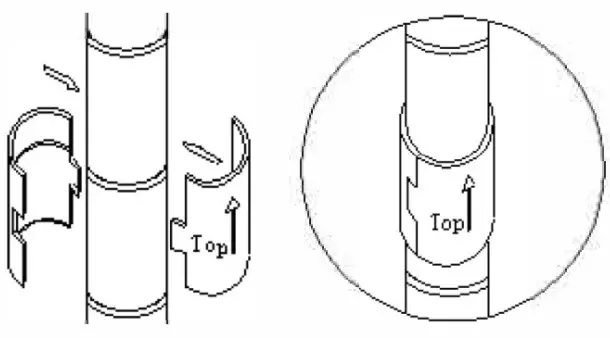

Snap SLIP SLEEVES (E) around the grooves on BOTTOM POLES (A) for your lowest shelf.

TIP! Count the number of grooves from the bottom of the pole to keep the height consistent.

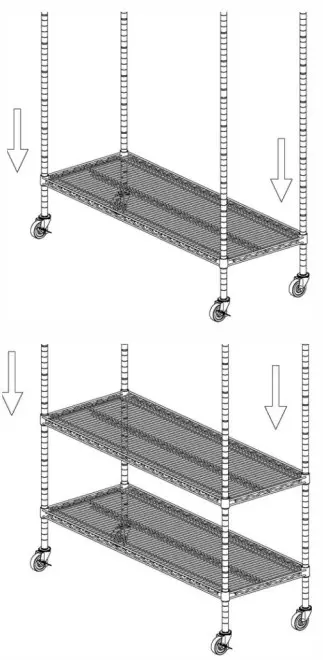

STEP 3.
Fit SHELF (D) over the top of the 4 poles and over SLIP SLEEVES (E).

Repeat STEPS 2-3 for next shelf.

TIP! If necessary, lightly tap shelves into place with a rubber mallet.

STEP 4.
If you’re missing parts, contact us for replacements at (800) 323-5565 orsend an email to [email protected] Assembly Instructions Screw CONNECTORS (C) into top of BOTTOM POLES (A)

Screw TOP POLES (B) to CONNECTORS (C).

TIP! Connectors may be pre-installed.

STEP 5.
Repeat STEPS 2-3 for remaining shelves.

Congratulations!

Enjoy your fully assembled shelving unit.

Customer Service Informat1on
