Extended Outer Half Shaft Installation Instructions
Covers Part #8995, 8995A, 8995G, 8995R, 8995T, 8995X

TRAXXAS KC2897-R02 Wide Maxx Extended Outer Half Shaft 1

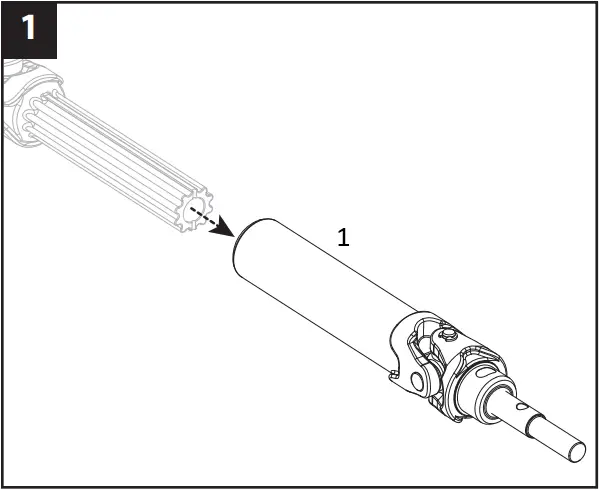

  1. Remove outer half shaft

TRAXXAS KC2897-R02 Wide Maxx Extended Outer Half Shaft 2

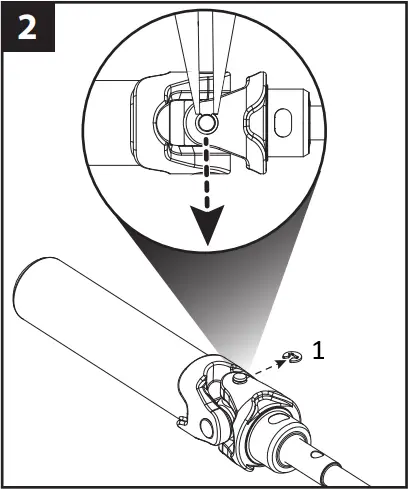

  1. Remove E-clip

TRAXXAS KC2897-R02 Wide Maxx Extended Outer Half Shaft 3

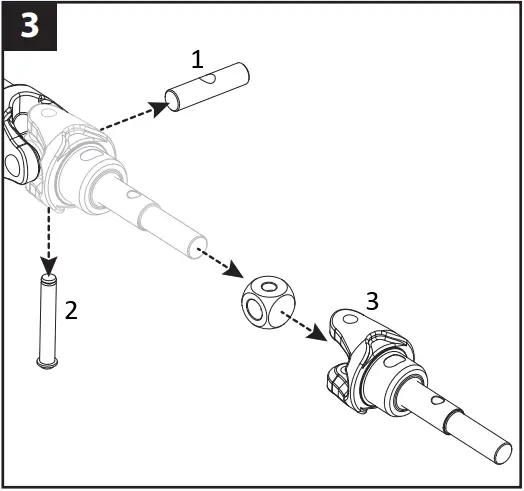

  1. Remove 4.5mm Cross Pin
  2. Remove 3mm Cross Pin
  3. Remove Stub Axle Assembly

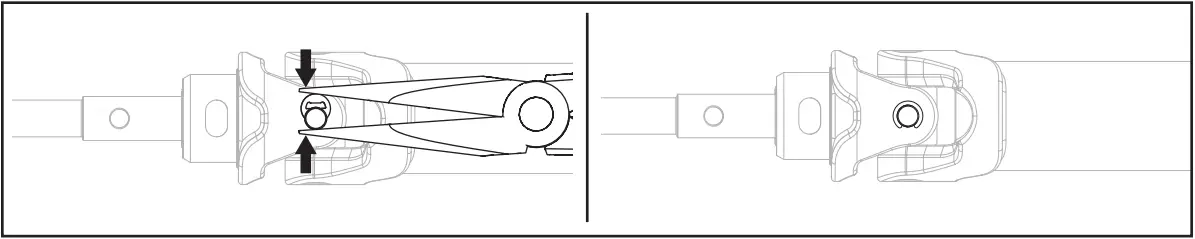

Note: To install the extended outer half shafts, follow the steps in reverse order. Ensure the e-clip is pressed straight onto the end of the 3mm cross pin.
